Ritchey P22

BensterSD

Dirt Disciple
Cheers everyone! :xmas-cool:

As a weekend bike hack-mechanic, I initially thought I was way over my head on this beauty... But research and very helpful assistance/parts sourcing from a few MTBR friends had the P22 finished within a few months of ownership. Although I have had this bike completed for over a year now, there were some minor details I wasn't completely satisfied with. The Ritchey Force black stem I intitially acquired was functionally OK, but visually looked like crap. The black Ritchey Force bar just did not seem quite right as well. The Logic cranks had deep scratches on the arms and the logos were practically gone. Even the Ritchey Vector Ti Saddle, although comfortable and period correct, never seemed visually "right".

So, fast forward a year and some proper changes have been made. New silver Ritchey Force 140 mm stem (rather than the initial 130mm), silver Ritchey Prolite bars and polished the Logic cranks (lot's of work there... :shock:). Also, added the proverbial Flite Ti saddle and now I think I finally have this rig dialed. After a few decent rides and some tweaking here and there, I am also happy to say I believe the "fit" is where it needs to be. She rides amazingly well and I feel extremely lucky to have such an iconic ride!

Build Specs:

Make: Ritchey
Model: P-22
Year: 1995
Size: 19"
Color: Dark Green Metallic
Frame Construction: TIG welded
Fork Type: unicrown
Front Derailleur: Shimano XT m732
Rear Derailleur: Shimano XT m735
Rear Cogs: Shimano XT 7-speed
Hubs: Shimano XT m730
Rims: Sun CR16 (very soon to be Ritchey)
Brakes: Dia Compe 987
Levers: Logic
Shifters: Shimano XT m732
Cranks: Ritchey Logic
Bottom Bracket: Shimano UN-71
Pedals: Shimano SPD
Headset: Chris King threaded
Bar: Ritchey Pro Lite
Stem: Ritchey Force
Seat Post: Ritchey Pro WCS
Saddle: Flite Ti

Weight: Dunno, seems light


Attachments

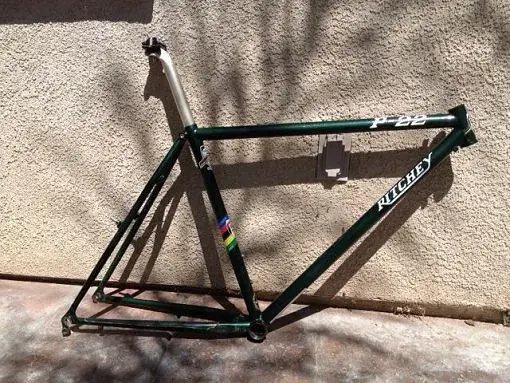

  • P22 frame.webp
    P22 frame.webp
    65.2 KB · Views: 768

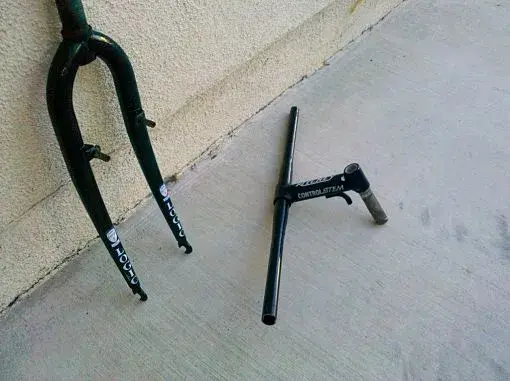

  • P22 Fork.webp
    P22 Fork.webp
    27.5 KB · Views: 768

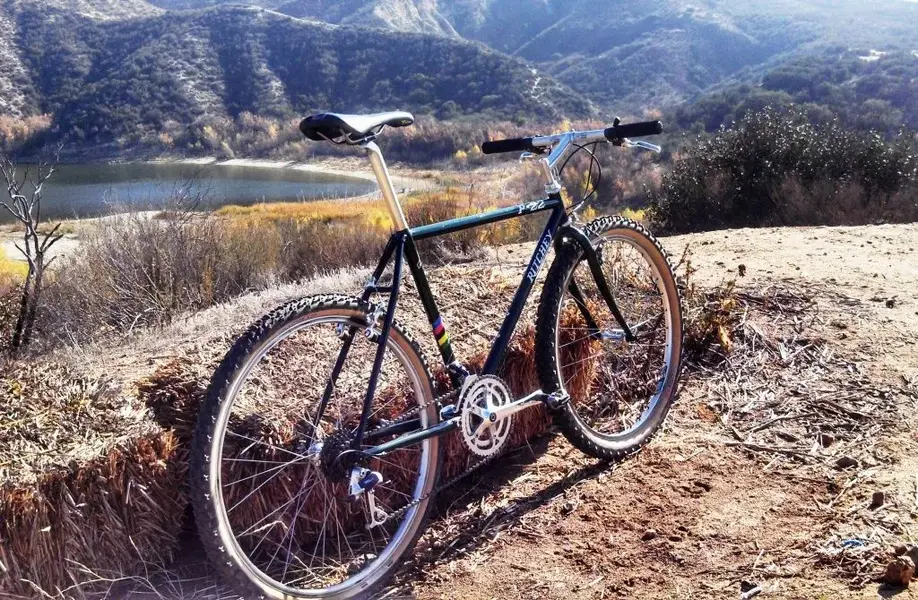

  • P22 Build 1.webp
    P22 Build 1.webp
    31.5 KB · Views: 769

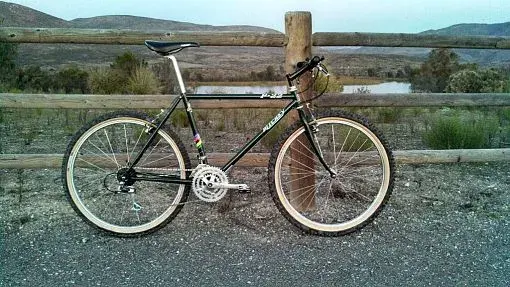

  • P22 Build 2.webp
    P22 Build 2.webp
    37.7 KB · Views: 769

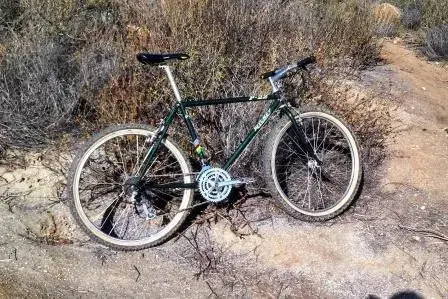

  • P22 First draft.webp
    P22 First draft.webp
    47.1 KB · Views: 769
  • IMG_20131221_103239_539 (2).webp
    IMG_20131221_103239_539 (2).webp
    50 KB · Views: 768

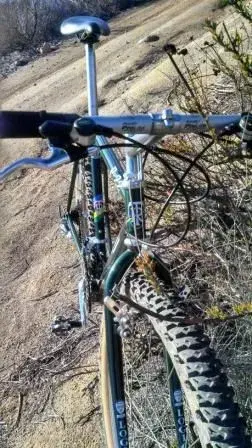

  • P22 Front 12-23-13 2.webp
    P22 Front 12-23-13 2.webp
    39.3 KB · Views: 768
Lovely steed there! Agree 100 percent on the Ritchey saddle though, they are painfully uncomfortable having tried many different models, the early Avocet racing saddles that they used to favour, are far nicer.
Don't see enough Ritchey's on here. Must post some pic's of mine when the Sun comes out! :xmas-cool:
