need help.. cantilever holes at the opposite side....

[Linseneintopf]

hi guys...

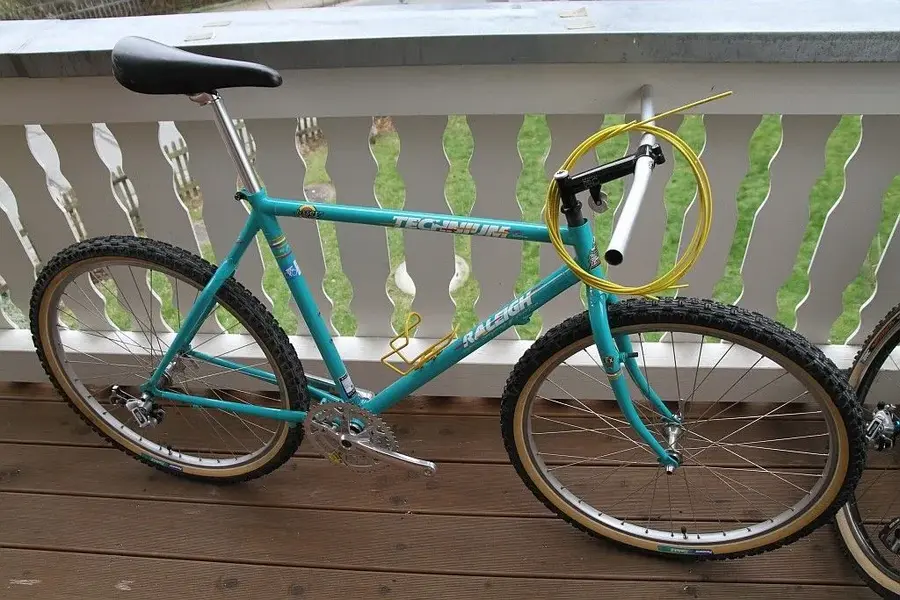

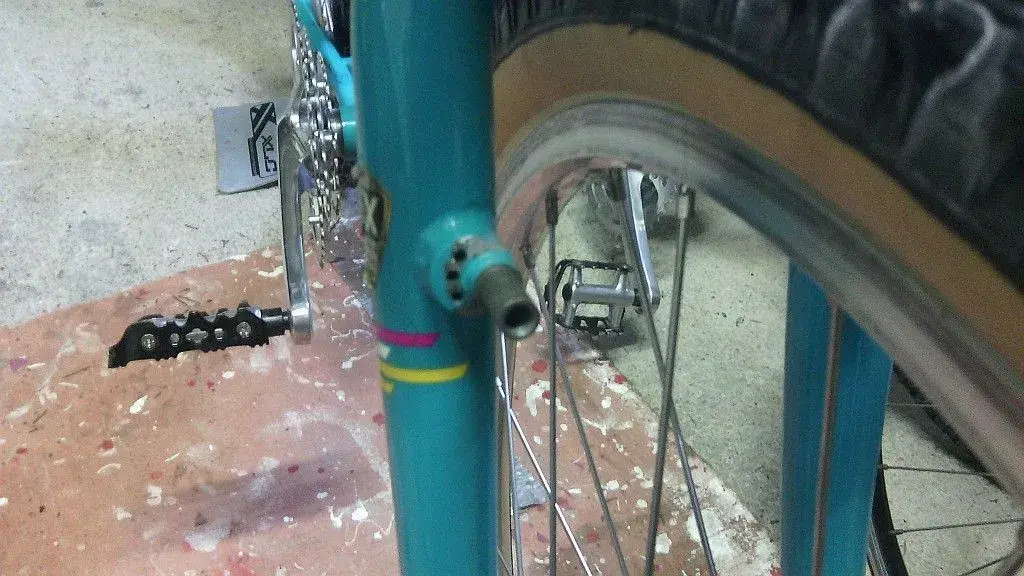

wanted to finish my 1988 raleigh technium but can´t put on the front cantilever brakes cause the holes where the springs get in are on the opposite side... tried to change the feathers but it also don´t works.... has anybody a bike which has the holes on the opposite (outside).. sorry for my bad english.. hope you understand what my problem is... beside the speech



[Anonymous]

Re:

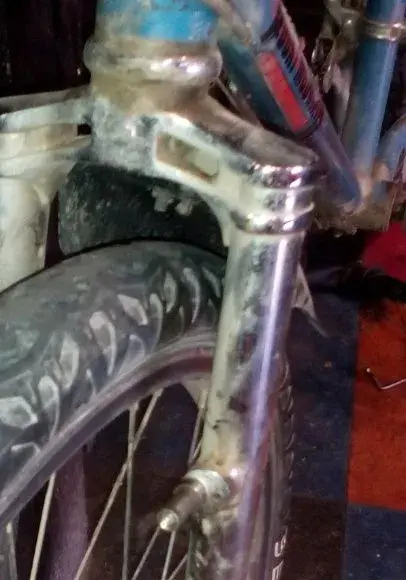

This picture may help. Hard to find those brakes. I would suggest brakes that do use those holes. Other members may have the correct brakes or suggestions.



[KermitGKona88]

Re:

Yes indeed it is a conundrum you can get brakes that don't use the holes such as some Dia-compe and Suntour models that have a separate adjusting nut on the rear :?



[Linseneintopf]

do you know which model of suntour or dia compe?? Raleigh delivered the bike with XT I think, so shimano cantilevers...



[KermitGKona88]

Re:

Dia-compe 986/7 and Suntour XC pro/expert off the top of my head. Yes it was Shimano equipped but seems something very weird going on with it to me



[Nader]

Re:

The easiest way is to use these parts

..so you can use any Cantis.



[jimi911]

Avid tri aligns will work to. They don't use the rear holes for tension. Ii would assume a lot of the clones would do the same.



[Anonymous]

Re:

Another suggestion. AVID with the springs in the front of the arms. There are several other cheaper brands.
Good luck.



[dyna-ti]

The plates that fit over like the bosses like marzocchi, use might be utilized :? The square section on the boss holds it in normally. Might be able to turn them around to face inward :?



[mrdryskull]

Re:

Curve brakes would also work.
