Marzocchi Bomber mudguard mount

[Pionir]

I've got a Marzocchi Bomber fork and I'd like to mount mudguards. I've got pclips for the bottom of the fork, but unlike my Mag21 there's no mount at the crown.

There is a little adapter for the cable if using cantilever brakes - has anyone come across an adapter that might fit it?

The only other alternative I can think of is to get a part machined to bolt in place of the adapter



[eshew]

If you're looking for the canti adapter there are some on ebay. Not original, reproductions but the real ones sell for quite a bit.

https://www.ebay.com/itm/Cantilever-han ... SwHBJdhHs6

Once you run canti's though it makes mud guards near impossible. At least any mud guard that protrudes beyond the braces.

If you're asking if there is a bracket to mount to those holes that will fit a fender, the answer is no.

I've ran this before & it works. Has a plug that fits the bottom of the steerer tube to hold the fender. Won't work with Canti's though.
https://www.sks-germany.com/en/products/shockboard/



[Pionir]

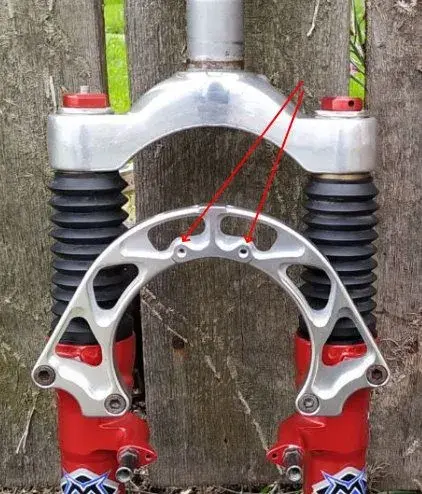

Thanks. I actually have the canti adapter but I wondering if there's anything I could fit to it (or the two holes) that would give me the mudguard mount point.

I really want to use my Bluemels mudguards though and mounting to the steerer would only work if that's the only point of contact with the fork

I think it might have to be a couple of zip ties then unless I can find someone to cut and drill a bit of metal as I don't have facilities to do it myself.



[jimo746]

Re:

Cable ties may be your best/only fairly simple option.
They are actually surprisingly sturdy and long lasting (have had a bottle cage held in place with cable ties for over a year).

Otherwise you are looking at makjng/bodgineering something from thin sheet metal, which could be done fairly easily if you have the tools.



[eshew]

I think you should be able to fab something up. Doesn't have to be crazy.

Wonder if you could get some heat moldable thick kydex & mold it to fit the brace & fender. Should be easier to fit than steel or aluminum. If you need to more rigid double up & glue or rivet together.

Or perhaps something like this...
https://www.rei.com/product/174762/axio ... lsrc=aw.ds



[Pionir]

Re:

I've already got a set of those but pclips work just as well. In fact one of the dropout teeth of my Paris Roubaix Road forks broke off after using them so I have a feeling they put uneven stresses on the "lawyer's lip"

It's the top end I'm looking at. I might try your idea. Cheers!



[Pionir]

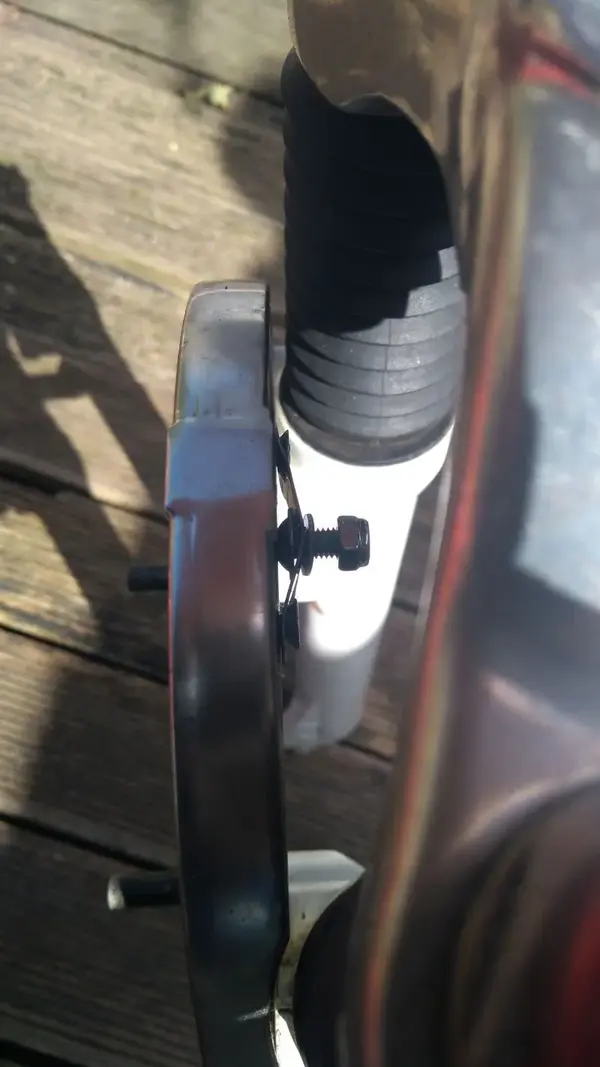

In the end I just cut and drilled a thin bit of metal I had in the toolbox - I think it was from an old light bracket



[Retro Spud]

bit of a bush fix - but fair play its a good one and done very sympathetically and totally reversible

10/10
