Kästle SL-D 1000 (2003)

[mattiamerca]

this spring i've found this "old" frame in a great conditions, and, thinking about my father's old aluminum mtb, I've decided to start a new project to make him a present...
every thing started from the frame and from the availability of an NOS RS Tora 100mm.

I've decided to assembly it with the less money as possible, ensuring a great taste of reliability, with the 3x9 system that he normally use, and with some components that i've dismissed from my other bike during the last decade...

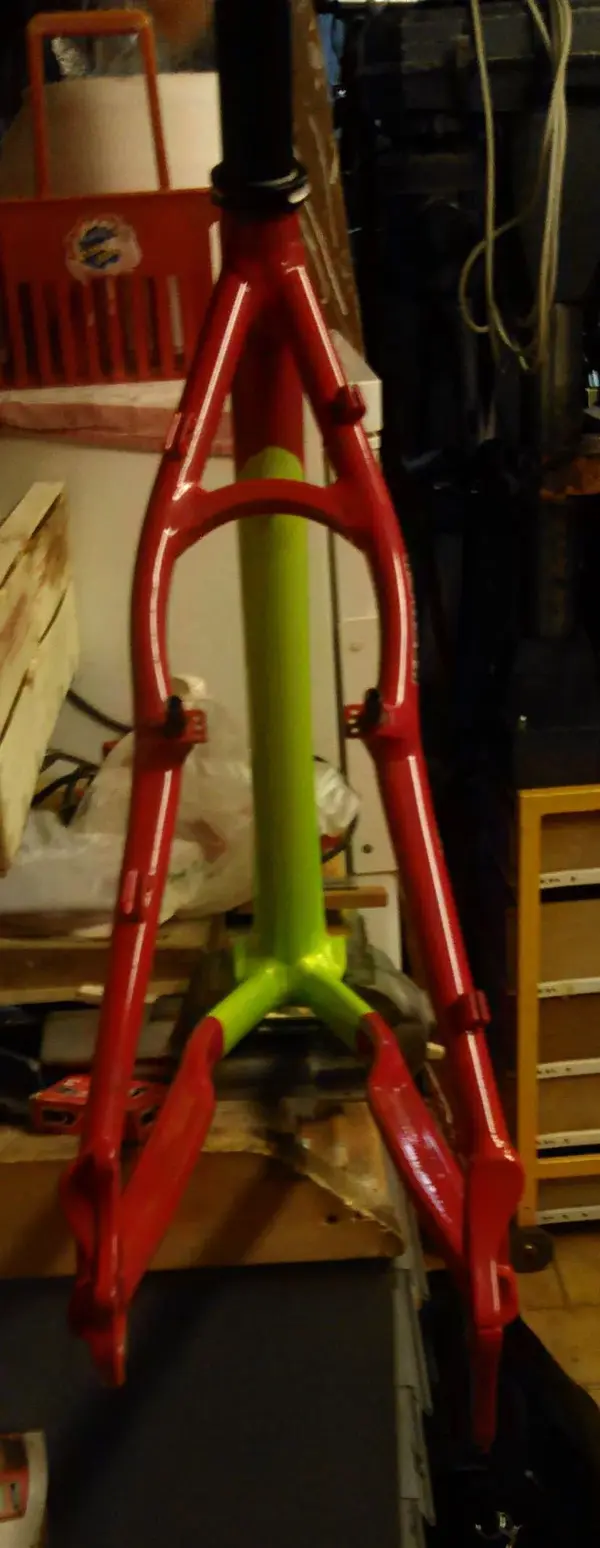

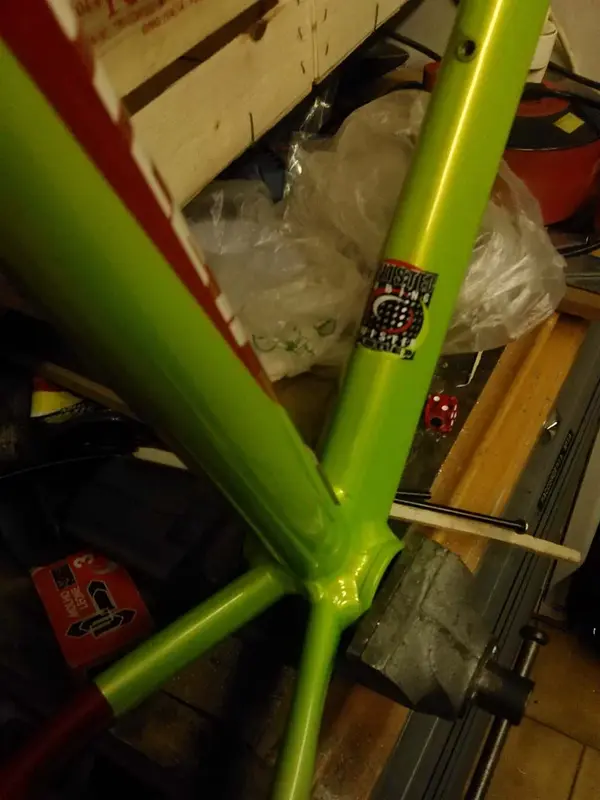

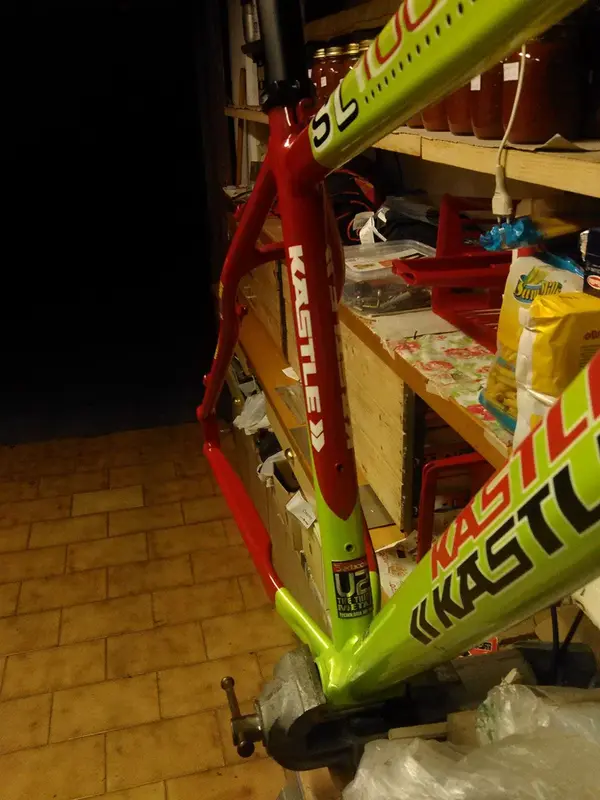

this is the frame:
it's very very light, it's so damn 90's xc-race oriented, and it's a 18", so i can rode it sometimes



[mattiamerca]

this one will be the set-up:

Frame: Kastle SL1000D in 18"
Fork: RockShox Tora 318 Coil 100mm Lock-out

Ritchey Comp Flat640mm x 31.8mm Bars (white)
Truvativ Team 130mm 31.8mm Stem
ProGrip Grips
Magura Louise Brakes (with Shimano SLX 160mm center-lock disc-rotors)
Sram Attack 3x9 Shifter

Ritchey integrated x 1,1/8" Headset
BBB Seatclamp
BBB SkyScraper 32.0mm x 400mm Seatpost
SanMarco Era K Titanium Saddle

Shimano M565 centerlock 26" x qr classic Wheels
Geax 26x2.1" Tires
Shimano Alivio M4050 40-30-22 Crank
Shimano LX 9v with Ergal Jokey wheels (blue)
Shimano SLX 11-32 9 Speed Cassette
Shimano Alivio M4050 BB
Shimano SPD m520 Pedals (Black)
Shimano XT 9v 114pcs Chain



[mattiamerca]

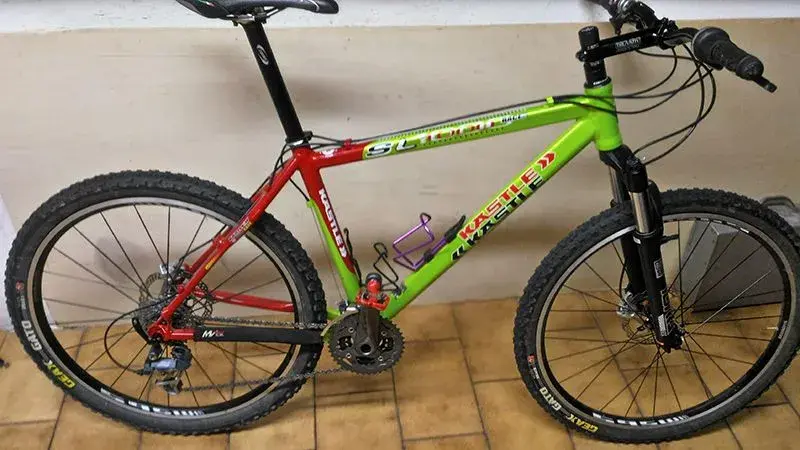

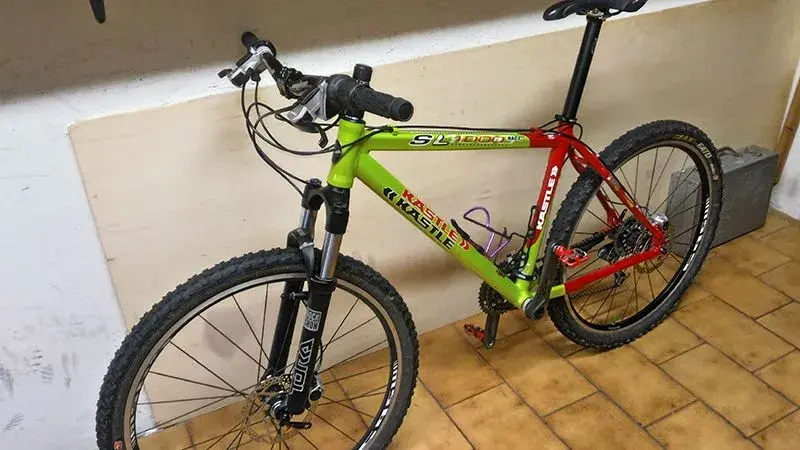

this is the bike, after some months...
