Wanted Hope bulb front qr adapter (HUB415)

[Daz95]

Hi all, as per title, anyone have a qr adapter for a front bulb hub for sale?
Thanks



[dyna-ti]

One of those hard to find things, and when you do its on Grannie Gears ebay for 50 quid

My advice is look to find an old bulb, and use it off that. I know thats what your got, but the adaptor is only available in black and you might be needing hubs that are coloured. If you can find a hub then thats maybe the only option.

If stuck, one here

Hope Front Hub 36h Q/r Thru-axle Compatible | eBay

<p>Hope Front Hub 36h. quick release; will build into a sweet wheels.</p><br /><p>Bearings are silky!</p><br /><p>Please take a close look at the images to gauge the condition for yourself. </p>

www.ebay.co.uk



[Daz95]

Thanks, i know it’s a bit of a long shot and hope don’t have these parts any more, but I think you may be right - finding a complete hub will be easier. I did see that hub on eBay and at the moment it’s prob the best option, but just thought l’d check on here first. I’m not fussed on colour at this point, my hub is black so that would be preferable



[stevet1]

Might have one, I've a few old hope adapters, all are subtly different though. Got any dimensions?



[Daz95]

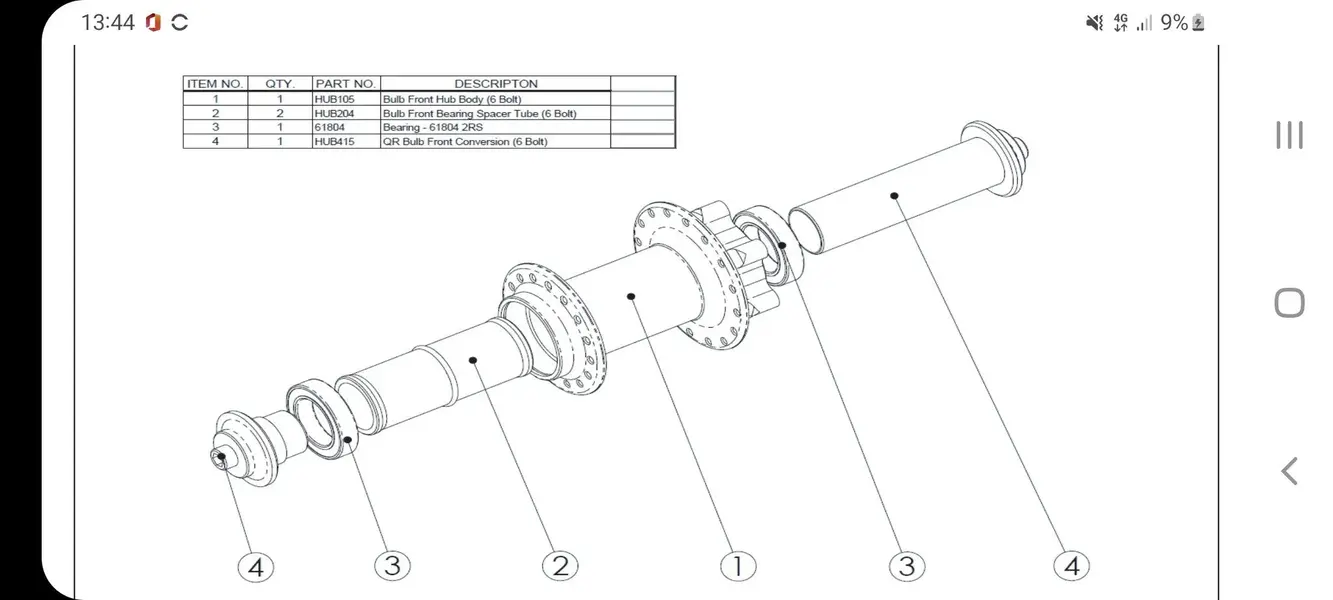

Unfortunately I don’t have dimensions, all I have is the hope exploded diagram. But think I read somewhere that one side is 13mm and the other 19mm but could be wrong?



[Luke26mhz]

I have a slightly faded red bulb front hub (with qr adapter) that I would sell.



[dyna-ti]

You should take note that there are 2 types* of QR adaptor for the bulb. The one in the exploded diagram is actually for the 5 bolt hub, the one in my ebay link is for the 6 bolt. The difference is the 6 bolt one is thicker at the disc side and the 5 bolt version is equal and identical on both sides, as in it doesnt have a fatter bit on the disc end.

*
In truth there are actually 3 versions, the rarest one is for angular bearings, is similar to the 6 bolt version, and is so rare we needn't worry about getting them mixed up.



[Daz95]

You should take note that there are 2 types* of QR adaptor for the bulb. The one in the exploded diagram is actually for the 5 bolt hub, the one in my ebay link is for the 6 bolt. The difference is the 6 bolt one is thicker at the disc side and the 5 bolt version is equal and identical on both sides, as in it doesnt have a fatter bit on the disc end.

*
In truth there are actually 3 versions, the rarest one is for angular bearings, is similar to the 6 bolt version, and is so rare we needn't worry about getting them mixed up.

Thanks for the info, that’s very useful. It looks like a 6 bolt hub in the exploded diagram which makes it very confusing, so thanks for clarifying



[dyna-ti]

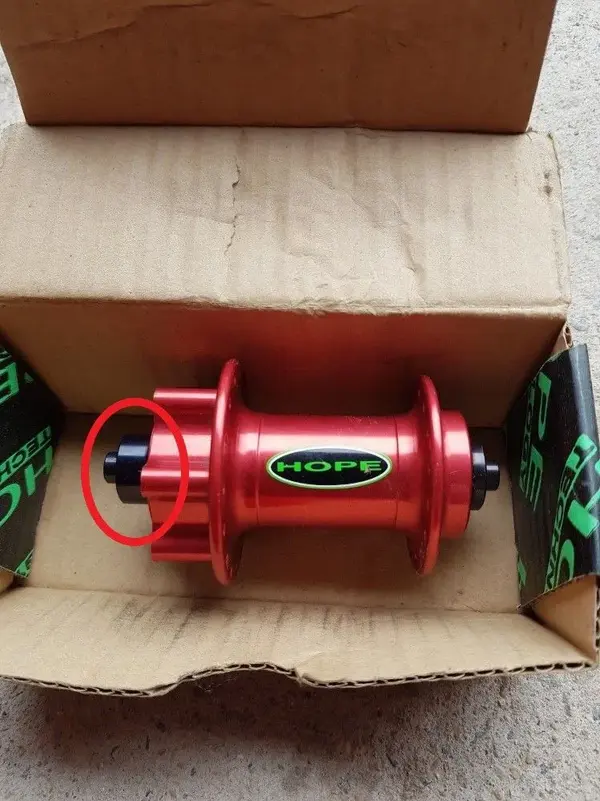

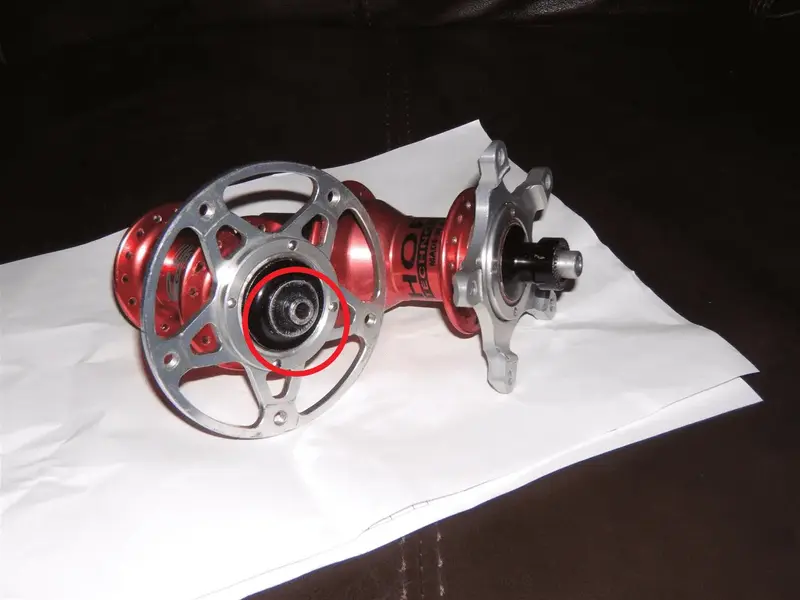

Example. On the 6 bolt you can see it sticks out, and on the 5 bolt with the spider it doesnt.



[dan28]

i have a pair of adaptors that i think are 15mm hub to QR
but i dont know what model their for an not too sure wewre i put them
