mattbrown Retrobike Rider Kona Fan GT Fan Feedback View May 2, 2016 #1 Does any one have an exploded view of the Shimano DX threaded headset? Does any one have any parts they can sell me as I might be missing parts?
Does any one have an exploded view of the Shimano DX threaded headset? Does any one have any parts they can sell me as I might be missing parts?

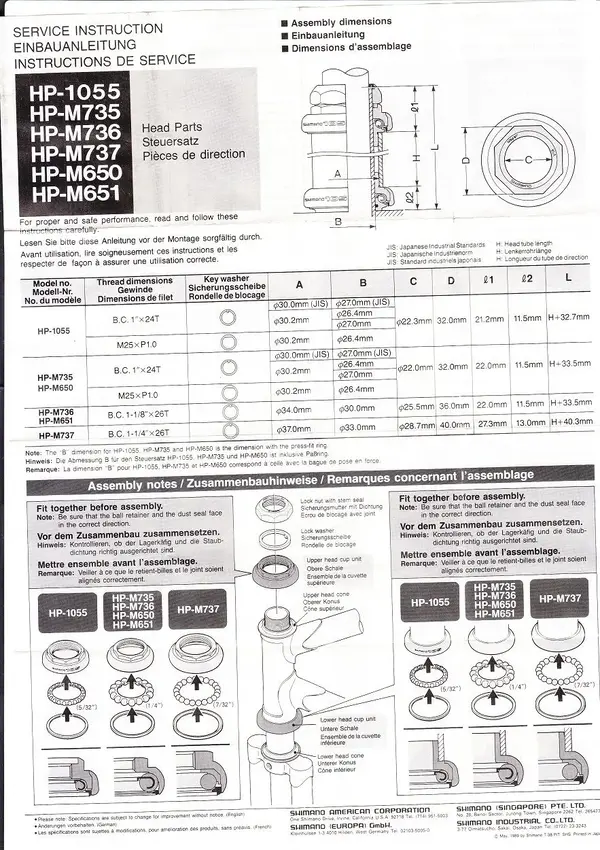

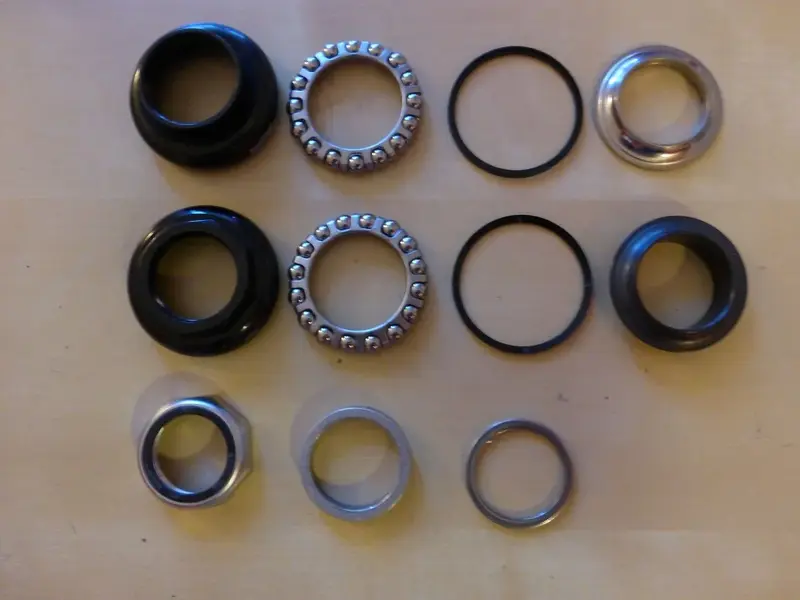

DynaCol MacRetro Rider Raleigh Fan Feedback View May 2, 2016 #2 Re: Luckily I've got a NOS one for one of my builds which came with the instruction sheet. I've added a pic of all the component parts too for reference. Attachments DX Headset.webp 51.1 KB · Views: 343 Service Instruction.webp 210 KB · Views: 343
Re: Luckily I've got a NOS one for one of my builds which came with the instruction sheet. I've added a pic of all the component parts too for reference.
mattbrown Retrobike Rider Kona Fan GT Fan Feedback View May 2, 2016 #3 Re: cool, I'm missing one of the two plastic dust seals. I might need to have a good search around.
DynaCol MacRetro Rider Raleigh Fan Feedback View May 2, 2016 #4 Re: No problem, the plastic parts are seals not spacers though. Cant help with a spare unfortunately but I'm sure someone will have one lying round if you cant find one in your parts bin.
Re: No problem, the plastic parts are seals not spacers though. Cant help with a spare unfortunately but I'm sure someone will have one lying round if you cant find one in your parts bin.
