Diamant Road Bike: Modell 109. 1958. The Head tube badge is missing. Its definately East German (DDR) made.

jaguargod2000

jaguargod2000

Claud Butler Fan

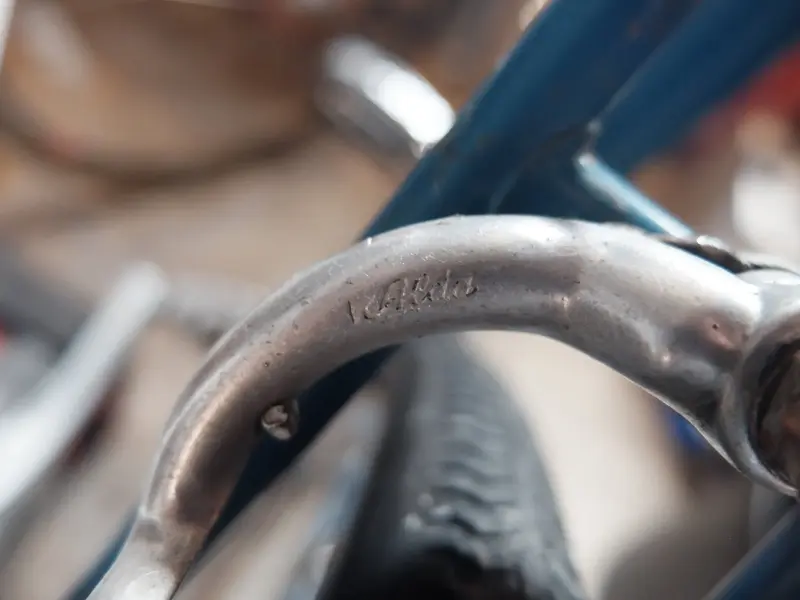

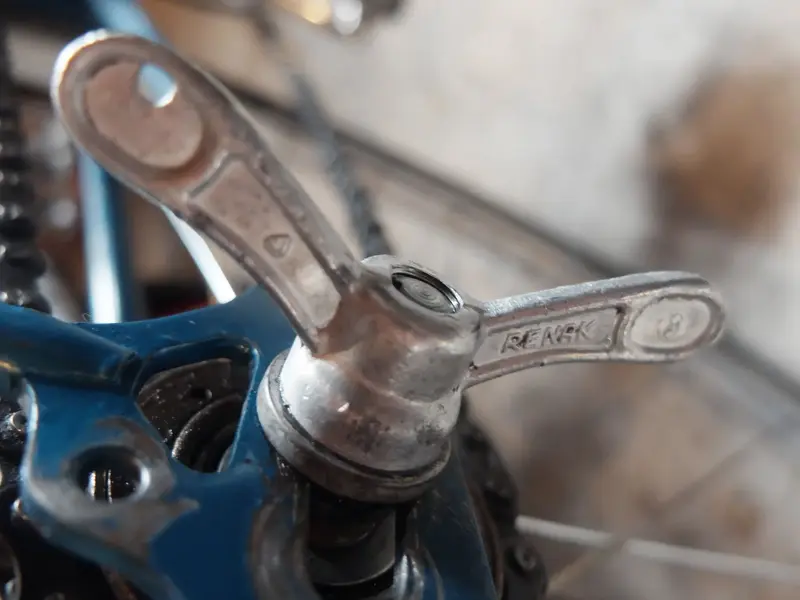

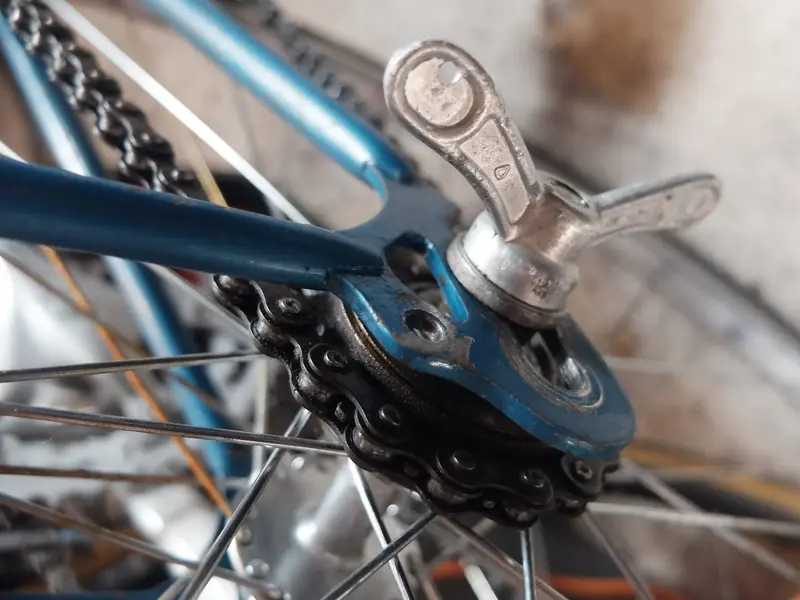

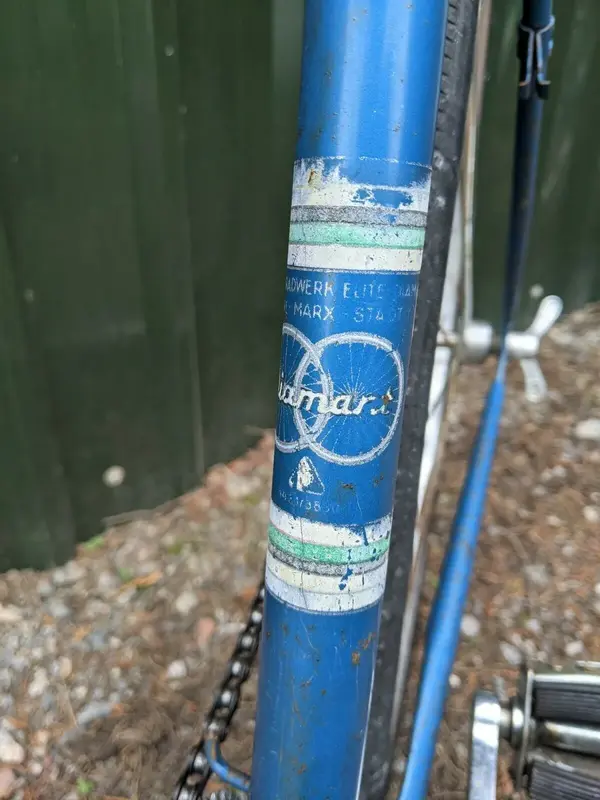

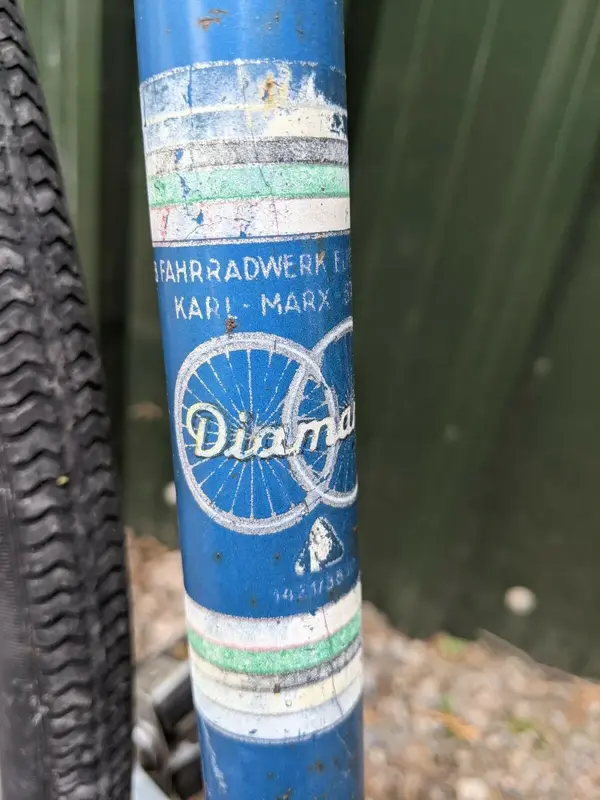

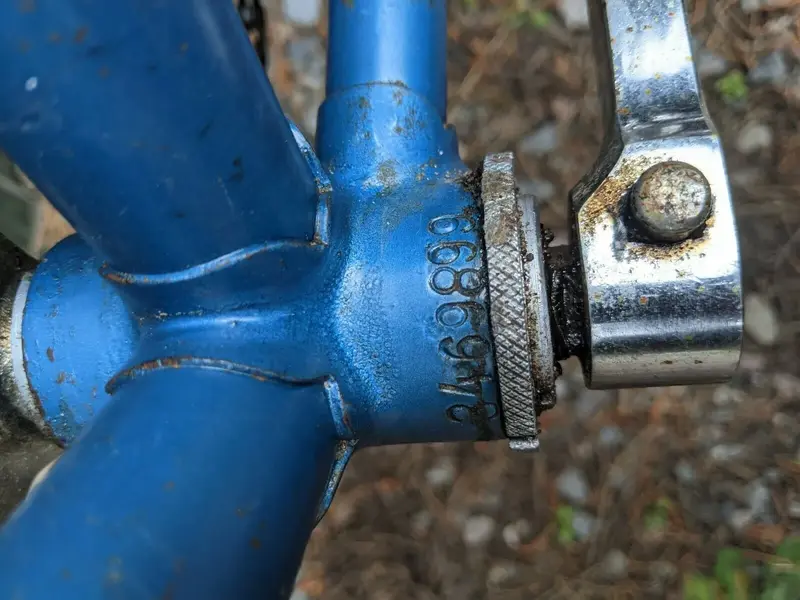

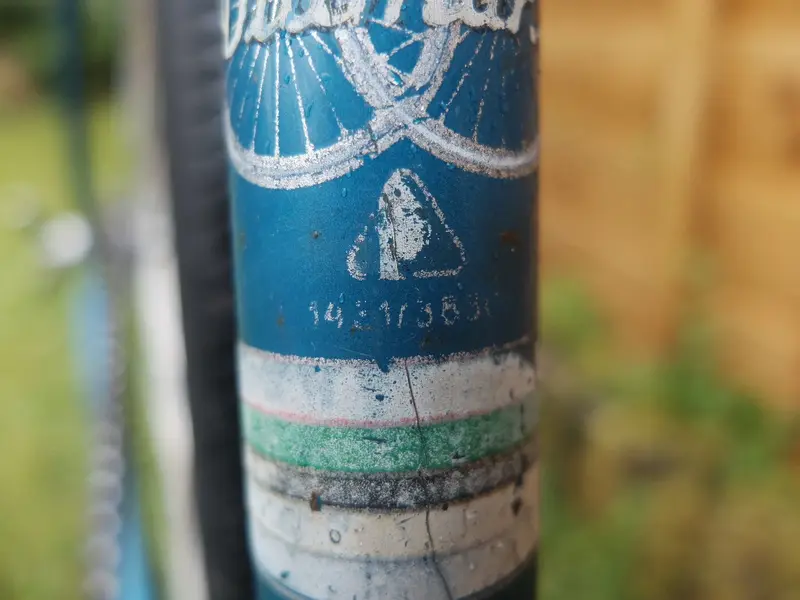

diamant frame number.webp diamant karl marx stadt.webp diamant karl marx stadt 2.webp diamant frame number.webp Diamant Decals say Factory Karl Marx Stad, which was in East Germany (now Chemnitz in Germany)... It has wing nut front and back hub spindle locking nuts. I think the brake has AFA stamped on it ??? more photos to follow tomorrow... Frame number is 3469899


Attachments

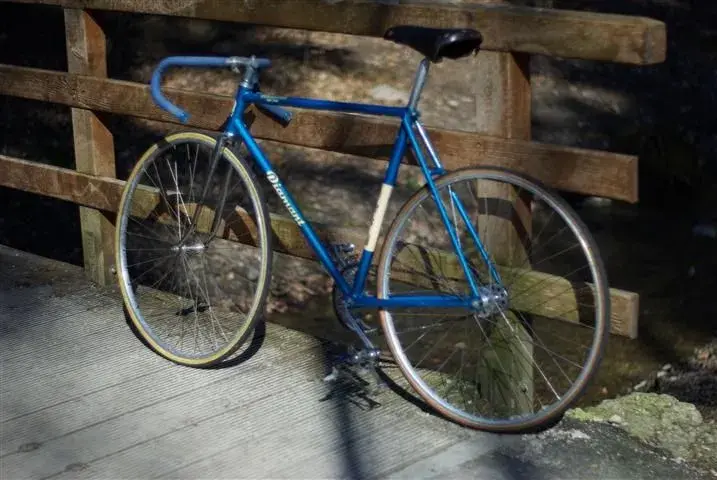

  • 1970 Diamant Model 35 708 Track.webp
    1970 Diamant Model 35 708 Track.webp
    46.2 KB · Views: 7

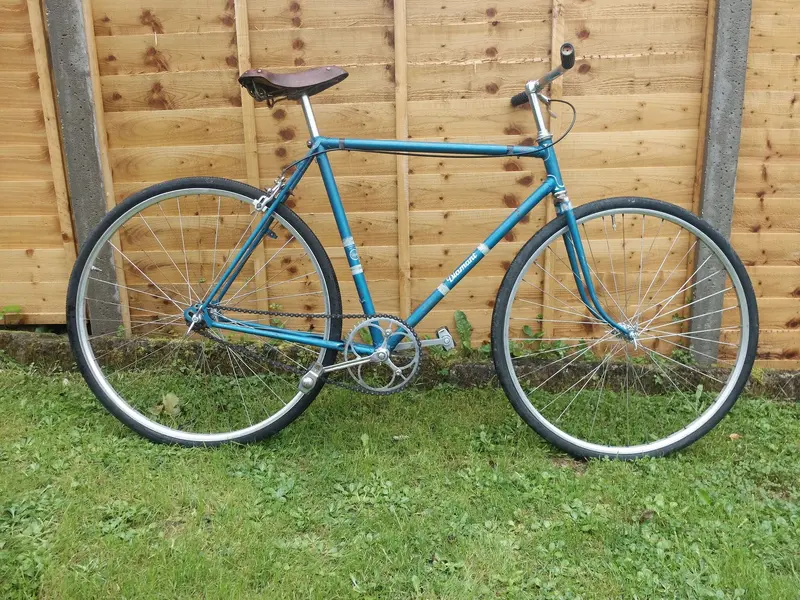

More Hi-def photo of my lovely East German (DDR) bike. 22inch frame, 28inchx 1 3/8ths wheels


Attachments

  • DSCF5531.webp
    186.4 KB · Views: 6
  • DSCF5530.webp
    170.5 KB · Views: 8
  • DSCF5528.webp
    758.6 KB · Views: 9
  • DSCF5527.webp
    241 KB · Views: 10
  • DSCF5526.webp
    99.8 KB · Views: 8
  • DSCF5523.webp
    104.1 KB · Views: 7
  • DSCF5522.webp
    165.4 KB · Views: 5
  • DSCF5520.webp
    171.4 KB · Views: 5
  • DSCF5519.webp
    69.4 KB · Views: 6
  • DSCF5562.webp
    229.9 KB · Views: 6
The saddle was incredibly dry. Not surprising since it was made in early 1950’s!! Just applied 4th coat of neatsfoot, after leaving each coat for 24 hours.. will leave it like that for now until leather has rejuvenated… I don’t go for ‘showroom’ … I prefer leather with a history….

Blacktopdisciple said:
Was this originally built as a singlespeed or did it have gears at some point? Be careful not to over soften the saddle.
Click to expand...
The entire bike has correct, original OEM parts. Brake lever, callipers, Cranks, saddle, seatpost, Handlebars and grips, wheels rims/hubs all as the 1959 spec from DIAMANT factory… the Modell 109 was a ‘fixie’ path/town bike with unique brazed pannier mounts on seat stays… A former East German friend has sent me an original Head Badge, after fitting she will be a working piece of history….

jaguargod2000 said:
The entire bike has correct, original OEM parts. Brake lever, callipers, Cranks, saddle, seatpost, Handlebars and grips, wheels rims/hubs all as the 1959 spec from DIAMANT factory… the Modell 109 was a ‘fixie’ path/town bike with unique brazed pannier mounts on seat stays… A former East German friend has sent me an original Head Badge, after fitting she will be a working piece of history….I think the tyres are original manufacturers also just waiting for a resident German DIAMANT expert to confirm….
Click to expand...
