Sorted Derailleur jocky wheel bolt

[Tootyred]

Im missing a jocky wheel bolt from an xt m735 rear mech. I know the m732 are the same and im sure there are plenty of other shimano models that used them.

Has anybody got a spare please?

Cheers



[Whiskeytownracer]

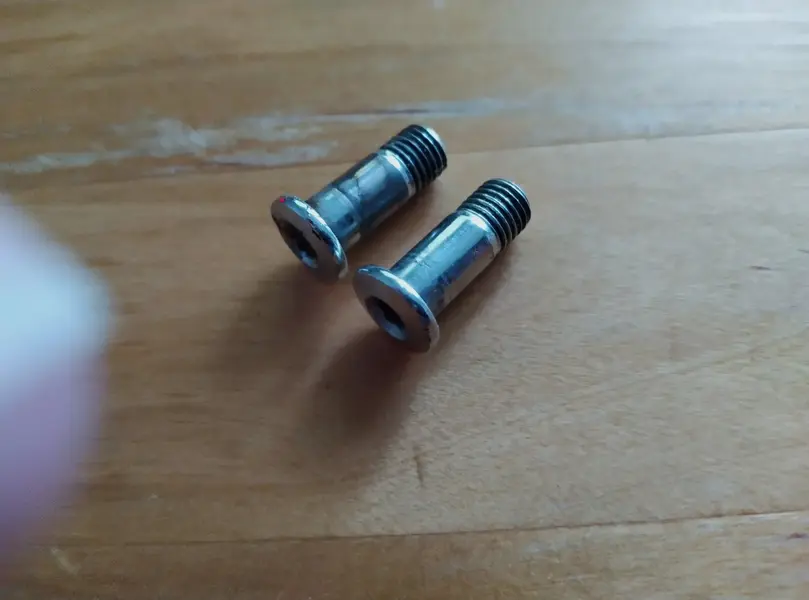

Had a rummage through my assorted crap, got 2 that look v similar but can't say if they match. Will post pic in a minute. What I have are 17mm long, 6mm dia.

Pic edit.



[Tootyred]

Great. Let me grab the other and measure it.



[Tootyred]

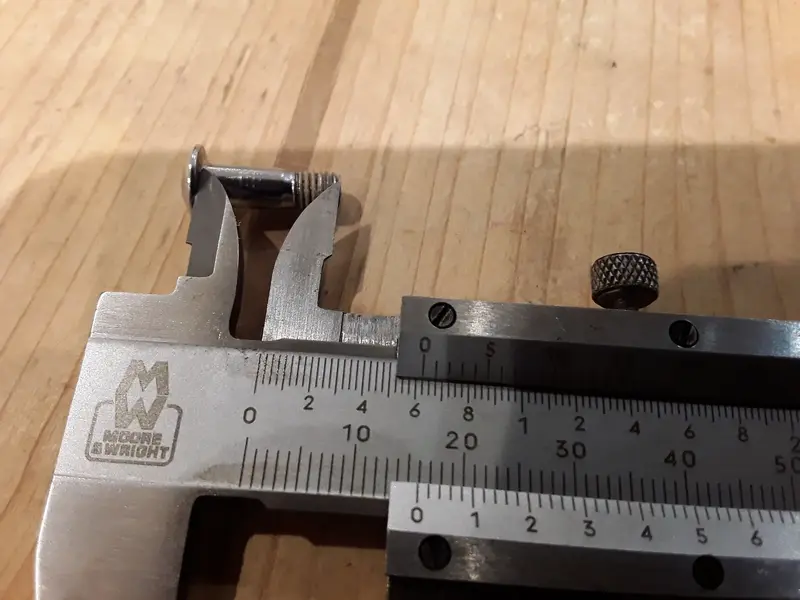

Bolt is 16mm, with a 5mm shank



[Tootyred]

Theres modern m5 x 16mm jocky wheel bolts available on line, but the all have countersunk heads.

These are flat.



[Whiskeytownracer]

I just measured total length, using your method it's 16mm, but mine are def 6mm dia I'm afraid. Sorry.



[Tootyred]

Thanks for looking.



[mdvineng]

Unless wanting originality, I would use the later version and countersink the plates.



[Matttymm]

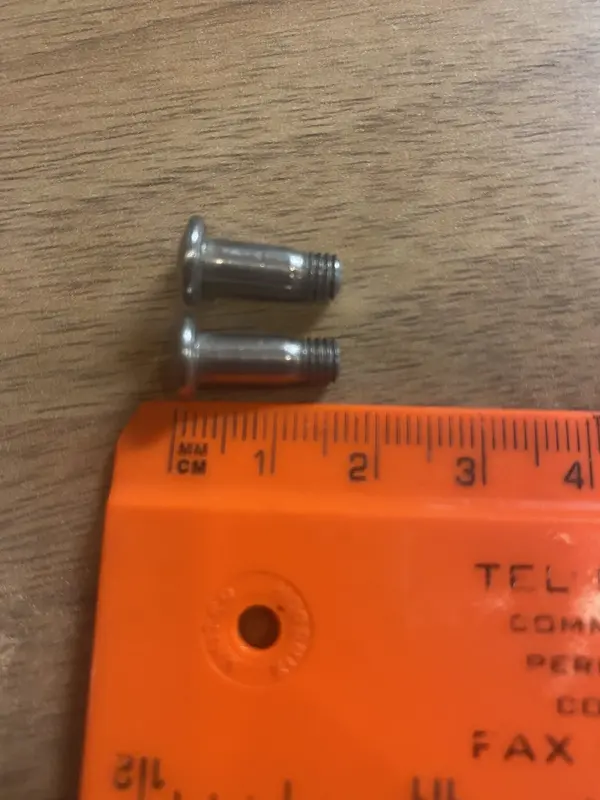

I’ve asked for a fancy measuring tool for my birthday ; however are these what you’re looking for ??



[Tootyred]

Could be! Its hard to tell......

Cheers for digging them out.
