‘93 Alpinestars Al-Mega E735

[Arran]

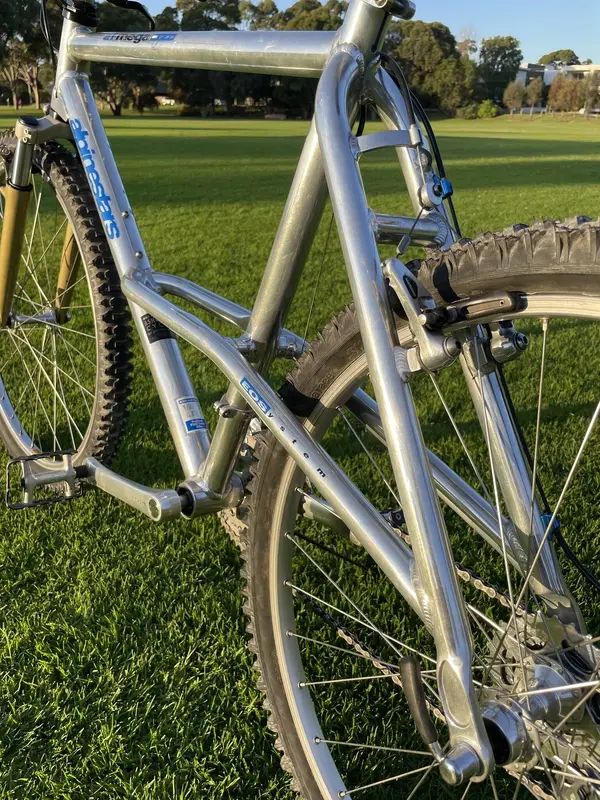

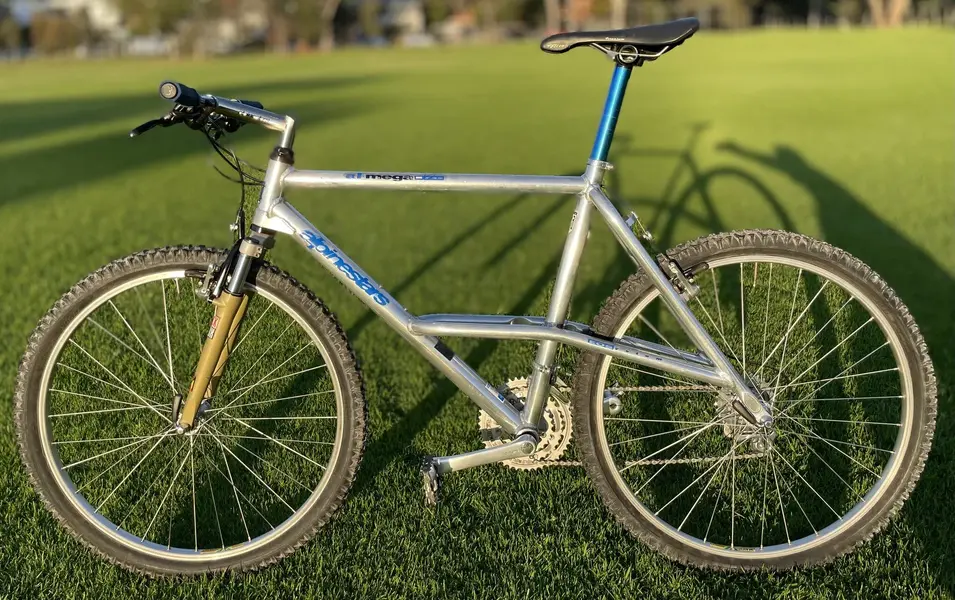

I was stoked to find this beast in ‘hardly used, excellent condition recently. It’s never been off-road & still had the mold knobs on the slick tires it rolled off the shop floor on!


Specs:

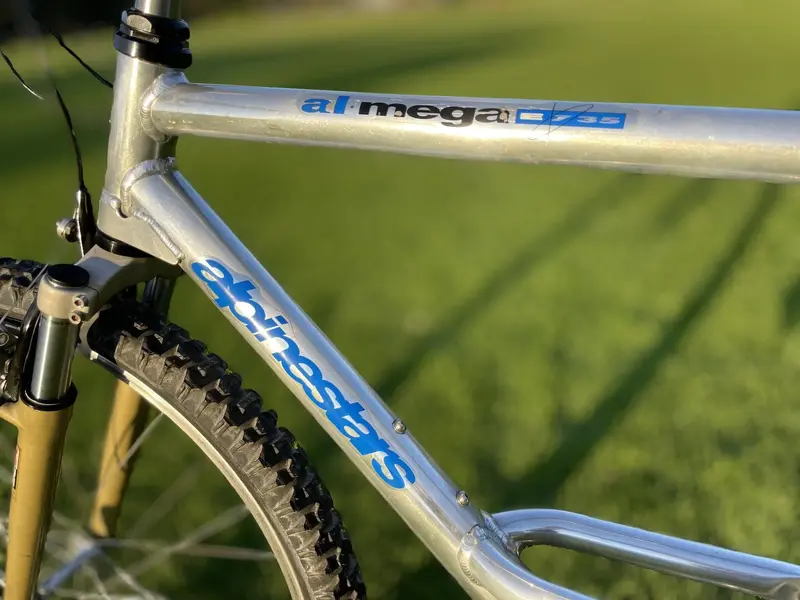

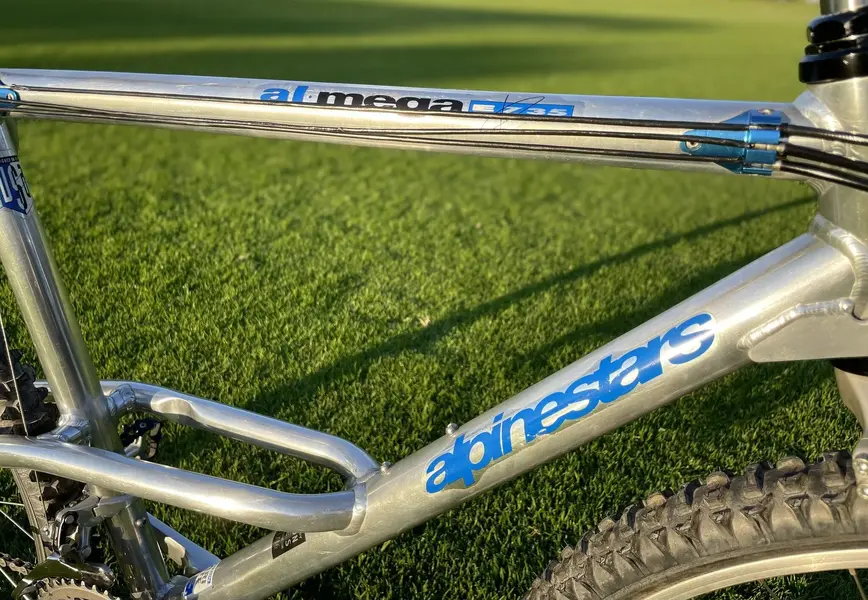

Frame:
- Easton Program 7000 series alloy
- 18” size
- 1 1/4” head tube

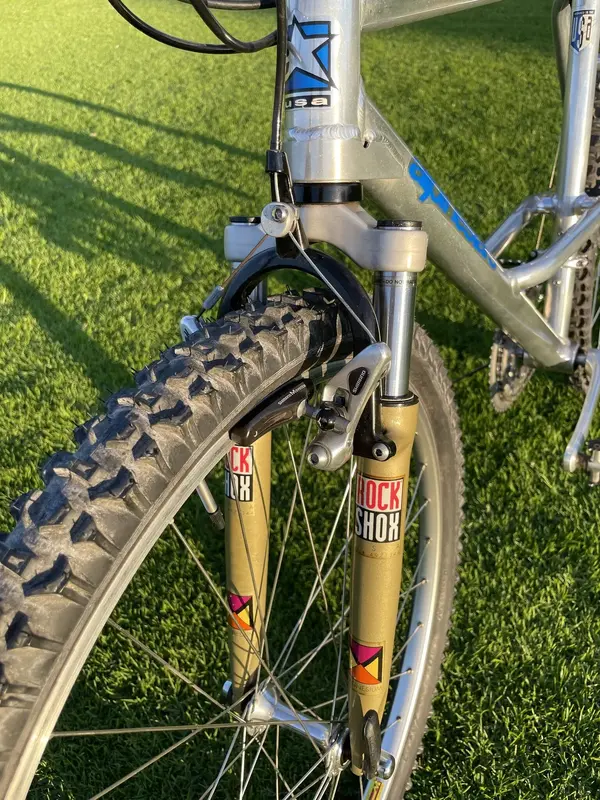

Fork:
- Rockshox Mag 10
- 1 1/4” threaded steerer

Headset:
- Tange Evolution 1 1/4” threaded

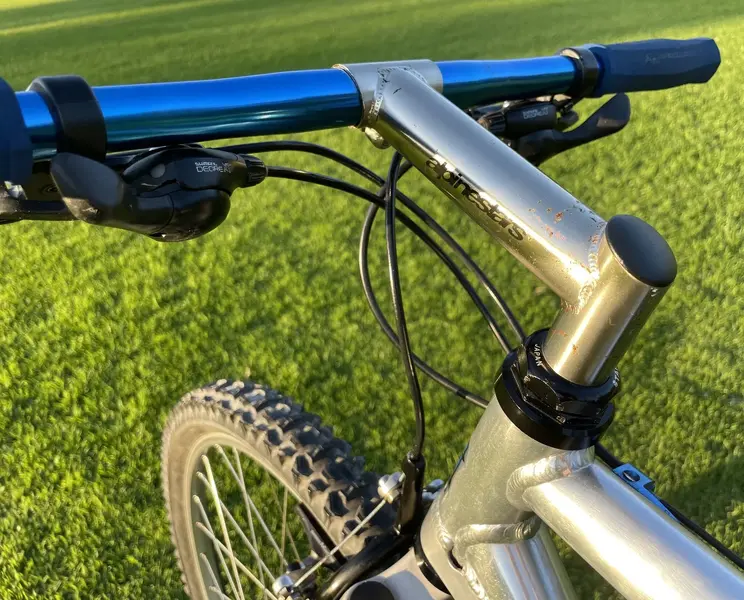

Stem:
- Alpinestars 1 1/4” CrMo quill
- 135mm reach

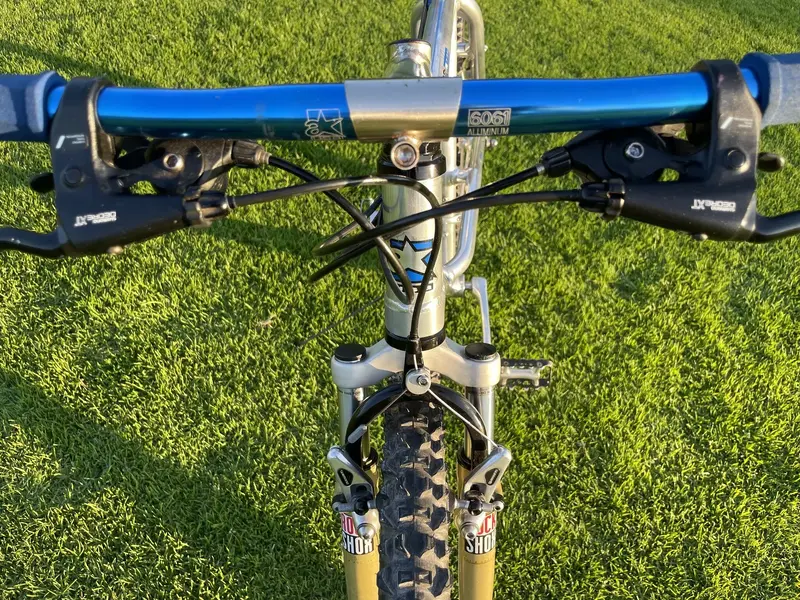

Handlebar:
- Alpinestars alloy
- Blue anodized
- 580mm width (uncut)
Grips:
- Ritchey WCS (?) hexagonal foam
Barends:
- Nope!

Brakes:
- Deore XT M 735
Brake Pads:
- Original XT (unworn)
Brake Cables:
- Shimano M-system
Cantilever cable hangers:
- Deore XT
Brake Levers:
- Deore XT M735 STI

Shifters:
- Deore XT M735 STI
Front Derailleur:
- Deore XT M736
- 34.9 top pull
Rear Derailleur:
- Deore XT M735
- Short cage
Derailleur Cables:
- Shimano SIS
Cassette:
- Shimano HG90
- 11-28
Chain:
- Shimano HG90
Cranks:
- Deore XT M730
Crank Bolts:
- Shimano CrMo 14mm w/chromed steel 2-pin caps
Chainrings:
- Deore XT, 26/36/46 rings
Chainring bolts:
- Shimano CrMo
Bottom Bracket:
- Shimano UN90 68mm
- 124mm JIS tapered spindle
Pedals:
- Deore XT M735 w/Mt Christophe toe clips & straps (not pictured)

Hub Skewers:
- Deore XT
Rims:
- Mavic M231 32h silver
Hubs:
- Deore XT (HB M730 front & FH M735 rear)
Nipples:
- Silver brass
Spokes:
- DT Competition silver
- 14/15/14 G
Tyres:
- Panaracer Smoke 26x2.1
Tubes:
- Panaracer

Saddle:
- Selle Italia Flite Ti
Seatpost:
- Alpinestars alloy
- Blue anodized
- 31.6mm diameter
- 350mm length
Seatpost Binder:
- Alpinestars alloy 34.9mm

Weight: ~25lb



[Fatboy1974]

Nice Alpy!



[brocklanders023]

Cor, that's a belter!
