Shimano shifters with Magura HS22- how??
- Thread starter damianw
- Start date
just jacques
Retro Guru
You can only use shiftmix if your HS22 are the later split clamp type. If they are the later type you can also use Hope match makers, these bolt straight on & they have same profile as the Magura clamp. These are the ones I have currently fitted with XT M770 shifters.
Hope Tech Matchmaker Direct Shifter Mount Shimano XT/Saint | eBay
Hope Tech Matchmaker Direct Shifter Mount Shimano XT/Saint.
www.ebay.co.uk
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
If you are trying to use m900 or similar shifter pods from brifters, options are limited, magura did a plastic adapter, x-lite an alloy one, other brands did too but were very expensive, and I'm not sure how easy any are to come by these days.
If it were me, I'd not bother with m900, I always thought the shifters looked great but didn't work as well as xt. I'd look for xt m739 or m740 shifters as they have a bar clamp, are 8 speed and are period for what you've mentioned.
If it were me, I'd not bother with m900, I always thought the shifters looked great but didn't work as well as xt. I'd look for xt m739 or m740 shifters as they have a bar clamp, are 8 speed and are period for what you've mentioned.
joglo
Senior Retro Guru
Hi,
Just wanted to provide some more examples or work arounds as I simply do not like STI "Brifters" at all.
Magura and Shogun had plastic "perches" especially the latter show up every now and then and not so expensive.
Magura
Shogun
www.mtb-kult.de

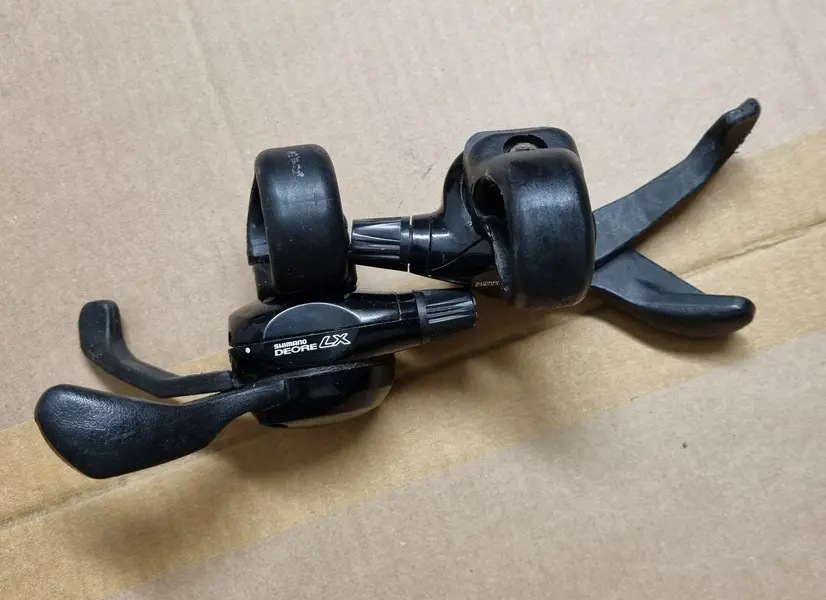

Here Shogun with Trigger from LX65x series
Grafton had lovely aluminum perches.
Here a link to the german forum where some managed to re-produce a small number.
www.mtb-news.de
Gorilla Precision had socalled Billet Shifter Pods
Just the strange thing they do fit only? with ST-M008 shifter, anyhow standalone.
Those ST-M008 are anyhow next to the M739 or M740 trigger mentioned from @ishaw a good choice for decent but unobtrusive Shimano shifters (without optical gear display)

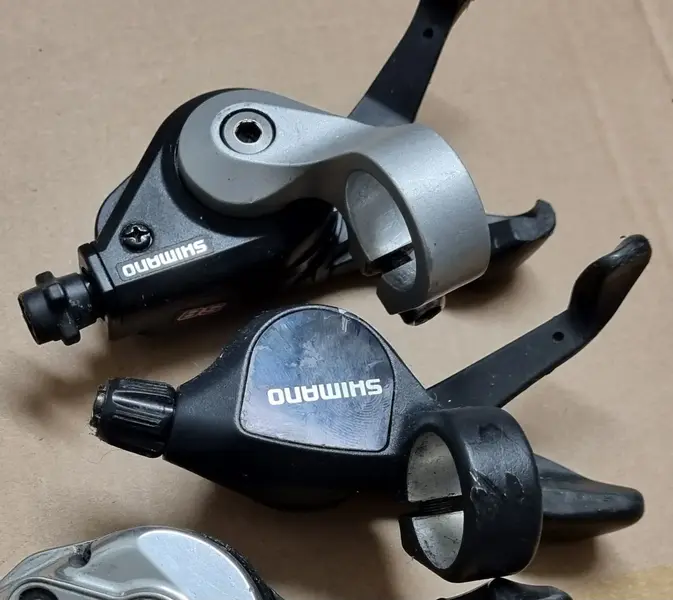

The lower one in the pic is the right hand 008 shifter

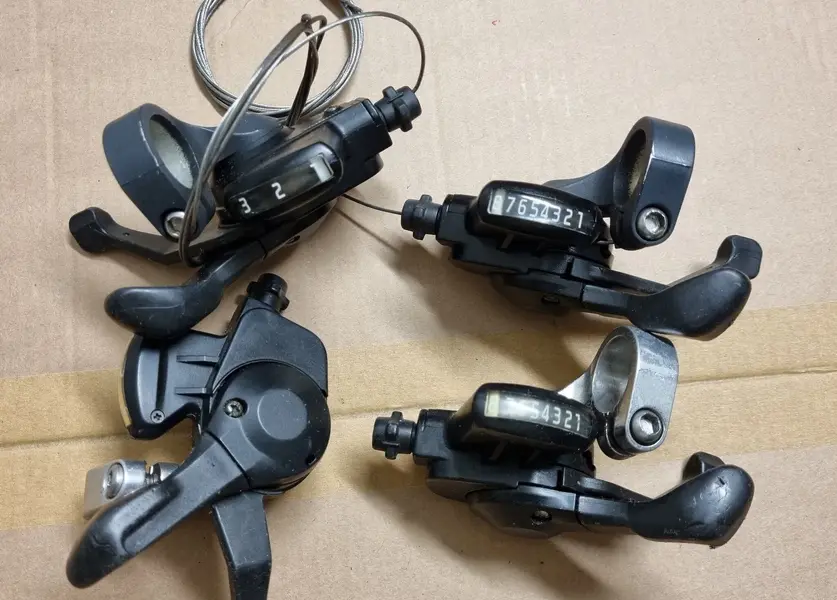

The upper one from this picture is much easier to find and cheaper, my clear recommendation, STX (RC) SL-MC38, 40, etc. shifters.
They are available with polished, silver or black aluminum clamp, with or without gear display and with 7 or 8 speed.
Some more

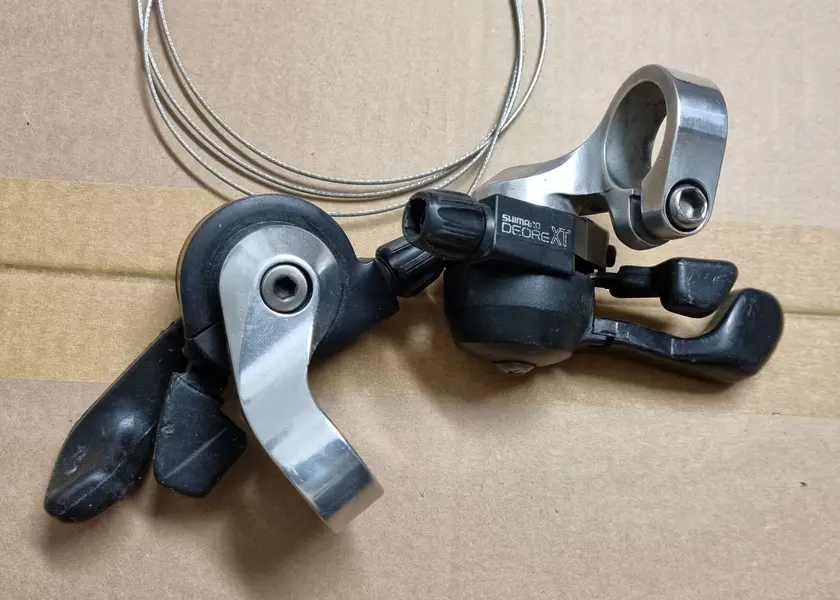

Even if one doesn't like the shifter itself, those are a good source for a nice aluminum clamp.
With a very small hack (4 small holes) those clamps fit also to the trigger of earlier XT73x or XTRM900 STIs.
Here some
I hope this helps.
Just wanted to provide some more examples or work arounds as I simply do not like STI "Brifters" at all.
Magura and Shogun had plastic "perches" especially the latter show up every now and then and not so expensive.
Magura
Adapter Perches MAGURA Sti Rapidfire Plus XT XTR hs22 hs33 M730 M900 0321872 | eBay
Kleiderbügel Magura Schaltadapter Shimano STI Schnellfeuer Plus Teilenummer 0321872 USA, alte Lagerware Kompatibel mit LX DX XT bis 1993 und XTR M900 Transport durch Agentur GLS entweder dpd ...... Vereinigtes Königreich, Frankreich, Deutschland, Italien, Belgien, Niederlande, Irland, Luxemburg...
www.ebay.de
Shogun STI Adapter für Shimano Deore XT ST-M091 / Deore DX, Paar, sch, 32,99 €
- ermöglicht die Nutzung von älteren Shimano-Shiftern mit beliebigen Bremshebeln - passend z B für Deore XT M730, M735, Deore DX - für reguläre MTB/ATB-Lenk
Here Shogun with Trigger from LX65x series
Grafton had lovely aluminum perches.
Here a link to the german forum where some managed to re-produce a small number.
Grafton shifter perches
Ich hätte ggf. einen Kontakt ,wo die in Wunschfarbe und hochwertig eloxiert werden könnten. Wenn Interesse besteht, würde ich das mal in die Hand nehmen.
www.mtb-news.de
Gorilla Precision had socalled Billet Shifter Pods
Just the strange thing they do fit only? with ST-M008 shifter, anyhow standalone.
Those ST-M008 are anyhow next to the M739 or M740 trigger mentioned from @ishaw a good choice for decent but unobtrusive Shimano shifters (without optical gear display)
The lower one in the pic is the right hand 008 shifter
The upper one from this picture is much easier to find and cheaper, my clear recommendation, STX (RC) SL-MC38, 40, etc. shifters.
They are available with polished, silver or black aluminum clamp, with or without gear display and with 7 or 8 speed.
Some more
Even if one doesn't like the shifter itself, those are a good source for a nice aluminum clamp.
With a very small hack (4 small holes) those clamps fit also to the trigger of earlier XT73x or XTRM900 STIs.
Here some
I hope this helps.
