Orange P7 - 2010/11 - Build Thread - Finished

[Timoth27]

Re:

That looks awesome, black and red is my favourite combo



[rwm1962]

Re: Orange P7 - 2010 - Build Thread

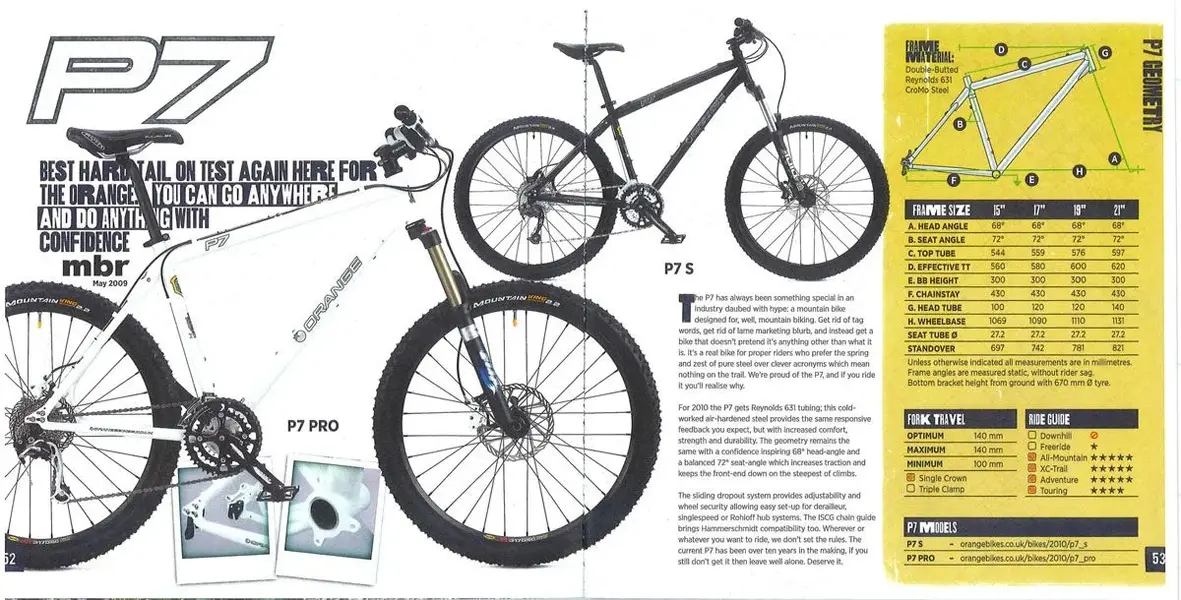

Original catalogue page from 2010.



[rwm1962]

Re: Orange P7 - 2010 - Build Thread

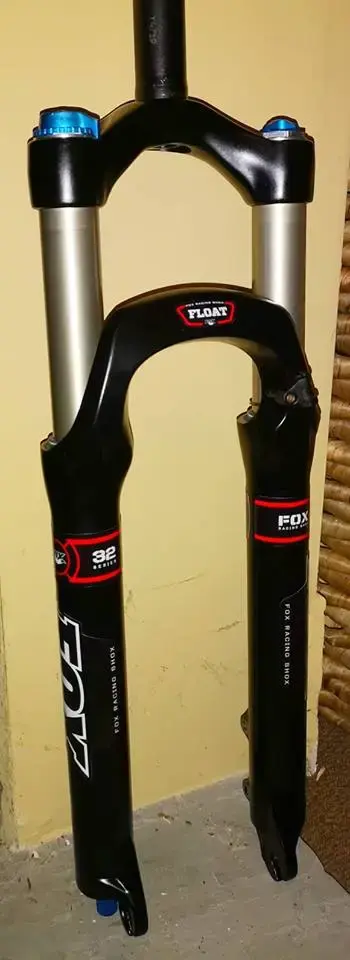

The forks serviced & reassembled. These are from my retired 2006 P7. 140mm travel. Not 100% sure whether to put them on as I also have some 2017 Fox 32 120mm.

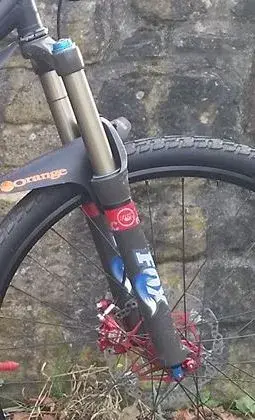

Forks before & after.



[rwm1962]

Re: Orange P7 - 2010 - Build Thread

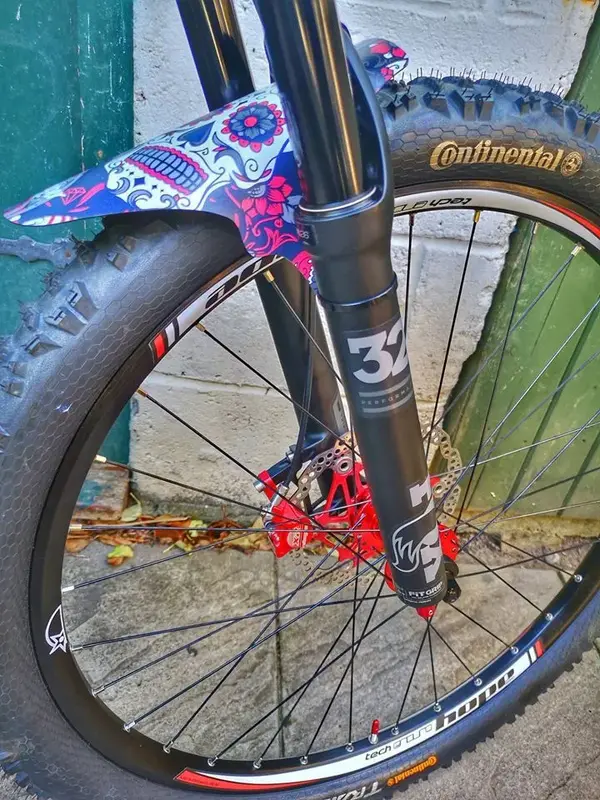

Gone for the 120mm forks for now. Better suited to it's planned use. Just chain, gear set-up & dropper post to sort.



[Timoth27]

Re:

That looks awesome black with red hope is spot on



[rwm1962]

Re: Orange P7 - 2010/11 - Build Thread

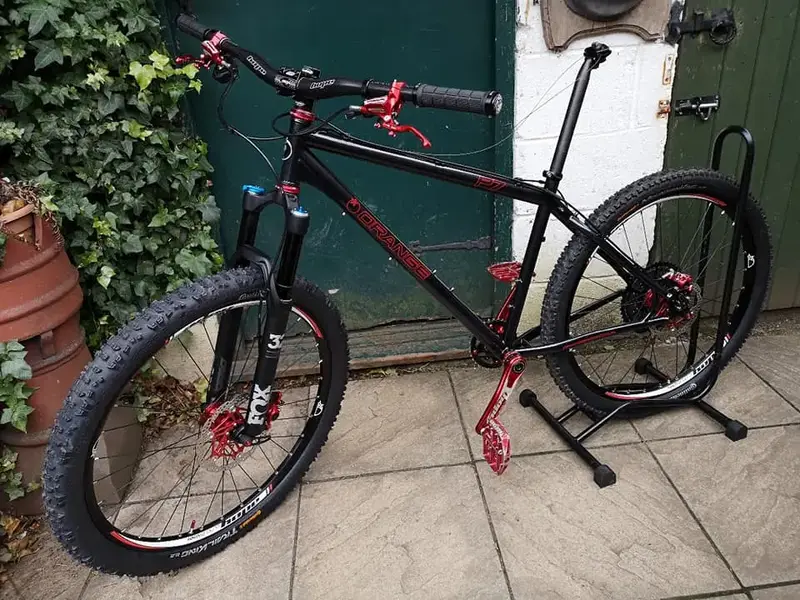

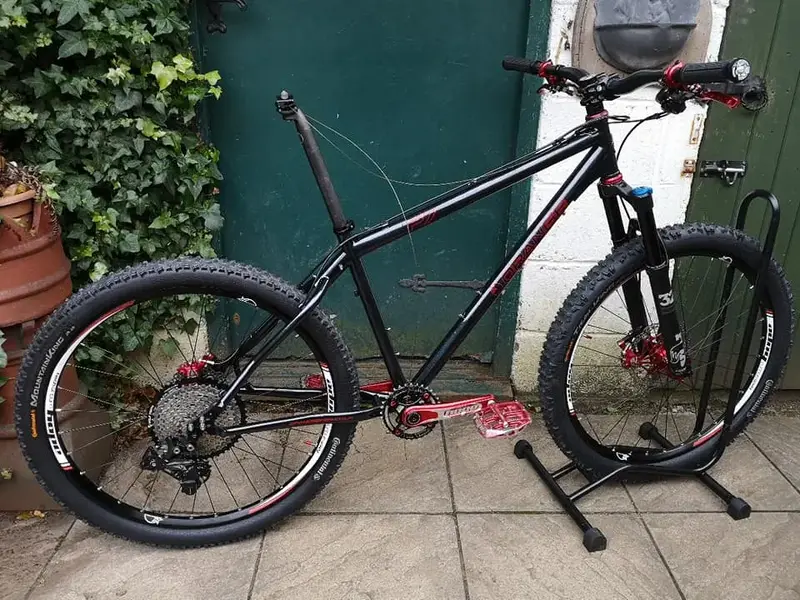

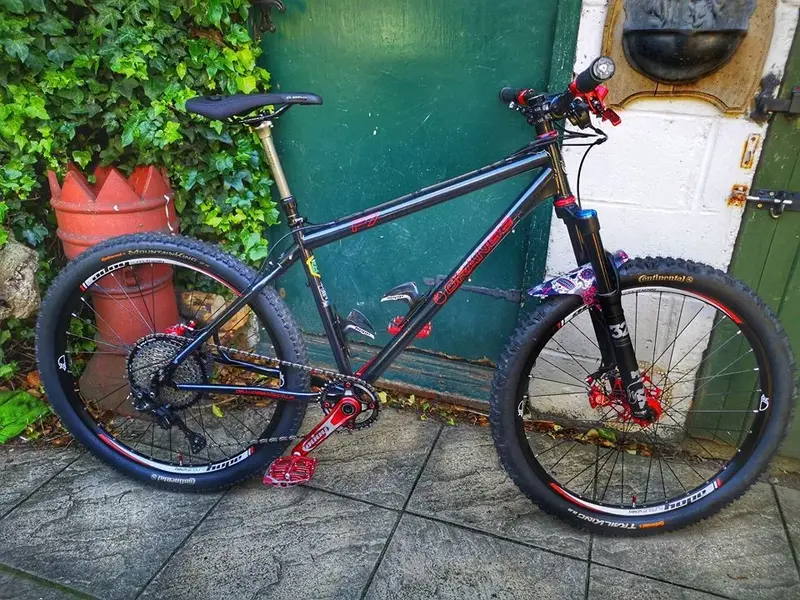

Finished at last! Delayed by last years ankle surgery & retro projects taking priority.

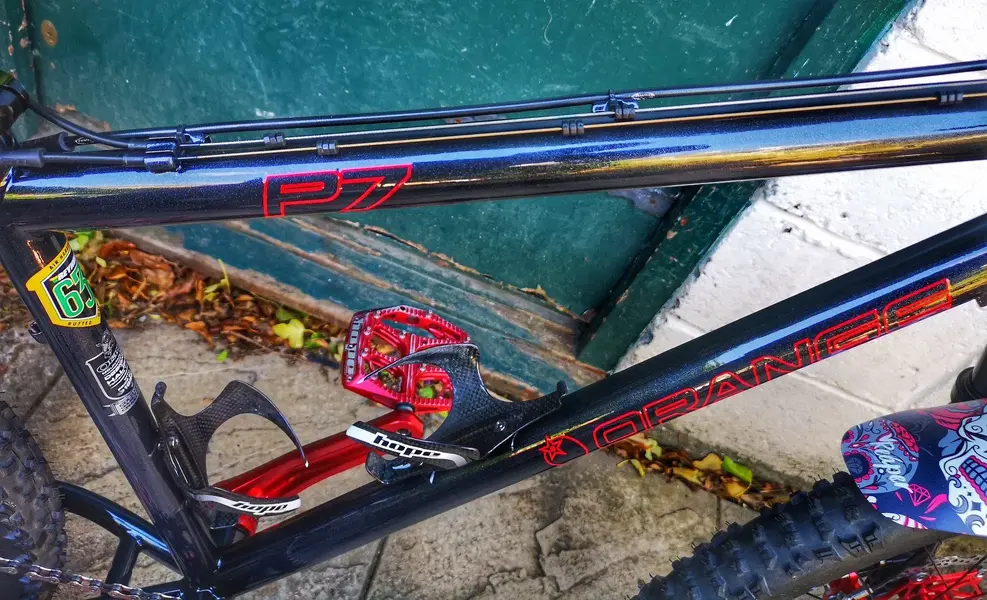

Frame Orange 2010/11 P7 17" Frame No: M10010171

Fork - suspension - Fox2017 Float 32 120mm GRIP

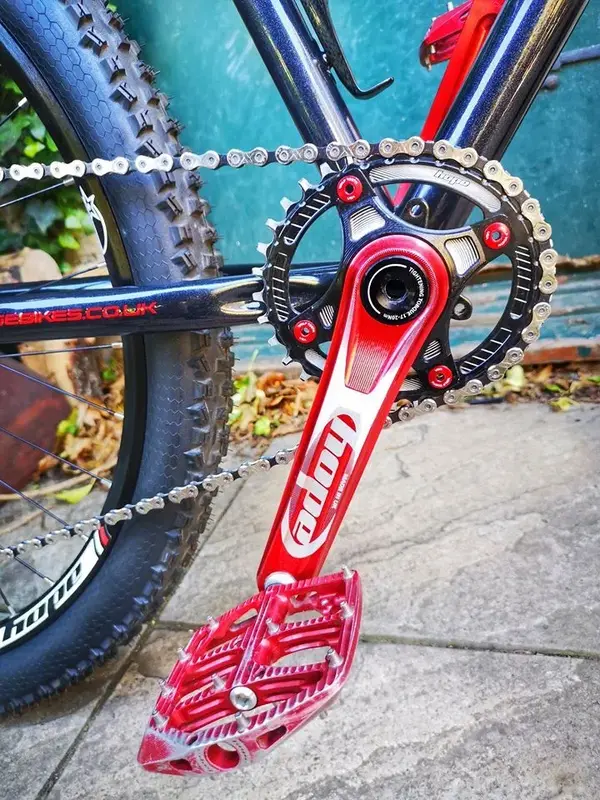

Front Chain Ring - Hope Oval 34T Absolute Black 34T
Chainring Bolts - Wolf Tooth 7075 Alloy spannerless
Bottom Bracket - Hope 30mm Bottom Bracket Shimano XTR BB93
Cranks - Hope 170mm w/spider 68/73 - 140mm Shimano XT M8000
Pedals - Hope F20 Shimano XT M8140

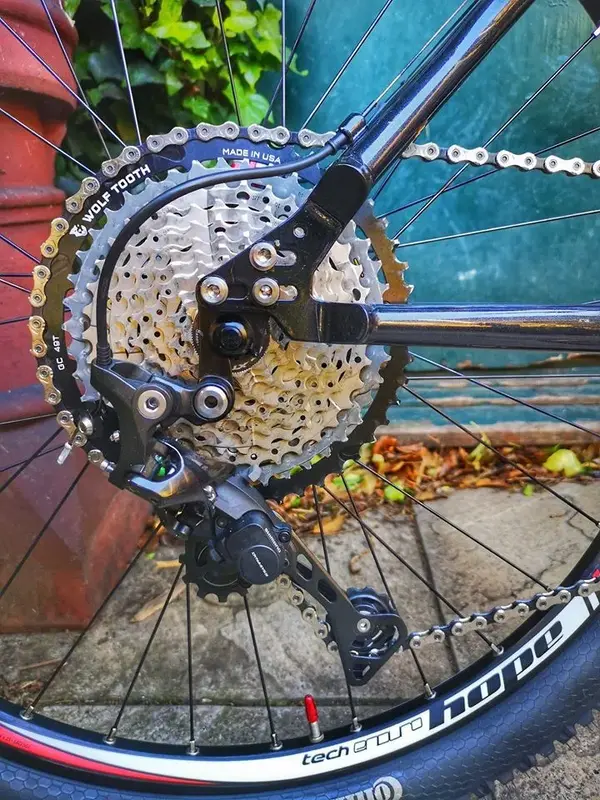

Cassette - Shimano XT M8000 11 Speed 11-42t Cassette (modded to 11-49t)
Cassette Extender - Wolf Tooth 49T Wolfcage kit
Rear Mech - Shimano XT M8000 Shadow+ 11 Speed Rear Mech
Gear Shifter - Shimano XTR M9000 Rapid Fire bar mount
Chain - KMC X11-93 11 Speed

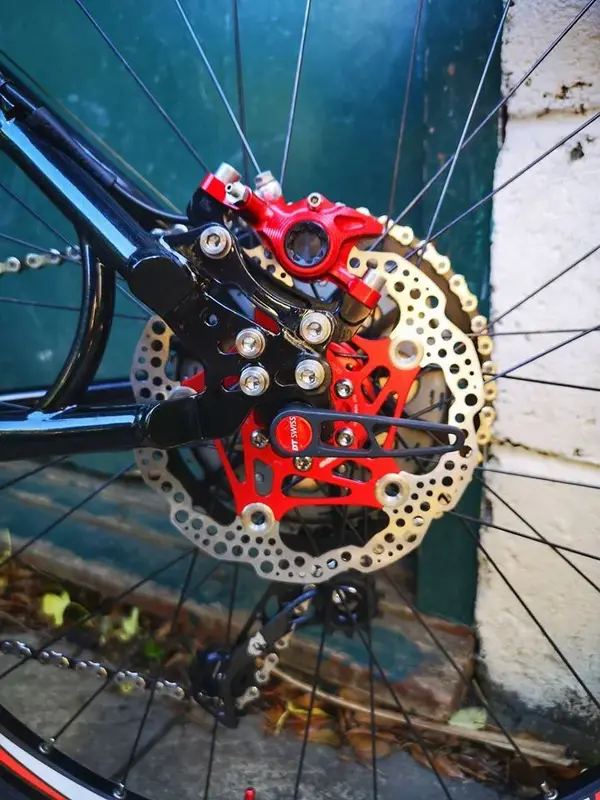

Brakes - Hope Tech 3 X2
Caliper Mount R - Hope Mount F
Caliper Mount F - Hope Mount L

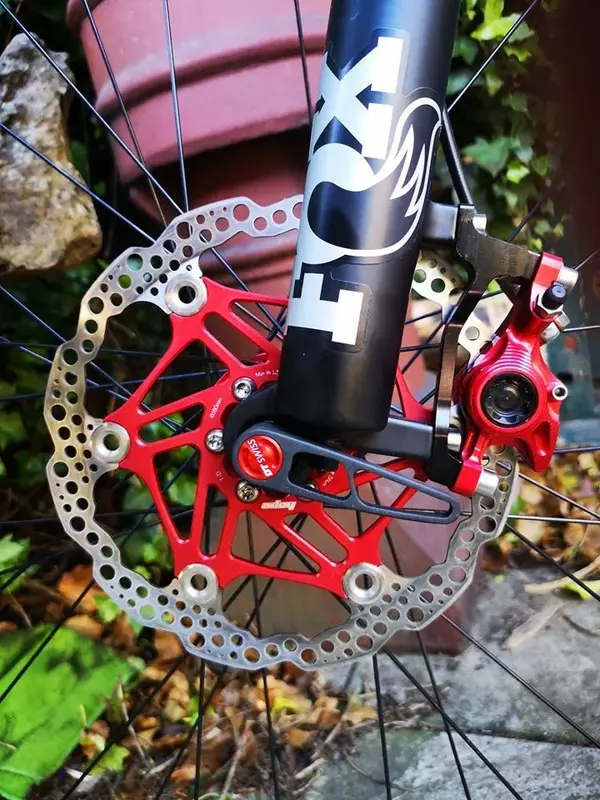

Front Rotor - Hope 180mm Floating Rotor
Rear Rotor - Hope 160mm Floating Rotor
QR Thru Bolt F - DT Swiss RWS Thru bolt 9mm
QR Thru Bolt R - DT Swiss RWS Thru bolt 10mm rear
Hub adapter F - Hope HUB443 9mm front
Hub adapter R - Hope HUB239 10mm rear
Wheelset - Hope Enduro/Red Pro4 & Steel Freehub

Seat Clamp - Thomson 29.8mm
Saddle - SDG Radar. Hollow cro-mo. Orange edition
Seat Post - Thomson Elite Dropper 27.2mm
Dropper Lever - Wolf Tooth ReMote

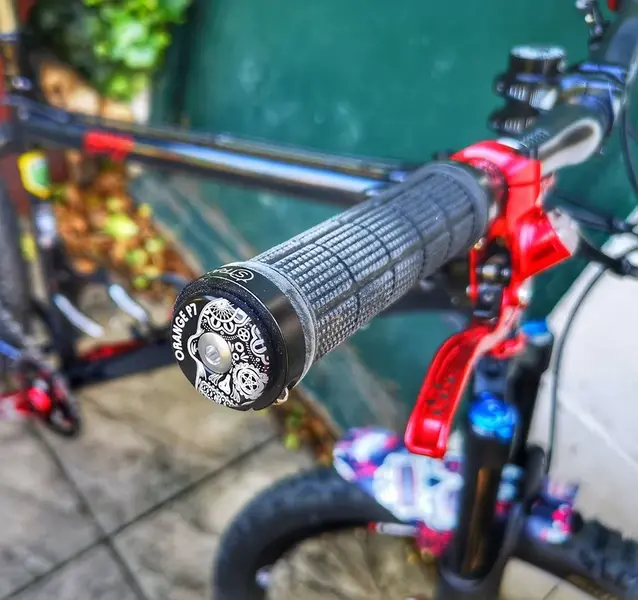

Grips - Orange Strange Grip 130's
Headset Spacers - Hope Space Doctor
Head Doctor - Hope

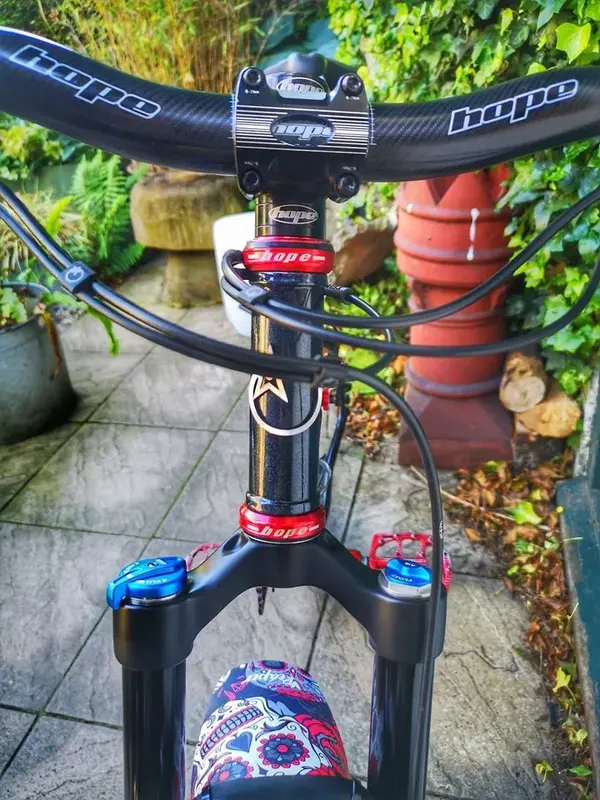

Headset - Hope Conventional EC34 Headset - Red

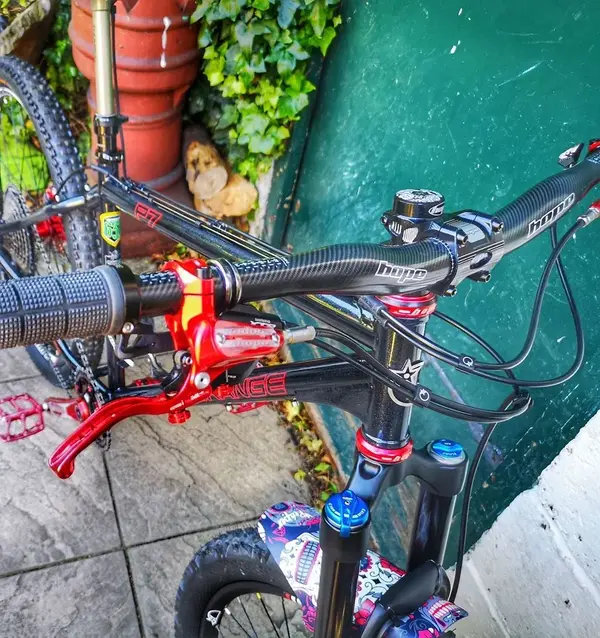

Bars - Hope Carbon 20mm Riser 7° Back 5° Up 780mm
Stem - Hope AM-FR 70mm, 31.8mm, 1.1/8", 0° rise - Red Thomson Elite 70mm 10° rise
Stem Cap/Bar ends - Kapz Custom plus Ti bolt

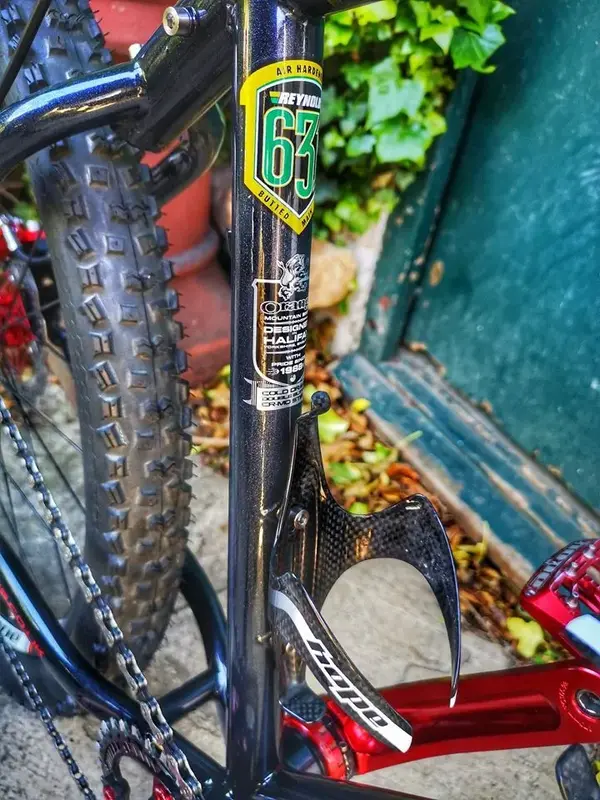

Bottle Cage - Hope Carbon Fibre



[rwm1962]

Re: Orange P7 - 2010/11 - Build Thread



[mk one]

very nice, not really anything i would change on it, looks like it will be great fun to ride.

Must get another modern Orange steel frame, i have the Prestige they re-released and it is one of the most fun bikes i have ridden. It was getting a bit marked up so i retired it, but do miss riding it.



[Sjh1986]

Re:

A stark difference from when you bought it, very nice! Love the paint finish



[rwm1962]

Aye - thanks!
