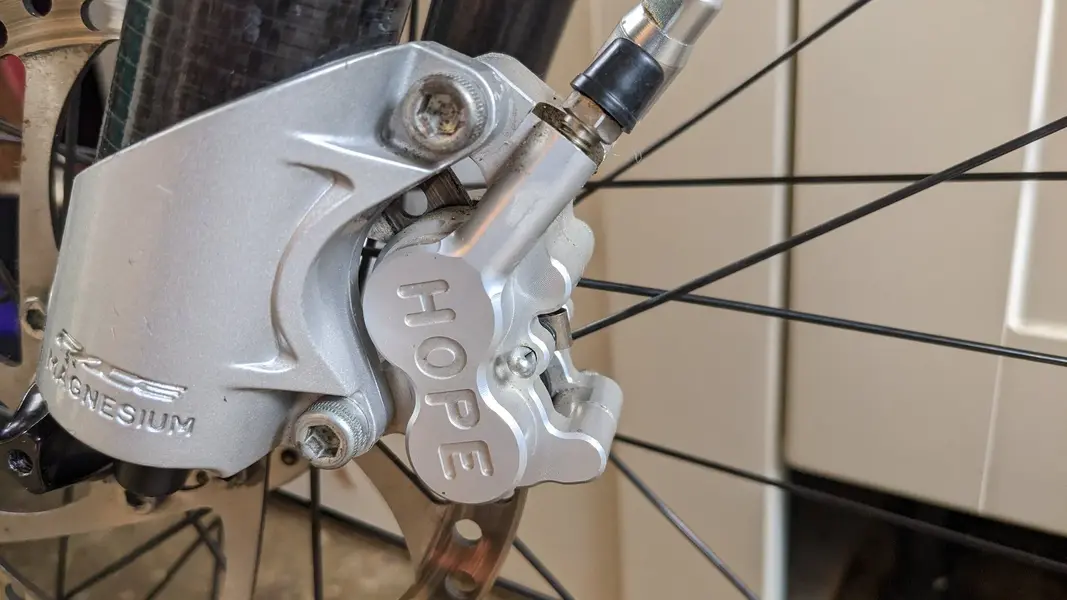

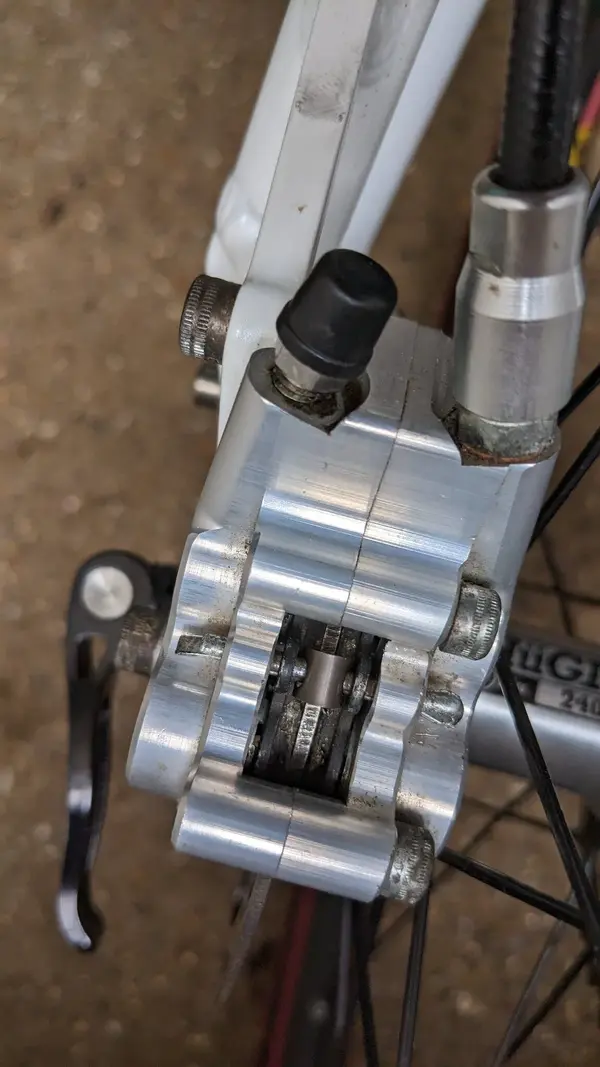

I think these are circa 2002-2005 but I can't figure out the model or pads that will fit this retro Hope front and rear brake system.

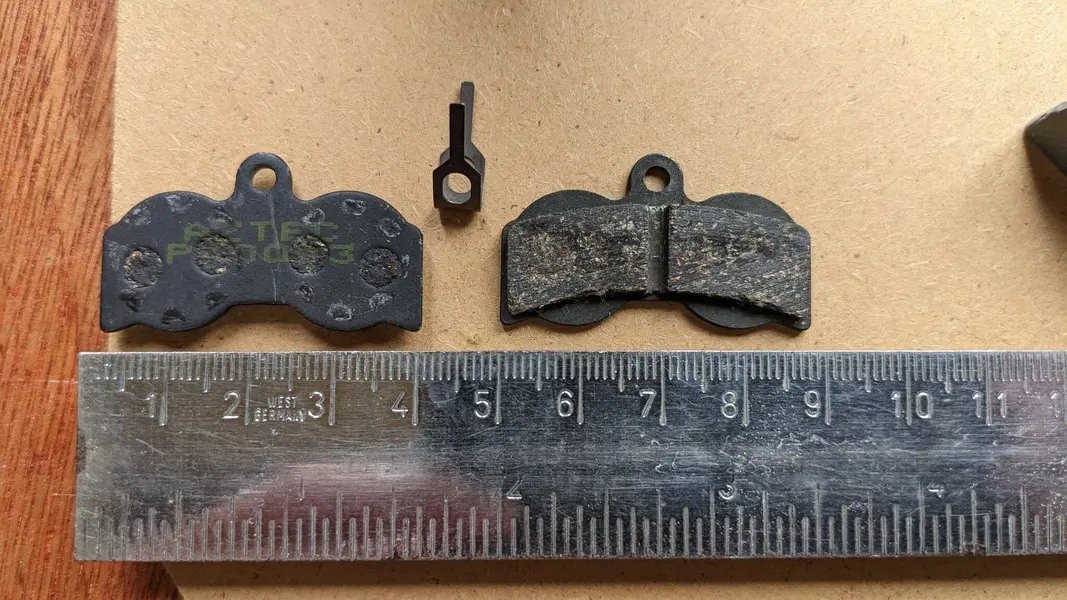

I can't make out the details on the existing pads to search the model number...

The spring is also an absolute nightmare to pinch between the pads and fit. It has pinged off multiple times into my workshop, thankfully I've found it each time


early



[Sunny6672]



[Sunny6672]



[novocaine]

they are XC4's aren't they?



[Sunny6672]

they are XC4's aren't they?

Yeah I think they are having just searched on Google - thanks. Now to get some replacement pads

Any ideas on fitting, can't see any you tubes ....



[novocaine]

slide them in with the spring in between from the disc side, insert pin and bend over 1 leg. same as any other brake really.

you'll need to push the pistons back as well, I use a spacer block.



[Sunny6672]

Got the old pads in but the pistons wouldn't stay pushed back so the pads are now sticking on the disc

That feeling when it all goes to rat doo doo



[Sunny6672]



[novocaine]

that's my fault, bum steer, haven't worked with Hope brakes for a while. think you have to do something at the master cylinder.

manual here.

StackPath



[Sunny6672]

Brilliant, ok it's an XC4 closed system with the pro levers life saver manual thanks
