Look Fournales Disc adapter to ISO2000?

[danson67]

This bridges the 1998 cutoff but...

As far as I know, all of the Look Fournales bolt-on disc adapters were pre-ISO 2000. A few people have asked me about adapting the adapter...pre-2000 to ISO 2000. This is what I did:

Rough cut and filed 3.5mm from the inside face of the mounting tab, carefully. This places the inboard face of the mounting tabs 4mm outboard of the dropout face. The shape of the milling depends on your caliper mount. Mine is for a Hope Mono Mini #5 caliper direct to ISO without a postmount adapter, others are likely to be more straight across:

Unfortunately this leaves the mounting tabs only 3mm thick, not the ISO 6mm+ but it does work (At your own risk).

Also increase the chamfer on the bottom inside edge of the adapter to about 6mm at around 30 degrees. This stops the rotor boltheads from fouling.

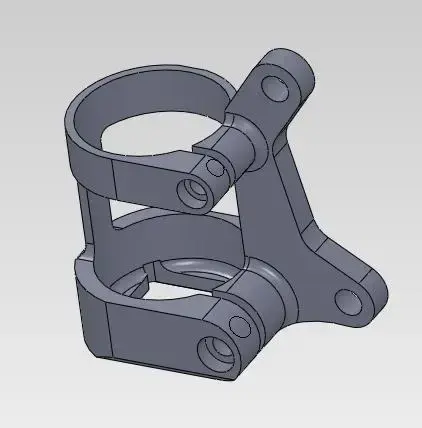

I've drawn up an ISO version of the adapter, with the mounting tabs rotated clockwise slightly for clearance and moved outboard:

But I think the whole thing could be designed a lot simpler, maybe two separate clamps around the leg and a bolted on mount bridging the two? What's the rotation risk?

Is there any interest out there for an ISO 2000 adapter? I'll farm around for some quotes if there's a demand. Otherwise, I'm happy to pass some untested CAD files around...dxf/STEP/IGES/SW etc. for CAM milling. Maybe even Laser Sintered RP, anyone?

Alternatively...if you're running a chunky caliper mount, like the cheaper Avid ones (rather than the finer forged or CNC milled ones):

it might be easier (and less risky) to just remove the thickness from around the mounting holes on that, and just chamfer the bottom of the (Hen's Teeth/Unicorn) Fournales part.

All the best,



[phoenix1973mtb]

Re:

do you still have CAD-files (STP) of the adapter?



[danson67]

Sure, just PM me an email address, and I'll send you out the files I have.
All the best,



[ijido]

Sure, just PM me an email address, and I'll send you out the files I have.
All the best,

Hi danson67, are you still there?



[ijido]

danson67 its my bicycle

So I think you know what help I need.
But I cant find option to PM for you.
Look dont have any data about parts so I write to Fournales.fr about CAD or other file to rebuild but no one answer to me. Because i my brakes adapter clamps are broke.
And I love this bike.



[just jacques]

My Fournales (prior model to yours) came with an ISO disc mount. It was supplied by Hagemeijer in The Netherlands the owners Father bought all the unsold Fournales stock from LOOK. I do know they don't have any complete forks left but they may have some parts.

Hagemeijer Tweewielers Gorinchem, Fietsenwinkel Scooters Fietsonderdelen

Scooter fiets en bromfiets van Hagemeijer Gorinchem. Nieuwe fietsen, scooters en bromfietsen bij hagemeijer tweewielers. Yamaha, Peugeot, Piaggio, koga myata, aprilia, honda, beta, italjet,kymco, benelli, hyosung, gilera, motorhispania, vespa, berg toys en winther fietsaanhangers.

www.hagemeijer.nl



[ijido]

THX, ill write to them.



[danson67]

My IGES file for the Fournales fitting adapter to ISO.

Feel free to download from my Dropbox: https://www.dropbox.com/scl/fi/p1aq...t-1.iges?rlkey=atwc56rri2e10saus4jb7zmcx&dl=0



It would be a hugely expensive part to have just one made. 3D printed in aluminium would probably be cheaper these days.
I haven't tried this model as a physical part, but could cheaply and easily be printed in plastic to check it first.
The original Fournales part is not ISO, since the face ot the mount does not have the ISO 4mm offset to the dropout face.

All the best,



[danson67]

If you can find an original part, you'll either need to find some pre-ISO caliper and hub, or convert the Fournales adapter to ISO like the one I did above.

All the best,



[ijido]

If your file is similar to Look-Fournales part it is no problem for me. My brakes working well with original part.
