Halson Inversion Forks

[yakboy]

Always fancied a pair as they really caught my eye back in the 90's but they don't often come up in the UK. Back in December a pair were offered for free on Facebook as they were in quite a state. Tim was based in Canada so postage was going to be steep, but as they were gratis I thought it would be rude not too try and rescue them. Tim posted them at the end of December and they took 4 months to arrive But escaped customs duty so the postage looked to be worth it. So this is how they arrived.

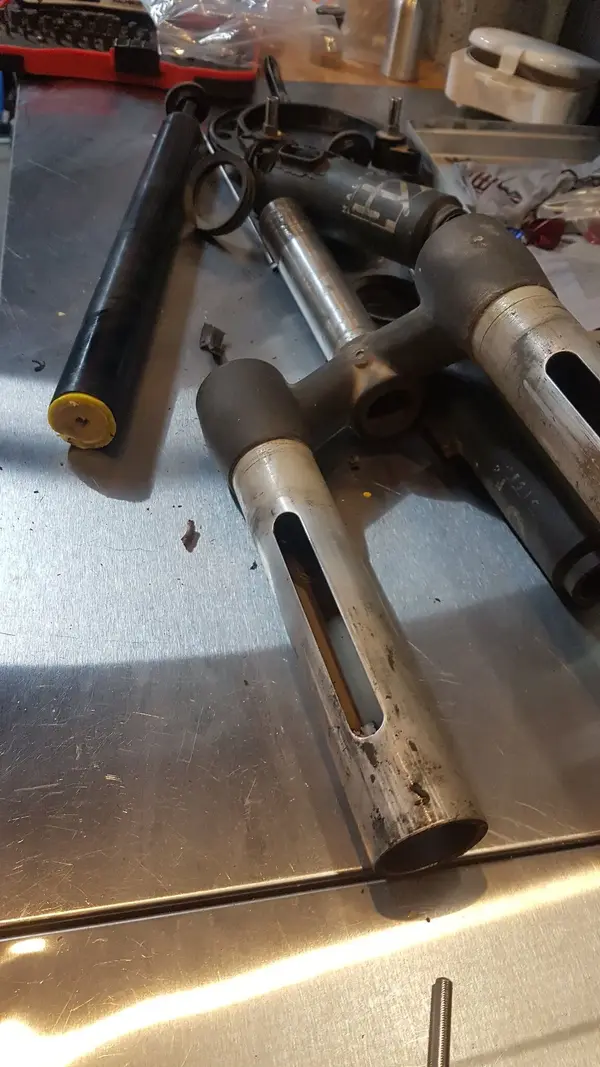

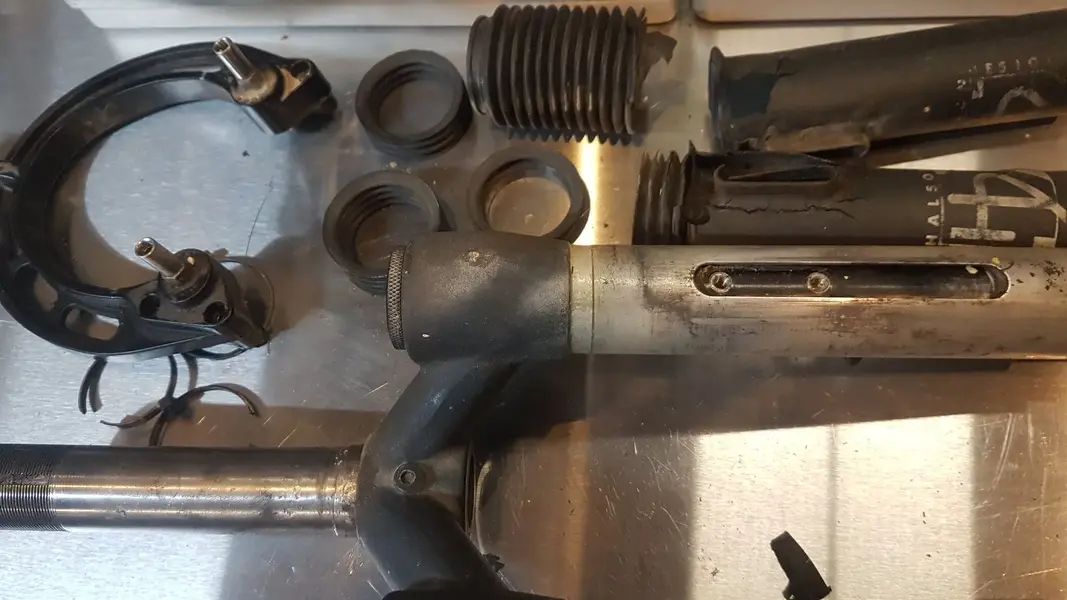

Siezed solid and looking a bit sorry for themselves but I was looking forward to stripping them to see how they were constructed.


Mmmm just as bad as Manitou elastomers

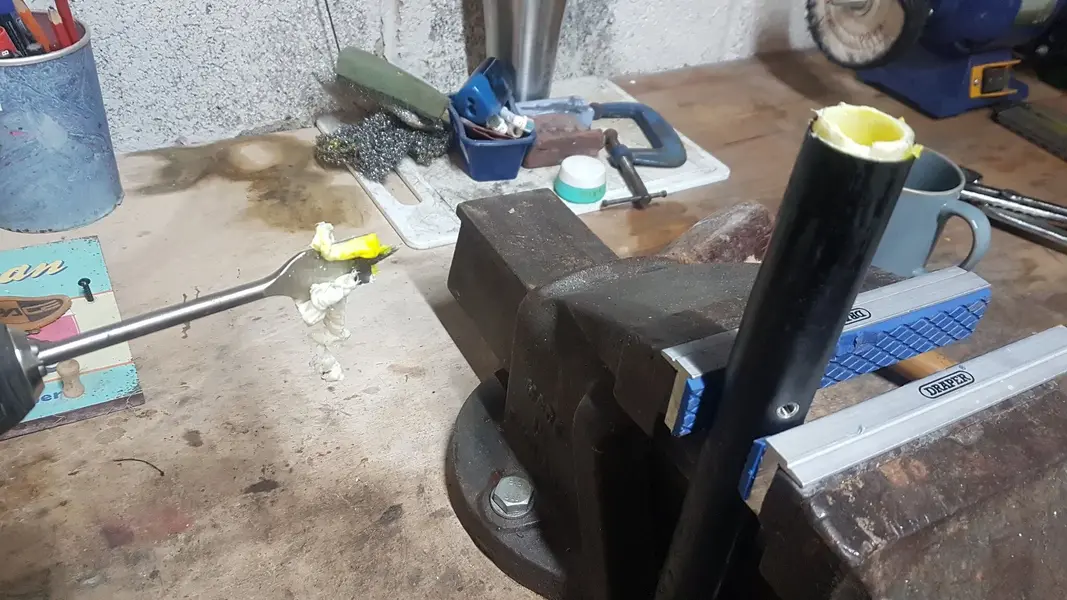

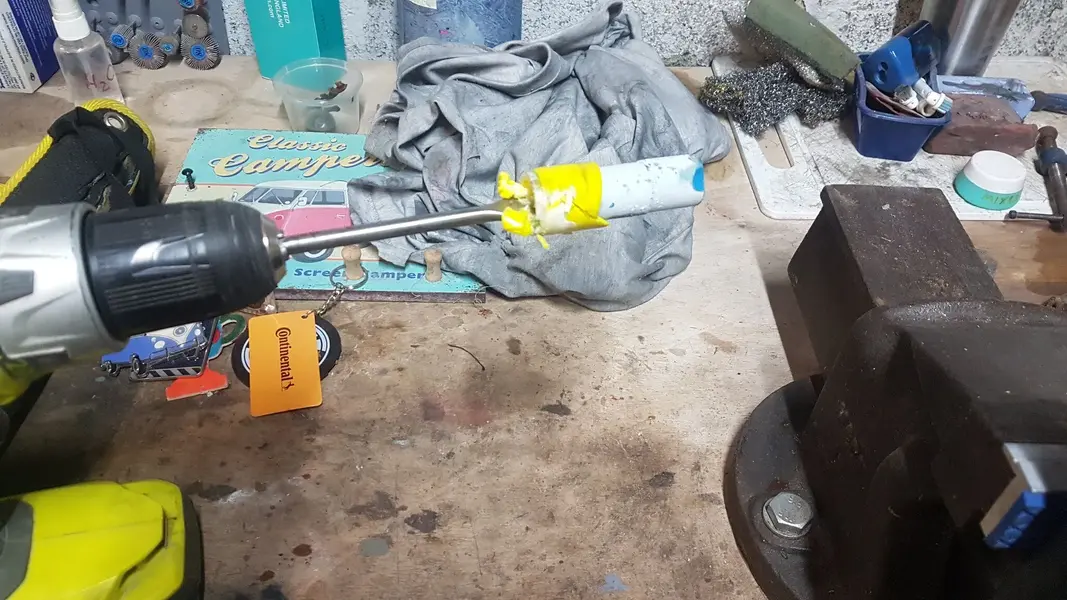

Desperate situations call for desperate measures

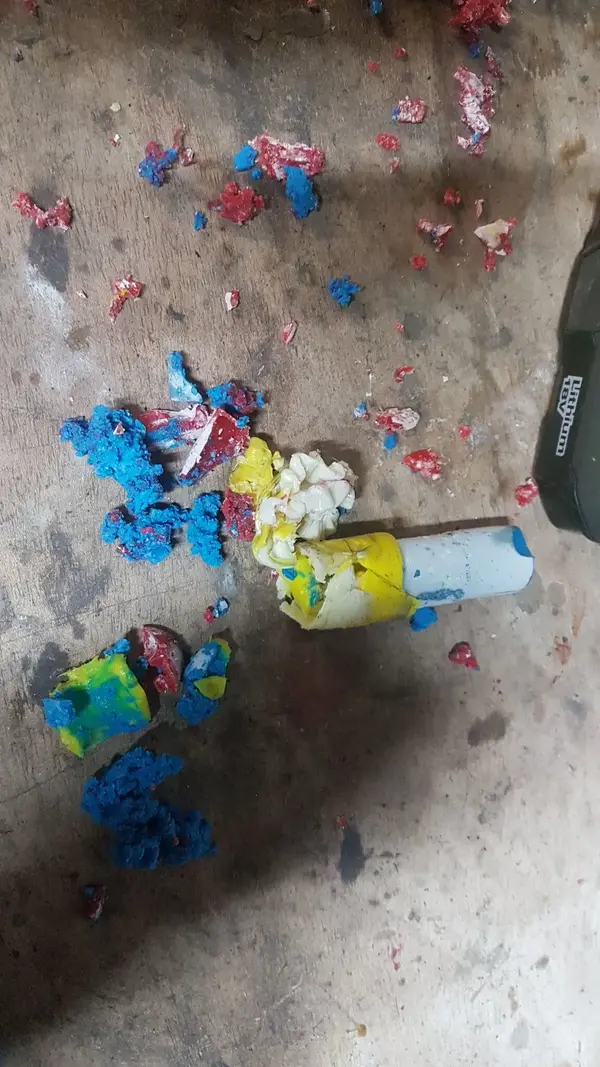

Elastomer goo, the stickiness substance known to man

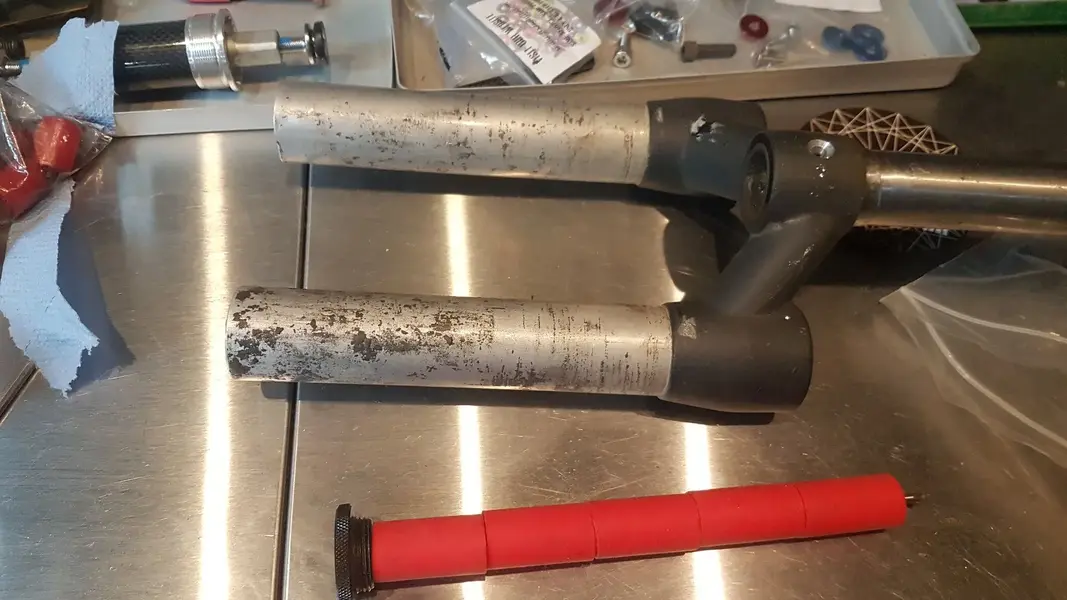

New silicone springs from...."Silicone Springs" of this parish. Bottom elastomer was narrowed with a bench grinder.

Now bouncing nicely So now I need to work out how to recreate the dust seals....not going to be an easy job

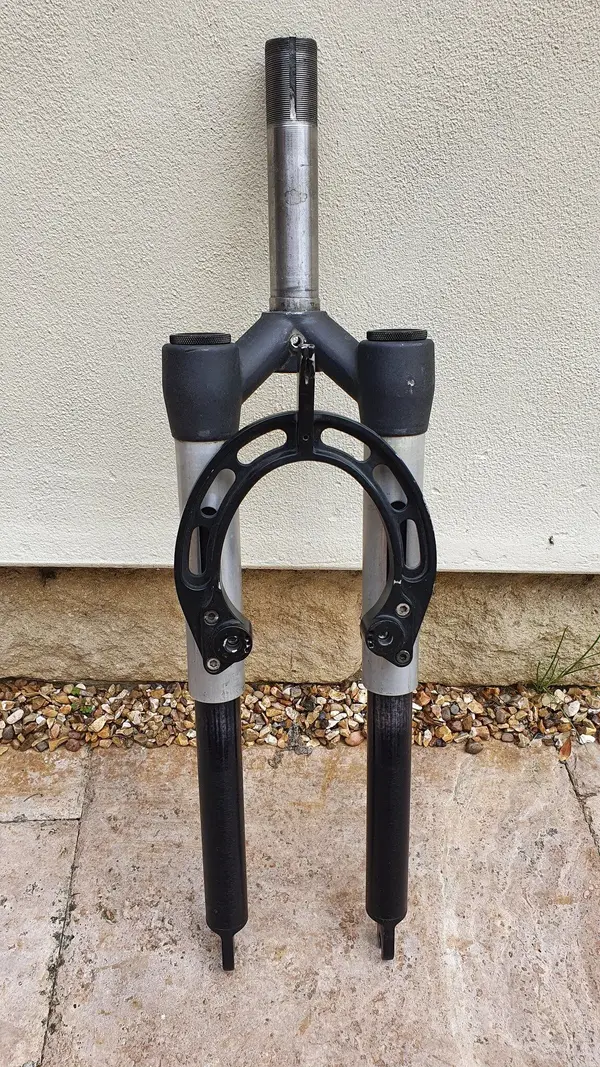

And needs some cosmetic work,.May change the steerer depending on the frame it's going onto.



[raidan73]

Nice job. Well worth the shipping cost just to have the opportunity to bring them back to life



[yakboy]

Nice job. Well worth the shipping cost just to have the opportunity to bring them back to life

Yeah, I was just interested in their construction



[jimo746]

They're "Different ", that's for sure.
Would neoprene fork boots like Lizardskins work in place of the unobtanium original rubber boots?
I had a set of these years ago and I think I did something like that



[mk one]

Good project. Still not sure whats going on inside though, is it just elastomers or is there a dampening cartridge also?



[Peachy!]

Quality work Mr Yak… I’ll have to pop over for a closer inspection soon



[yakboy]

Good project. Still not sure whats going on inside though, is it just elastomers or is there a dampening cartridge also?

Just simple elastomers on a skewer like Manitou's.



[yakboy]

Quality work Mr Yak… I’ll have to pop over for a closer inspection soon

Yeah, I need to drag you out for another ride



[toomanyframes]

This might be of some help? I was sent the link by a guy on here who had the same problem (as do I )

Fork Gaitors Small Black 225mm Long Top 25mm Bottom 34mm | eBay

Fork Gaitors Small Black 225mm Long Top 25mm Bottom 34mm Fork Gaitors Small Black 225mm Long Top 25mm Bottom 34mm.

www.ebay.co.uk



[yakboy]

This might be of some help? I was sent the link by a guy on here who had the same problem (as do I )

Fork Gaitors Small Black 225mm Long Top 25mm Bottom 34mm | eBay

Fork Gaitors Small Black 225mm Long Top 25mm Bottom 34mm Fork Gaitors Small Black 225mm Long Top 25mm Bottom 34mm.

www.ebay.co.uk

Thanks for the link. I have been in contact with Roc Fu at improvepart.com who is doing some great work reproducing Cannondale parts. If I can get an idea of the interest in getting these fork boots remade it may be worth his while producing a mould.
