I'll be keeping a close look on this thread. I myself have mild cerebral palsy to my left side which makes left hand shifting a right tw@! It sometimes means walking up hills that I wanted to ride up all because I can't get to the shifter fast enough. Braking isn't too bad but tricky for the rear sometimes.
Adaptations for disability
- Thread starter gavr
- Start date
- Feedback
- View
The Di2 worked well for the Amercian chap. He had no left hand, just a rest for his stump. He'd had to get used to right hand front brake with everything on the right.
This pic rings a distant bell - I'm sure the 'rear' brake was a bar end TT style lever
This chap seems to just have the one brake with a barcon for the front shifter
This pic rings a distant bell - I'm sure the 'rear' brake was a bar end TT style lever
This chap seems to just have the one brake with a barcon for the front shifter
Here's the vid on one hand 2x11 or 3x11 setup for Shimano XTR Di2:
http://youtu.be/lZGuwhSLcJU
It's pricey at the moment as it's only XTR, but it'll sift down like Di2 road did.
Alternatively...Alfine Di2: http://www.shimano-benelux.com/publish/ ... _di2.html#
All the best,
http://youtu.be/lZGuwhSLcJU
It's pricey at the moment as it's only XTR, but it'll sift down like Di2 road did.
Alternatively...Alfine Di2: http://www.shimano-benelux.com/publish/ ... _di2.html#
All the best,
Another rarity as a solution for the front shifter is a Schlumpf Mountain Drive.
You tap a button on the BB spindle with your heel to change gears on the front with an internal front hub gear kind of arrangement.
http://www.schlumpf.ch/hp/schlumpf/faq. ... e.engl.htm
It would save any shifter for the front.
You tap a button on the BB spindle with your heel to change gears on the front with an internal front hub gear kind of arrangement.
http://www.schlumpf.ch/hp/schlumpf/faq. ... e.engl.htm
It would save any shifter for the front.
Re:
No doubt there's some exciting developments around. Unfortunately being on sick leave is not an invitation to spend a couple of grand, unless someone can add some cheeky extra weights to my lottery balls!
I'm going to try to lash something up in the first instance around a road frame and some modern DA kit, 7800 or 7900 10 speed, cause that's what i happen to have. I'll have to sell on some kit to raise some cash though.
Got some presents coming tomorrow from the postie
No doubt there's some exciting developments around. Unfortunately being on sick leave is not an invitation to spend a couple of grand, unless someone can add some cheeky extra weights to my lottery balls!
I'm going to try to lash something up in the first instance around a road frame and some modern DA kit, 7800 or 7900 10 speed, cause that's what i happen to have. I'll have to sell on some kit to raise some cash though.
Got some presents coming tomorrow from the postie
- Feedback
- View
Got a spare barcon or two if you fancy that route
Re:
Thanks everyone very much for the ideas. Everything is taking ten times longer than before but I now have an almost complete, one-arm-built, left hand controlled retrobike!
I think I found probably the most straightforward way, Di2 aside (I couldn't on a retrobike even if it was no expense spared).

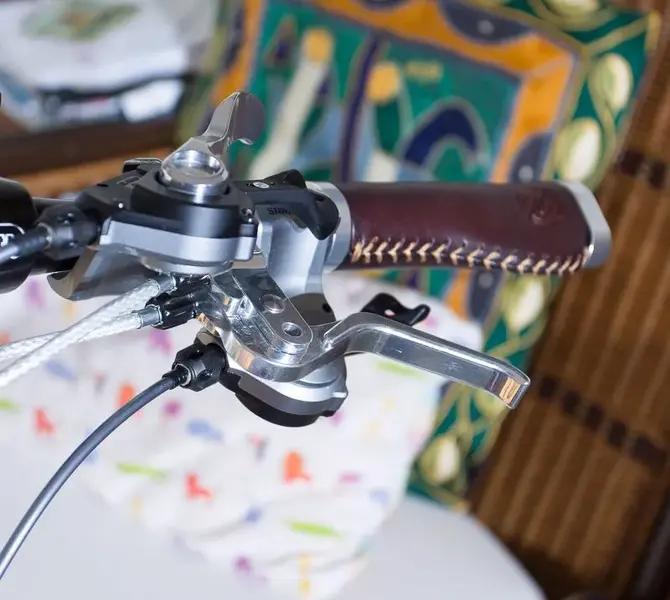

The Paul Duplex brake lever pulls two cables simultaneously and can be mounted left or right - it was invented for bike polo apparently, brilliant. Independent adjustment is then a matter of cable tension. The shifters are just Shimano ten speed thumbies, designed for road mechanisms not mtb, with the rear mounted upside down. You can probably see that the only problem looks like water would get in at the silver lever, but dry days only for me anyway. The upshot is everything can be done without taking the good hand off the bars, possibly an advantage over bar-ends.
Straight bars for the mounting diameters of the clamps but otherwise no compromises (apart from 10 speed if that counts). More piccies when it's done - need to get a fork painted.
Thanks everyone very much for the ideas. Everything is taking ten times longer than before but I now have an almost complete, one-arm-built, left hand controlled retrobike!
I think I found probably the most straightforward way, Di2 aside (I couldn't on a retrobike even if it was no expense spared).
The Paul Duplex brake lever pulls two cables simultaneously and can be mounted left or right - it was invented for bike polo apparently, brilliant. Independent adjustment is then a matter of cable tension. The shifters are just Shimano ten speed thumbies, designed for road mechanisms not mtb, with the rear mounted upside down. You can probably see that the only problem looks like water would get in at the silver lever, but dry days only for me anyway. The upshot is everything can be done without taking the good hand off the bars, possibly an advantage over bar-ends.
Straight bars for the mounting diameters of the clamps but otherwise no compromises (apart from 10 speed if that counts). More piccies when it's done - need to get a fork painted.
