Santa Cruz Superlight 1x10 - Sub 20lb :)

wadsy

BoTM Winner
Gold Trader
BoTY Winner
Feedback
View
I'd been looking for a grey anodised SL (with V-studs!) for quite a while. Aquired this one a few weeks back, built like this...



I fancied trying a 1x10 set-up and (surprise, surprise, for me!) I wanted lightweight as well :)

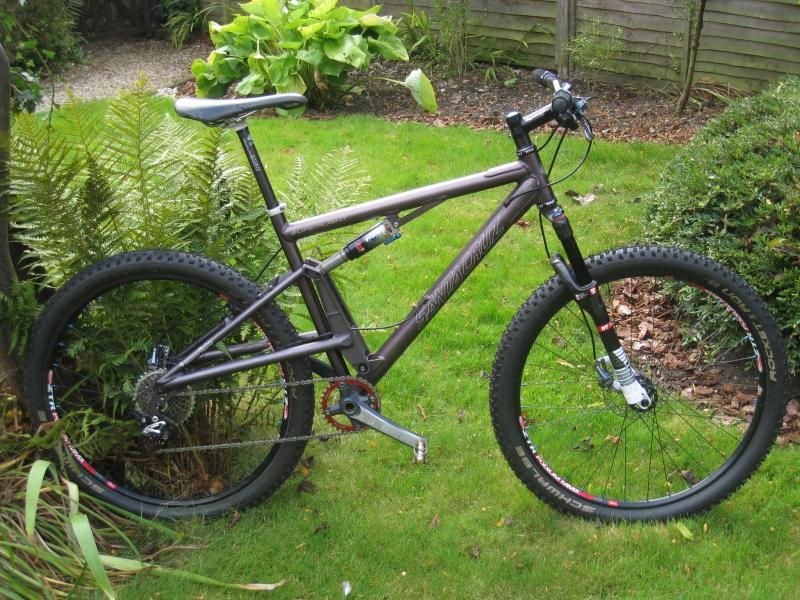

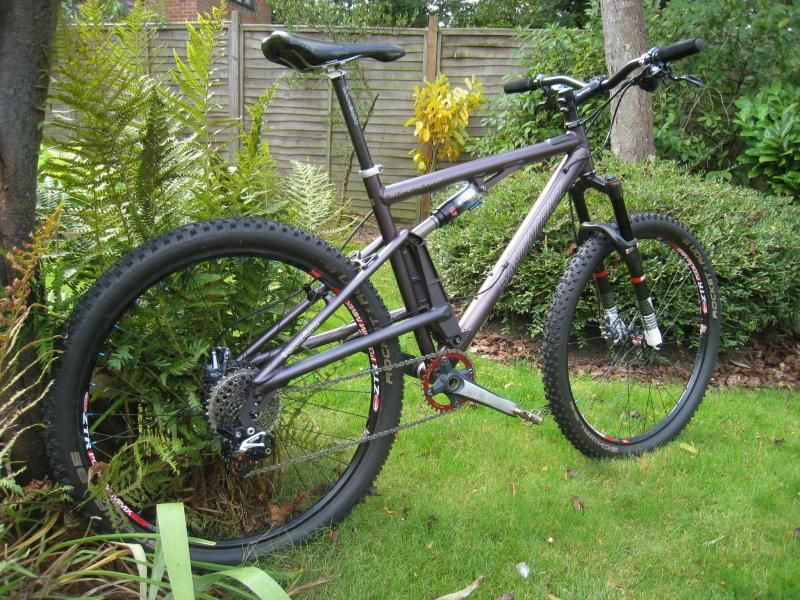

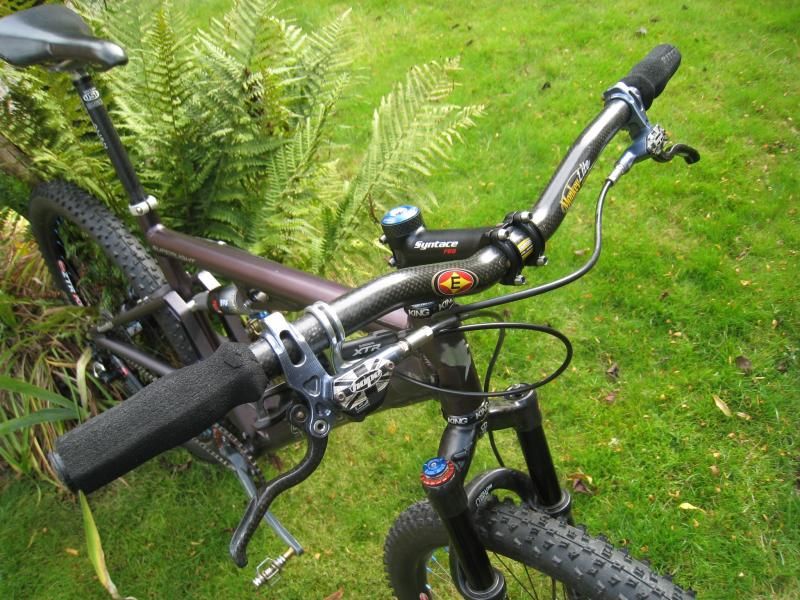

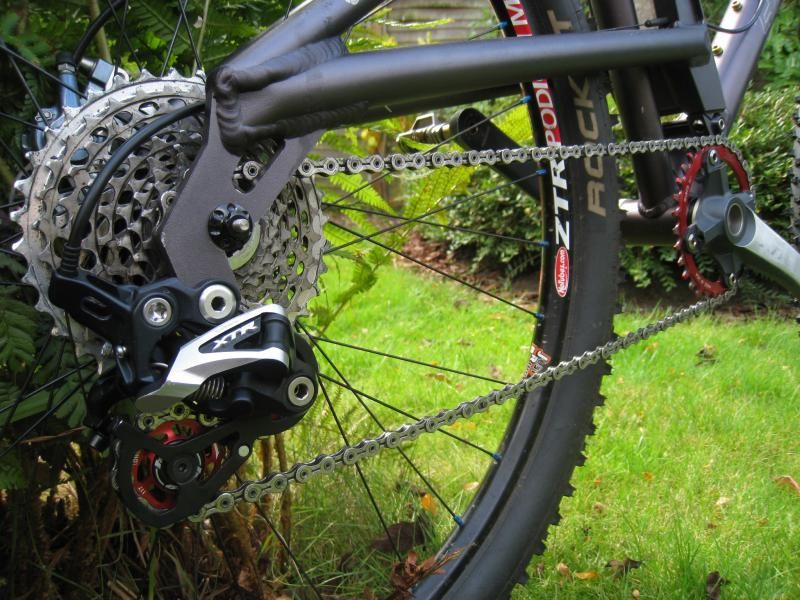

Now built up as below...







Spec:

Frame: Santa Cruz Superlight - 2066g (bare frame) + 295g (shock and bushes)
Fork: DT Swiss XCR 100 RLC - 1159g

Headset: Chris King No-threadset - 91g + 14g (crown race)
Top-Cap: Hope top cap and bolt - 8+3g
Stem: Syntace F99 (inc ti bolts) - 101g + Spacers (12g)
Handlebar: Easton CT2 Riser - 175g
Grips: Ritchey Foam - 24g

Brakes: Hope Race X2 - 214+252g (inc. adaptor, hoses and levers)
Mounting bolts and washers - 18g
Discs KCNC - 75g (160mm)+60g (140mm)+16 (ti bolts)
Shifter: XTR M980 10spd - 103g
Front Derailleur: NA
Rear Derailleur: XTR M980 (with Saint short cage) - 177g
Derailleur Cables: Quaxar outers - 6g+2g+1g + Powercordz inner 1g
Cassette: Sram XX (11-36) 10 speed - 208g
Chain: KMC 10SL - 242g
Cranks: XTR M970 - 535g
Chainring: Wolf 32T narrow/wide - 41g
Chainring bolts:Steel - 15g
Bottom Bracket: Shimano XT (Hollow Tech II) - 88g + 2g (spacers)
Pedals: Crank Bros Eggbeater 4Ti - 168g

Hub Skewers: KCNC - 46g
Rims: Stans Podium
Hubs: American Classic
Nipples: Alloy
Spokes: - 1262g (wheelset)
Tyres: Schwalbe Rocket Ron (2.25) - 888g
Tubes: Stans Fluid - 20g per wheel

Saddle: Flite Titanium Alpes - 198g
Seatpost: USE Alien Carbon - 189g + 21g (shim)
Seatpost Binder: Clamp + bolt - 17g + bolt 6g



Weight: Approx 8726g / 19.24lb



Cheers :)


wadsy

BoTM Winner
Gold Trader
BoTY Winner
Feedback
View
02gf74":2sf0buls said:
Nice, have tk am s big surprised at the weight....

Thanks :) ...sorry, I don't understand the rest of your post though :? ...could you please clarify?

Cheers


Totoro

Retro Guru
I really like the look of these. There is one on ebay that I'm trying to stop myself from bidding on.


Max P

Senior Retro Guru
Feedback
View
Nice indeed, I'd ditch the red ring for black, spacer above stem must go and so must the hateful ritchey grips.

And get some finishing caps for the fence posts. ;)


letmetalktomark

Retrobike Rider
Gold Trader
Feedback
View
Re:

Running Podium MMX rims is a weight concession to far for me - even in if was light enough to use them.

77kg maximum weight and a maximum mileage :shock:

A DT Swiss Nudie shock would look good and drop a few more grams :cool:


02gf74

Old School Grand Master
Feedback
View
wadsy":2qsyjuxc said:
02gf74":2qsyjuxc said:
Nice, have tk am s big surprised at the weight....

Thanks :) ...sorry, I don't understand the rest of your post though :? ...could you please clarify?

Cheers

Typing on smart phone was rxpressing surprise at how light it is.
