Modern compact 50/34 chainset on 90's braze-on frame

MyNameIsEarl

Dirt Disciple

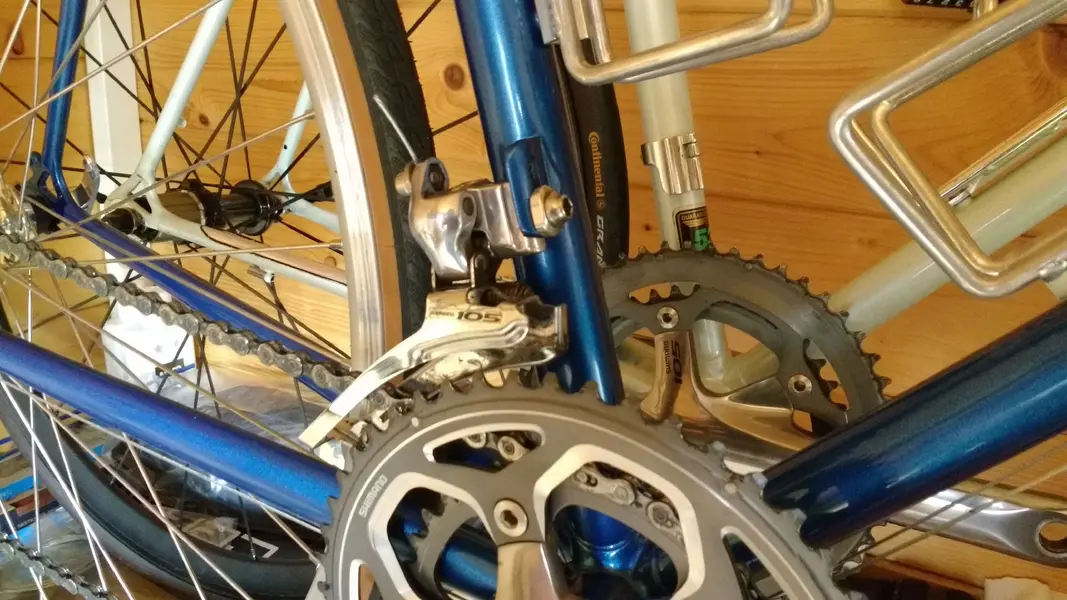

Hi, could you please let me know if they'll be any problems with my upgrade to a modern compact chainset on a 90's braze-on frame?

There's about a 7mm gap at the moment (should be 2-3mm!). The FD is at the bottom of the frame's braze-on, so there's no more adjustment available.

It shifts fine on the workstand, but will there be any issues if I run it like it's currently set up?


Attachments

  • IMG_20200629_112024138.jpg
    2.9 MB · Views: 524

Nob

rBotM Winner
PoTM Winner
Re:

It’ll be fine as the gap on using Q rings or oval rings is a lot bigger than your 7mm.

It just won’t be as smooth a shift & more chances of the chain being unshipped if you change very fast...


legrandefromage

Bin Monkey
BoTM Winner
PoTM Winner
GT Fan
Feedback
View

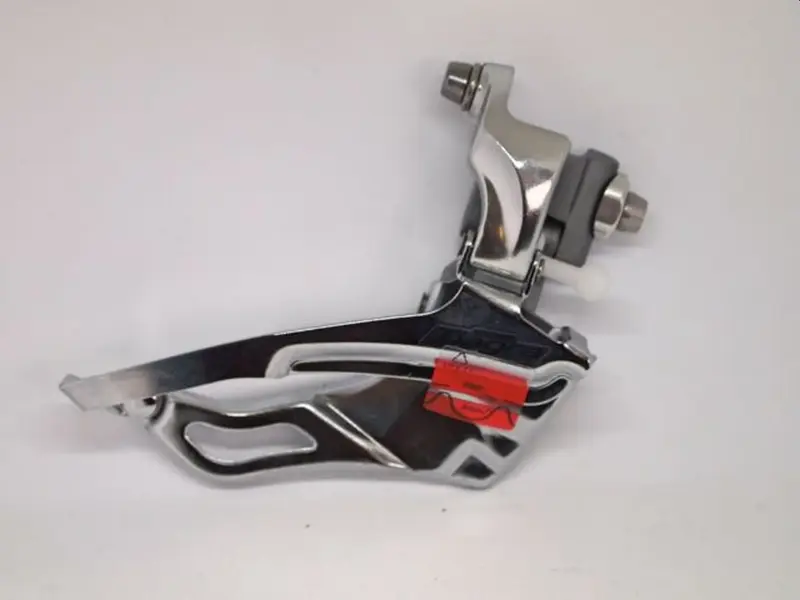

I'm sure this model of mech has its mounting bolt higher than yours, this would then allow the mech to sit lower on the frame mount


Attachments

  • tiagra triple.jpg
    tiagra triple.jpg
    100.6 KB · Views: 452
