Marzocchi Bomber Braces

sam_white

Retro Guru
As I was having a clean and sort out on Monday, it occurred to me that I had a variety of different Marzocchi Bomber braces to hand, clean and unbolted from their forks,
I've thrown them on the scales (I doubt any weight weenie would ever user a Bomber fork) mostly for my own interest but also shared here.

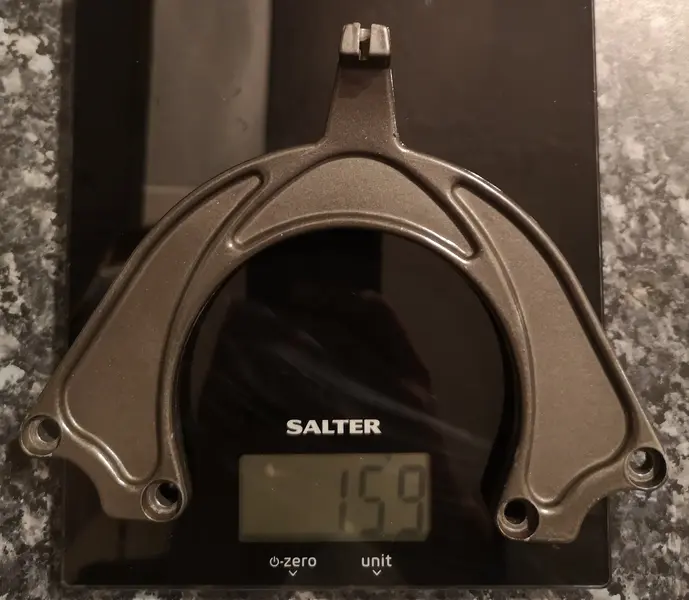

1997 Z3 Brace (with inbuilt cantilever hanger) 159g

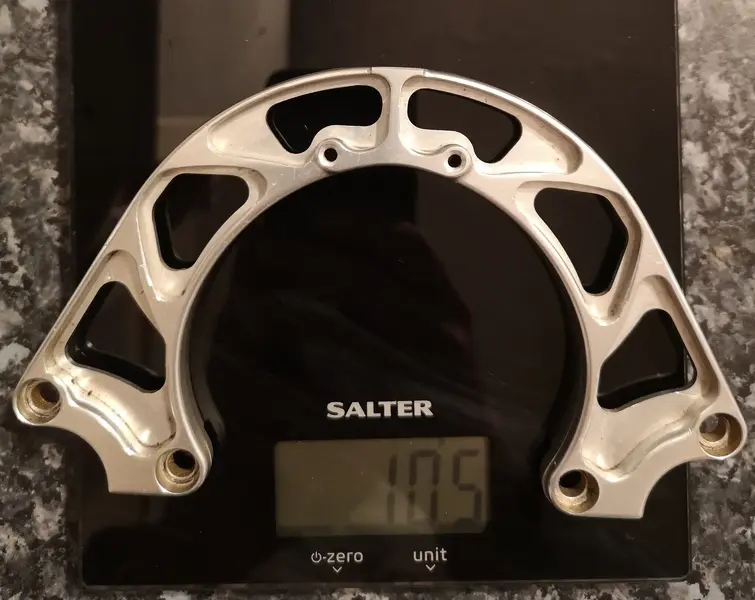

1998 Z1 Alloy Brace 105g

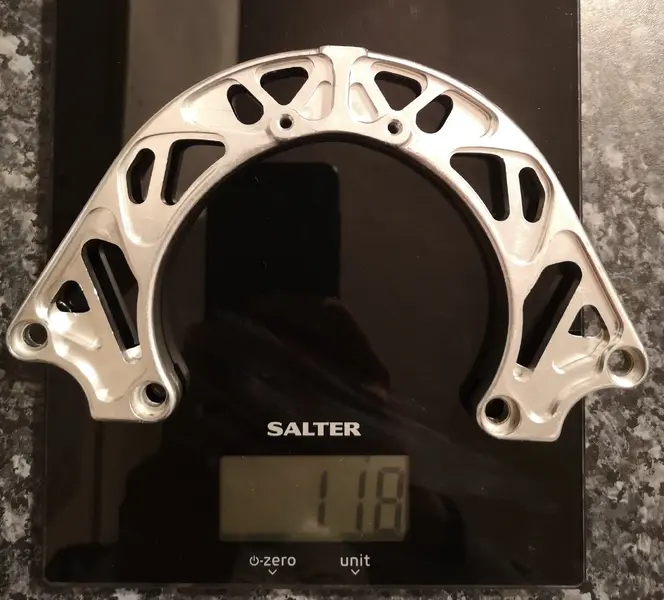

1999 Z1 QR20 Brace 118g

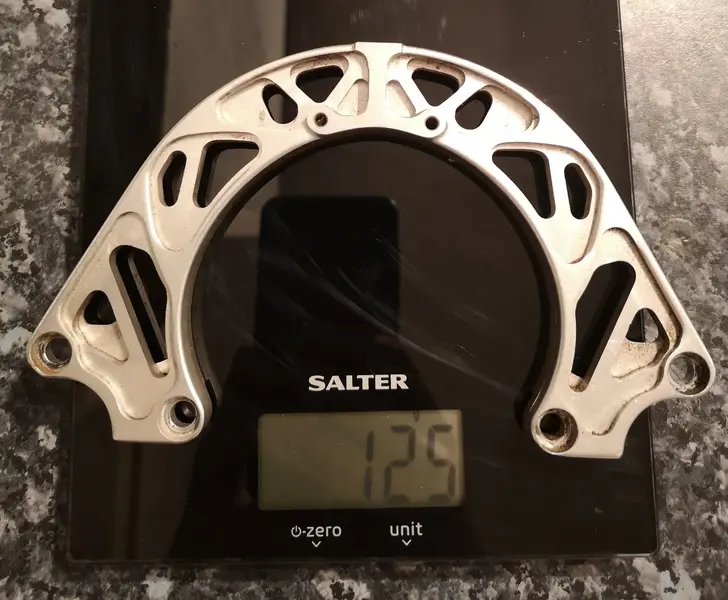

2000 Junior T Brace 125g

This is by no means a comprehensive assortment, missing of note are the Z3 style solid brace, but without the hanger, as seen on 1999 Z4 and Z5 forks, as well as the 1997 Z1 brace, similar to the 1998 but with fewer machined slots.

Aftermarket, there is the BETD brace which I have one of on a set of forks, plus the Blackspire variety. Are there others?

Somewhat surprised to see the later brace as fitted to 'BAM' forks is heaver than the 1998. Also interesting to see the difference in weight between the identical looking 1999 and 2000 braces.

Far to geeky, think I'll leave it there.


Attachments

  • 1997 Z3 Brace.jpg
    1997 Z3 Brace.jpg
    414.6 KB · Views: 5
  • 1998 Z1 Alloy Brace.jpg
    1998 Z1 Alloy Brace.jpg
    381.4 KB · Views: 5
  • 1999 Z1 QR20 Brace.jpg
    1999 Z1 QR20 Brace.jpg
    461.4 KB · Views: 4
  • 2000 Junior T Brace.jpg
    2000 Junior T Brace.jpg
    484.9 KB · Views: 5

kraeMit

Senior Retro Guru
Feedback
View
Nice, thanks for sharing.
I'd like to add the Z1 (1996++) one, also mounted on Z2's (1997++) and early Z2 BAM's (1999). It's weight is 146gr.


Attachments

  • Z1 Brace 1996++.jpg
    Z1 Brace 1996++.jpg
    717 KB · Views: 3
