Help with Raleigh Record Sprint bottom bracket replacement (1991-ish)

[MistyCold]

Hey guys,

My original crankset broke so I’m in the process of replacing it.

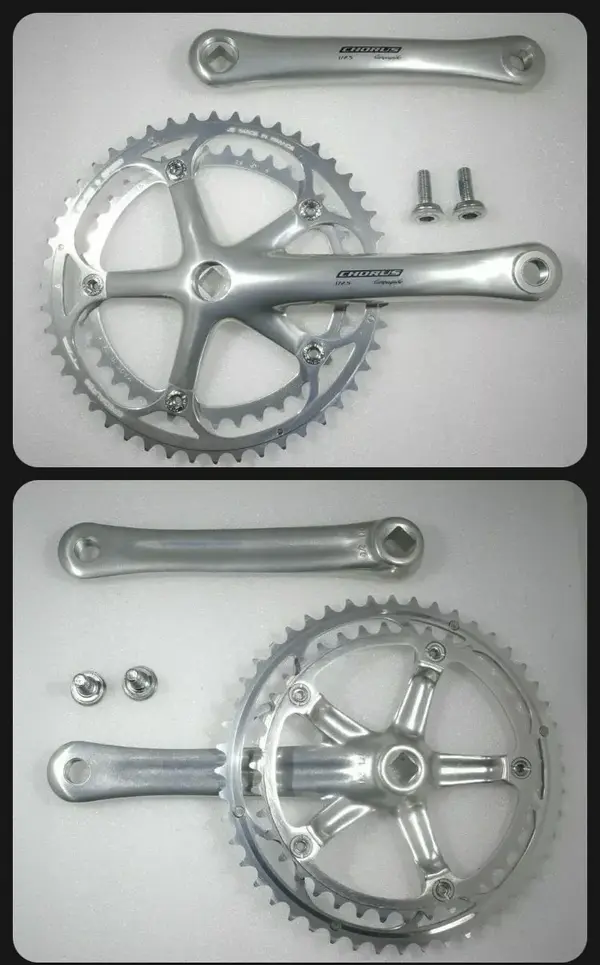

I’ve been gifted this Campagnolo Chorus crankset which I believe is Square Taper ISO.

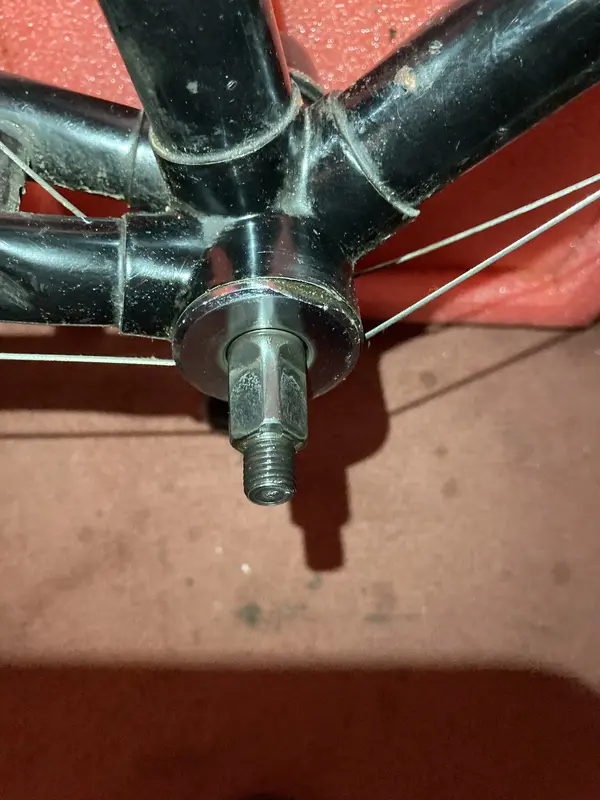

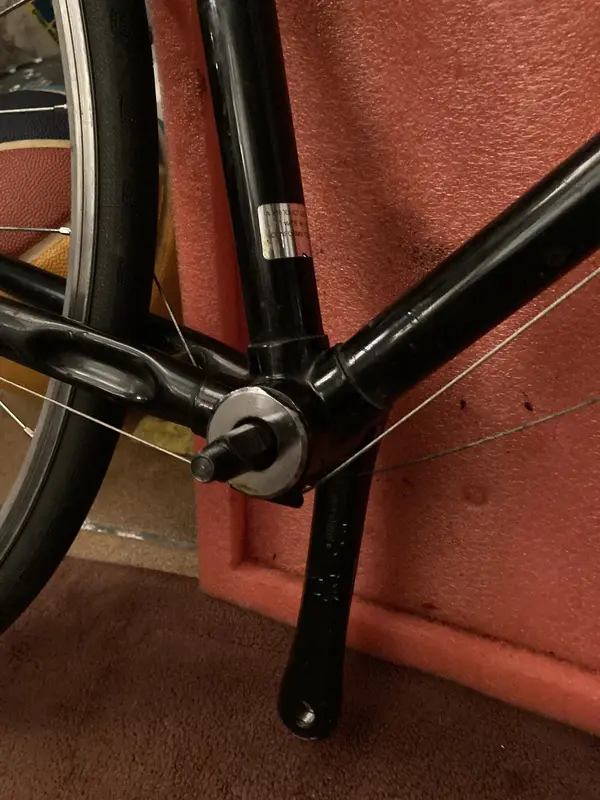

I think my bottom bracket is Square Taper JIS, with a threaded boss for a nut.

Can someone help me identify the correct bottom bracket (size, taper etc) replacement so that I can use this Campagnolo Chorus.

Thanks



[mdvineng]

According to Velobase 111mm iso bb is required



[rikster]

You'll be needing either a Chorus or Record sealed cartridge bearing bottom bracket with a 102mm axle length. Bit more info on the link which explains it, as your replacement crankset dates from the early 2000's.

Campagnolo Chorus bottom bracket

Three, sealed cartridge style, bearings; two on the chainring side and one on the non-drive side. Weighs just 220 grams; only 30 grams more than Record. 17 mm cro-moly steel, 102 mm hollow spindle fits 8, 9 and 10 speed Campy Record and Chorus cranks from 1995 to present. Unique taper is not...

thecycleclinic.co.uk



[hamster]

Agreed, it's the 102mm one.
