1990 Marin Pine Mountain (Rescue!)

sherlylock

rBotM Winner
Feedback
View
Frame: 1990 Marin Pine Mountain

Fork: Spinner Full Cro-Mo Oversize with cast end

Headset: Deore XT
Stem: Std Marin Lite
Handlebar: Marin Bulge - Alloy
Grips: Ritchey Foam
Barends: Marin - Cutdown (stubbies)

Brakes: Shimano Deore XT M732
Brake Pads: Shimano XT
Brake Cables: Clarks Premium Brake
Cantilever cable hangers: XTii
Brake Levers: Shimano ST-M095 XT

Shifters: Shimano ST-M095 XT
Front Derailleur: Shimano FD-M735 XT
Rear Derailleur: Shimano XT RD-M735 Shortie
Derailleur Cables: Clarks Premium Gear
Cassette: Shimano HG70
Chain: Clarks 7spd
Cranks: Shimano XT FC-M730
Crank Bolts: Std
Chainrings: Shimano SG c-46, Specialties TA 36t, c-24
Chainring bolts: Std
Bottom Bracket: Shimano BB-MT60 - cup 'n' cone
Pedals: Shimano XT PD-M735 (cartridge bearing version)

Hub Skewers:
Rims: Araya TM-18
Hubs: Shimano Exage
Nipples:
Spokes:
Tyres: Schwalbe Kojak
Tubes:

Saddle: Flite Titanium
Seatpost: Raleigh - 29.6mm
Seatpost Binder: Shimano XT

Weight: ~ 12.5kg

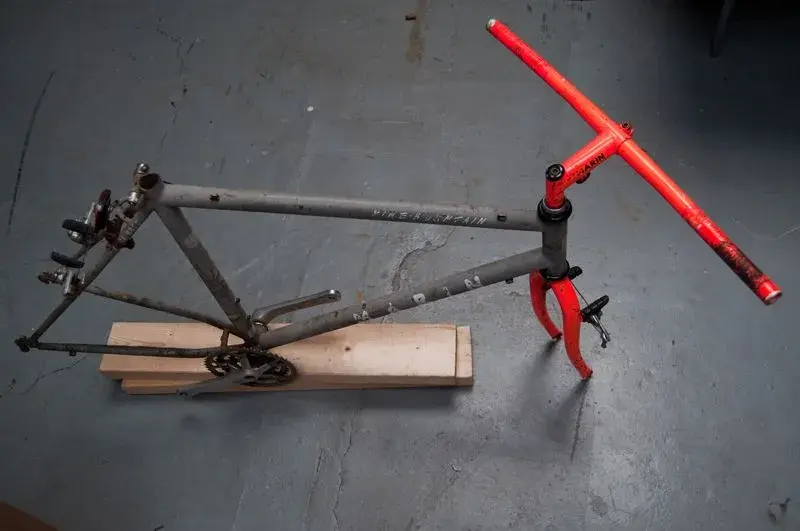

Here's my recent acquisition - bit of a resto project this one! 1990 Marin Pine Mountain in Zolatone 2000 grey/orange fluroscent. Obviously it hasn't been well loved and cared for but the price reflected that. The grief involved in actually getting the bloody thing delivered was impressive though - it took 3 weeks to arrive and when it didarrive it came with a Royal Mail fee of £14.69 to pay - somehow it had got through the system with no postage paid on it......:shock:

Since I've been commuting backwards and forwards to work I've come to realise that I need a big frame (I'm 6'2") - the 18" Palisades Trail that I currently ride is too small - cue long seat post and riser stem so that I can actually feel comfortable - so I've been on the lookout for a 19" Marin frame for a while to replace it. In browsing retrobike over recent months the early 90's Zolatone Marins have really caught my eye so when this "project" came up on eBay I took a punt on it. The paint is in pretty poor condition, it's presumably been stood outside for a while and the forks/stem/handlebars are pretty badly chipped. But it's not dented or bashed around so it seems to be a good basis for a resto.......


Attachments

  • deore.jpg
    346 KB · Views: 9,340
  • decals.jpg
    215.5 KB · Views: 9,340
  • pine mountain2.jpg
    pine mountain2.jpg
    292.1 KB · Views: 9,340
  • pine mountain1.jpg
    pine mountain1.jpg
    325 KB · Views: 9,340

type49

Retro Guru
Cool, get it stripped!! Are you going for same colour scheme & are you using the current bike as a donor for all the bits????


sherlylock

rBotM Winner
Feedback
View
type49":34zfom95 said:
Cool, get it stripped!! Are you going for same colour scheme & are you using the current bike as a donor for all the bits????

I've stripped everything back with the exception of removing the bottom bracket, cleaned up the frame as best I can, cleaned up the cranks and the brakes and reassembled it all for the time being. It seems Zolatone cleans up quite well using wire wool! (carefully) It's certainly tough stuff.....

I'll probably swap the components over from the Palisades to get it on the road with a view to upgrading - it's all lower spec Alivio stuff though, but it will do for now.

Colours will be as original but I might opt for a darker grey like the '91 models and stick with white decals. I stopped off at B&Q and Halfords today to see what paints are available in an attempt to replicate the zolatone....seems Plastikote do a range of aerosol textured paints so I've bought a can to try out (it's called "stone" and is a grey/black fleck texture). Also got some Halfords bumper paint - apparantly it's quite durable/flexible. I'm thinking of laying the texture paint down first then finishing with a colour coat of bumper grey over the top.....


type49

Retro Guru
Cool, dont get the Halfrauds flo orange though, I used their flo yellow/green on my marin & it took forever to cover & give an even colour


sherlylock

rBotM Winner
Feedback
View
type49":2mjqhvfv said:
Cool, dont get the Halfrauds flo orange though, I used their flo yellow/green on my marin & it took forever to cover & give an even colour

Nice one - thanks for the heads up on that - I was after some fluro orange made by Plastikote but B&Q didn't have any. Halfords were also out of stock of their fluro paints (apart from Yellow) but I would've bought the Orange if they'd had it.

Does it just not coat particularly well then?


marc two tone

Retrobike Rider
Feedback
View
sherlylock":ec0zs6sr said:
type49":ec0zs6sr said:
Cool, dont get the Halfrauds flo orange though, I used their flo yellow/green on my marin & it took forever to cover & give an even colour

Nice one - thanks for the heads up on that - I was after some fluro orange made by Plastikote but B&Q didn't have any. Halfords were also out of stock of their fluro paints (apart from Yellow) but I would've bought the Orange if they'd had it.

Does it just not coat particularly well then?

lesser brands take a million coats and you still don't get flouro effect.

study this very similar resto job---> http://www.retrobike.co.uk/forum/viewto ... c&start=30

he did a splendid job and wasn't shy about sharing the paint source.

pine mountains' are a lovely bike. keep us updated with any progress.

:cool:


superstu

Retrobike Rider
Feedback
View
Love these zolatone marin's, good find. Watching with interest. Are you not tempted to pay someone to do the paint or are u comfortable doing it yourself?


sherlylock

rBotM Winner
Feedback
View
marc two tone":1leucual said:
lesser brands take a million coats and you still don't get flouro effect.

study this very similar resto job---> http://www.retrobike.co.uk/forum/viewto ... c&start=30

he did a splendid job and wasn't shy about sharing the paint source.

pine mountains' are a lovely bike. keep us updated with any progress.

:cool:

This is indeed one of the threads that has made want to get hold of a zolatone Marin - top job! It was also this thread that had me running off to B&Q to see if I could get hold of the fluro paint.......


sherlylock

rBotM Winner
Feedback
View
superstu":1mjniqpb said:
Love these zolatone marin's, good find. Watching with interest. Are you not tempted to pay someone to do the paint or are u comfortable doing it yourself?

I'm gonna have a bash at it myself - I've resprayed stuff in the past and have been fairly successful, although the zolotone may prove hard to replicate.

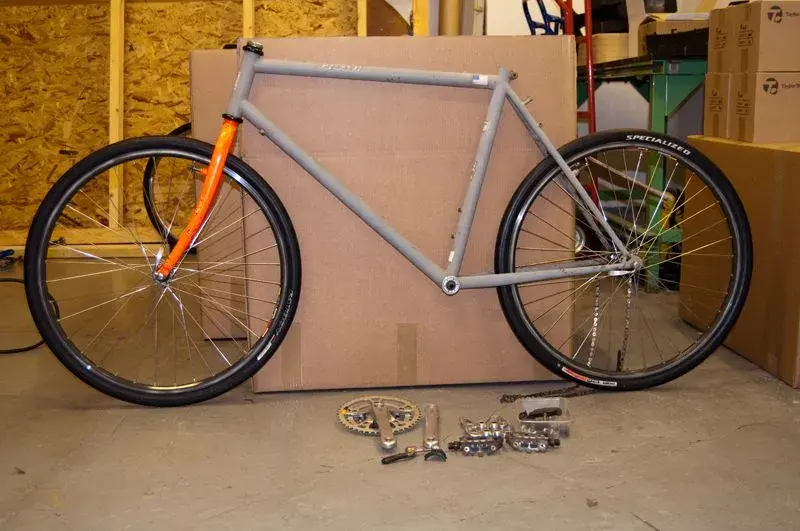

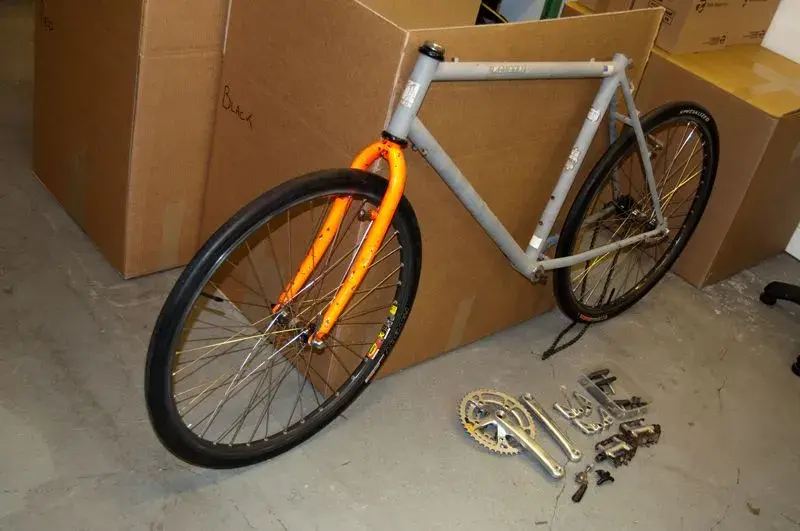

I've cleaned up the frame a bit and removed some of the knackered stickers (after photographing them for the record) and borrowed the wheels off the MTrax. It's looking a lot better......I'm sorely tempted (for the time being) to respray the forks, touch in all the chips in the grey, chuck some new graphics on and get riding it.


Attachments

  • pm5.jpg
    326.6 KB · Views: 9,143
  • pm4.jpg
    364.2 KB · Views: 9,143
  • pm3.jpg
    406.6 KB · Views: 9,143

sherlylock

rBotM Winner
Feedback
View

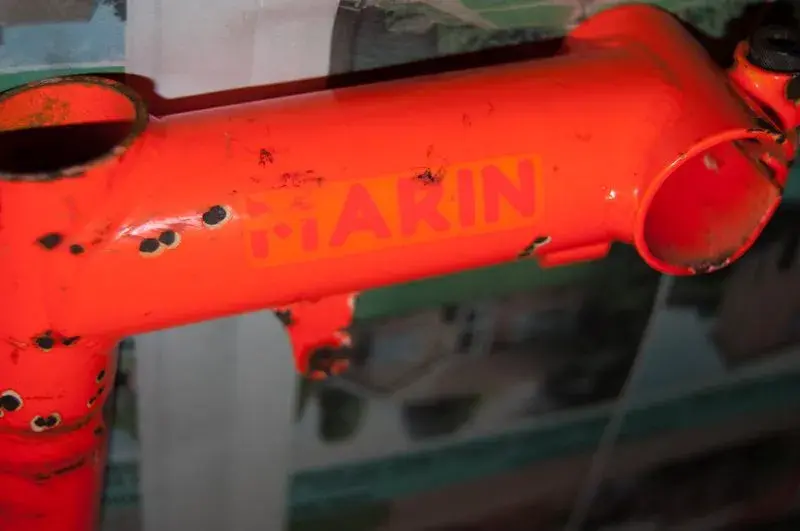

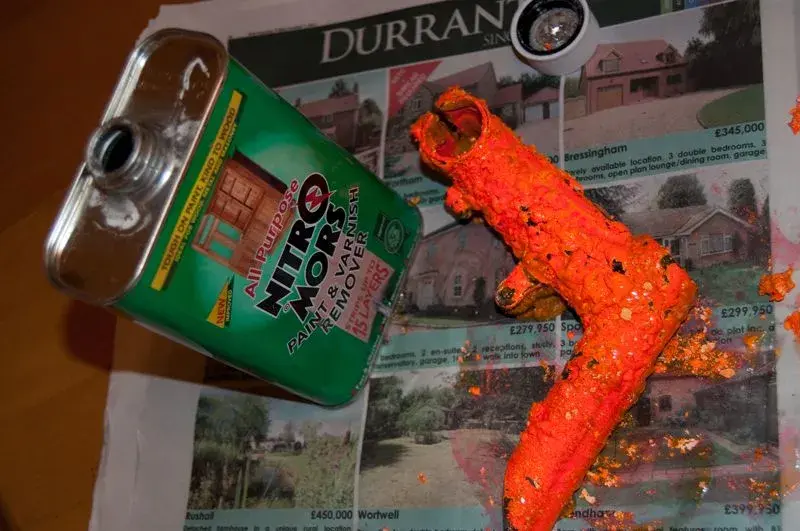

Stripping! Nitromors works a treat. - Thought I'd have a go at renovating the orangy bits first.....Acid Etch primer, white undercoat and fluro Orange paint all on order! Seems these orange bits are also prone to some bad fade - 20 years of UV exposure and the Marin decal is still evident on the stem even after I've removed it......


Attachments

  • fade.jpg
    236.1 KB · Views: 9,077
  • nitromors.jpg
    404.6 KB · Views: 9,077
