1988 Specialized Stumpjumper Comp

I_am_Will

Retrobike Rider
Gold Trader
Feedback
View

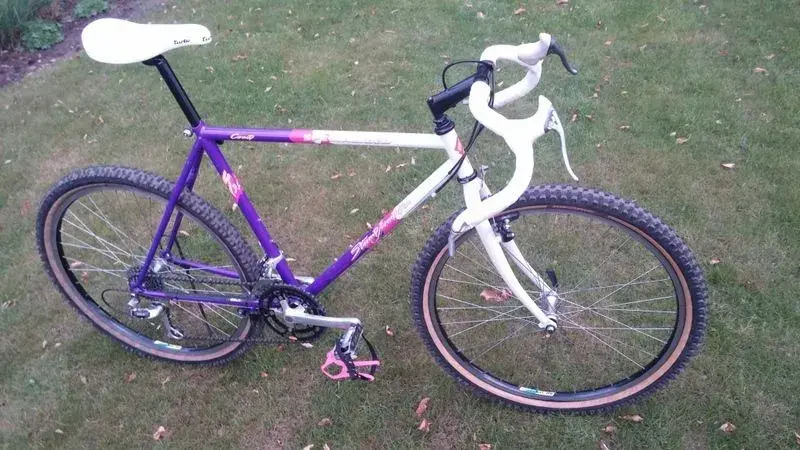

Frame: 19,5" Specialized Stumpjumper Comp

Fork: Direct Drive Cro-Mo

Headset: Shimano XT 1 inch
Stem: black alloy 1 inch 120mm, 10 degrees
Handlebar: race black alloy 36-50cm

Brakes: Front: XT BR-M732, Rear: XT BR-M733 U-brake
Brake Pads: Shimano XT
Brake Cables: Shimano Deore
Cantilever cable hangers: Shimano
Brake Levers: 600 Tricolor

Shifters: Dura Ace Bar end shifters SL BS77
Front Derailleur: XT FD-M730
Rear Derailleur: XT RD-M730 7 speed
Cassette: Hyperglide 12-14-16-18-21-24-28
Chain: Hyperglide HG70
Cranks: XT FC-M730 46-36-24
Bottom Bracket: UN 55
Pedals: XT with Specialized mountainclips

Hub Skewers: XT
Rims: Araya RM 17
Hubs: XT
Tyres: Front: Specialized Team Control 26x2.00; Rear: Specialized Team Master 26x1.90

Saddle: White Turbo (re-issue)
Seatpost: alloy 26.4
Seatpost QR: XT


Attachments

  • 20150429_203356.jpg
    88.6 KB · Views: 5,294
  • 20150429_203449.jpg
    93.8 KB · Views: 5,295
About a year ago I missed out on a Specialized Rock Combo. One of the Specialized bikes I didn’t have.

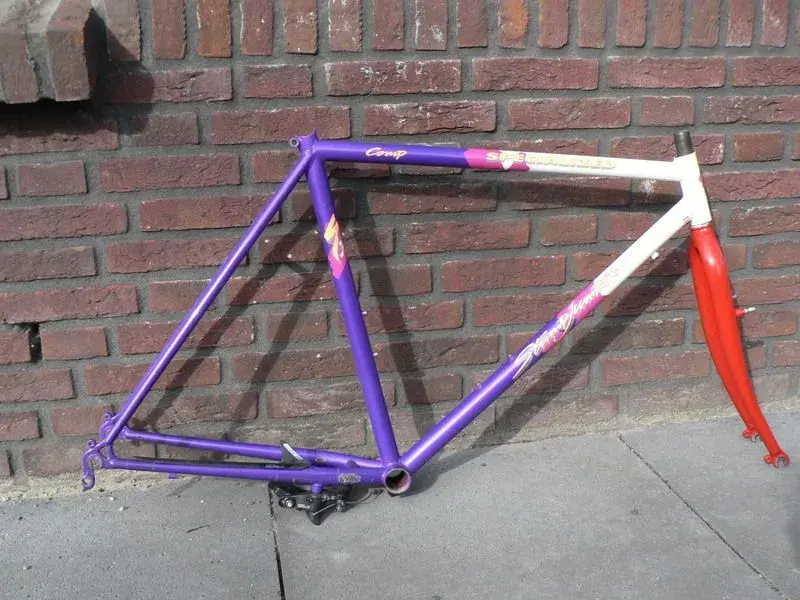

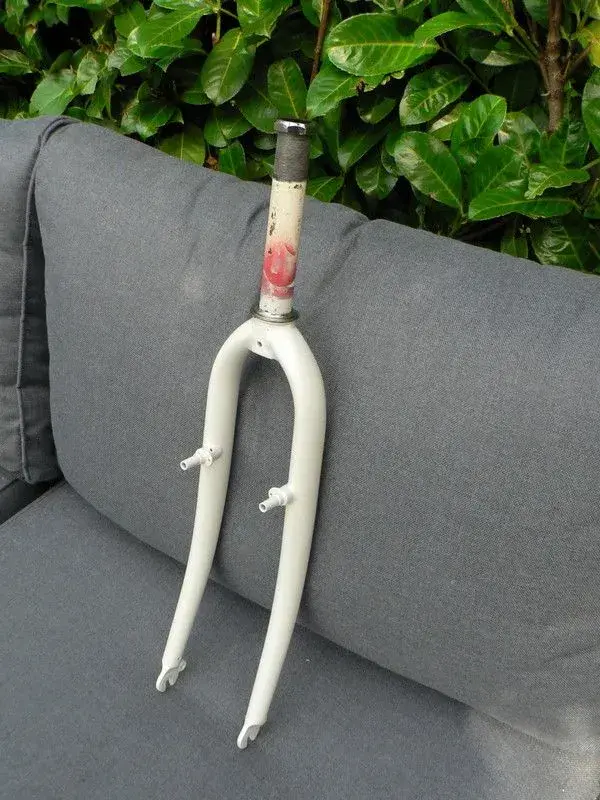

Not long after that Bart aka stumpjumper1990 offered me this 1988 Stumpjumper Comp frame. He didn’t had the original fork, but he found a good replacement for it…except it was red…

So this one went to the painter (and stayed there for a month or four..). In the meantime I could collect the parts for this build.

I wasn’t sure if a drop bar would be a good thing on a mountainbike, but this bike is worth a try…. And I like it!


Attachments

  • P1170003.JPG
    96.7 KB · Views: 5,264
  • P1160202.JPG
    91.9 KB · Views: 5,264
Very nice indeed! Keep the drop bar!

Is that a paint or a powdercoat? Where have you had it painted?

Very nice job, I would try a more upright stem though

troje":11bo6hnt said:
Very nice indeed! Keep the drop bar!

Is that a paint or a powdercoat? Where have you had it painted?

I've had it painted by Sebastien. I know the owner.

It's painted, not powdercoated. The paint is pearly white ( :? ), but is was a tough job to find the right paint for the fork to match it with a 26 year old discolored frame...
