1986.5 Cannondale SM600

DrGooGoo

Devout Dirtbag
Picked up this frame for 60$ US. The serial number indicates that it was made in 1986, but it is painted in a 1987 color. I did some research. This one came out in the second half of 1986. The ones in this color that came out in 1987 had some graphics painted on the seat tube. In the second half of 1986 they were offered in this lime color green and bubble gum pink. I think I'm gonna repaint this one bubblegum pink since it will be ridden mostly by my girlfriend. I currently have a 1986 SM600 in yellow (posted below) that she loves and I want back! So building this one to match (Suntour XC). I found a Suntour XC stem and Nitto bars from an old stumjumper that cleaned up nicely. Also, I cleaned up a Sakae seatpost from my parts bin that fits perfectly. Got the decals and reproduction top tube cable clips from the Vintage Cannondale website. Gonna be a slow build. Busy at work now :)


Attachments

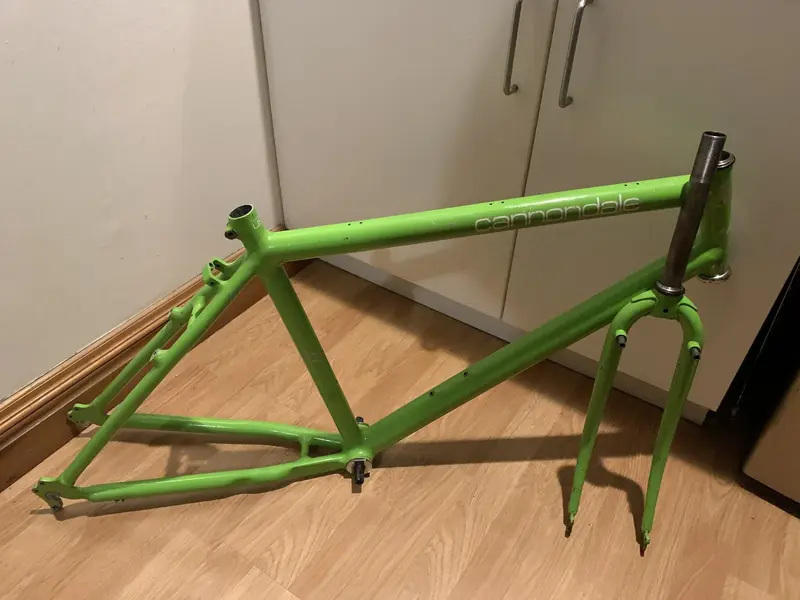

  • 1 Frame.jpg
    1 Frame.jpg
    322.2 KB · Views: 91

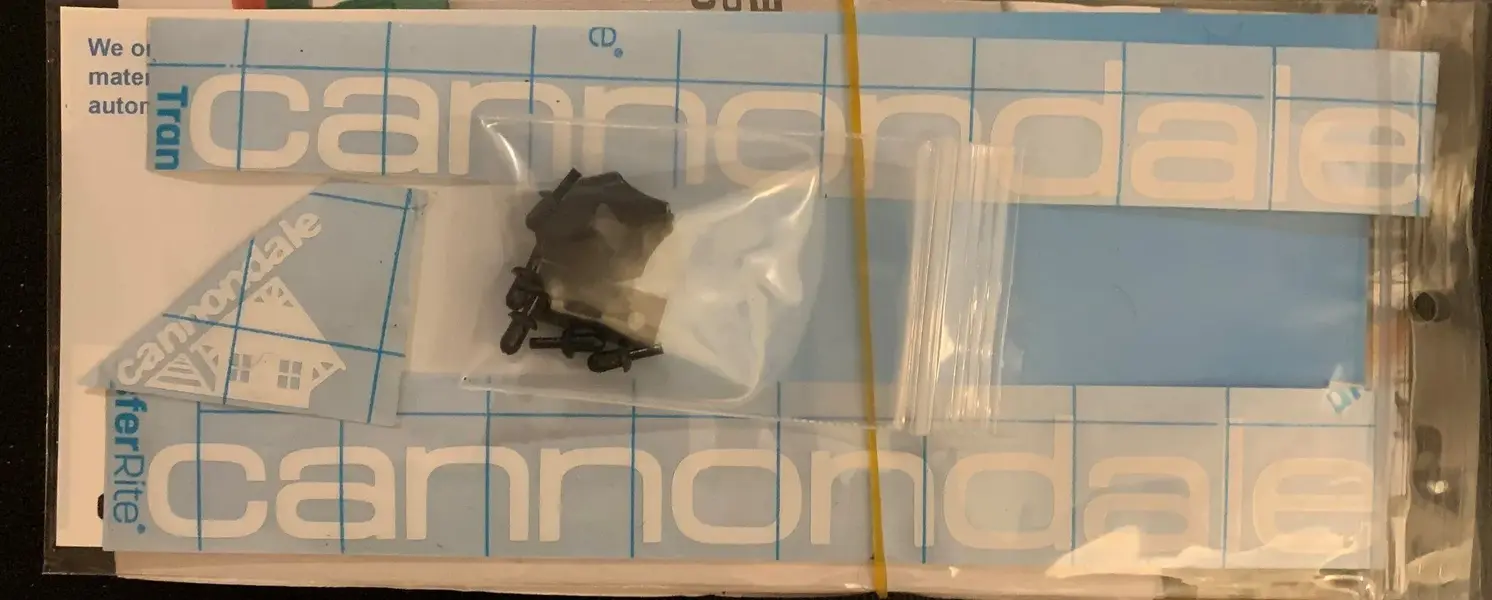

  • 2 Decals and Cable frame clips.jpg
    2 Decals and Cable frame clips.jpg
    194.3 KB · Views: 67
  • 4 Handlebars and stem.jpg
    4 Handlebars and stem.jpg
    268.2 KB · Views: 51

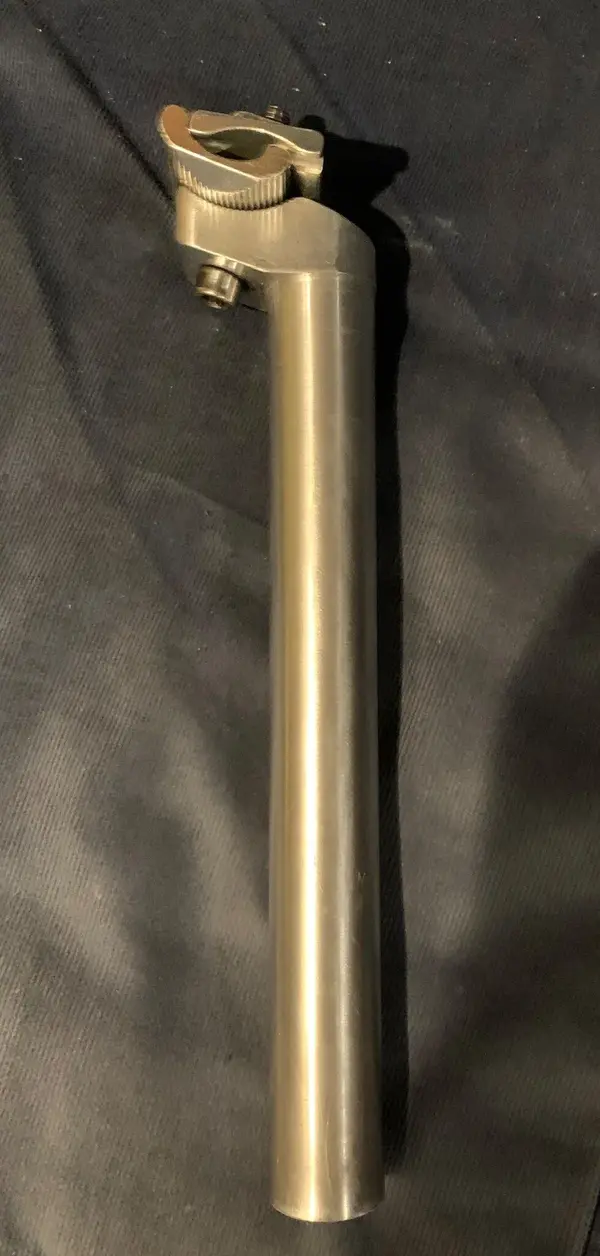

  • 8 Seatpost.jpg
    8 Seatpost.jpg
    299.4 KB · Views: 76
  • IMG_0464.JPG
    344.2 KB · Views: 91
Last edited:

DrGooGoo

Devout Dirtbag
Got the cockpit sorted out.


Attachments

  • 5 Brake Levers and shifters.jpg
    5 Brake Levers and shifters.jpg
    689.7 KB · Views: 28
  • 6 Grips.jpg
    6 Grips.jpg
    478.9 KB · Views: 46

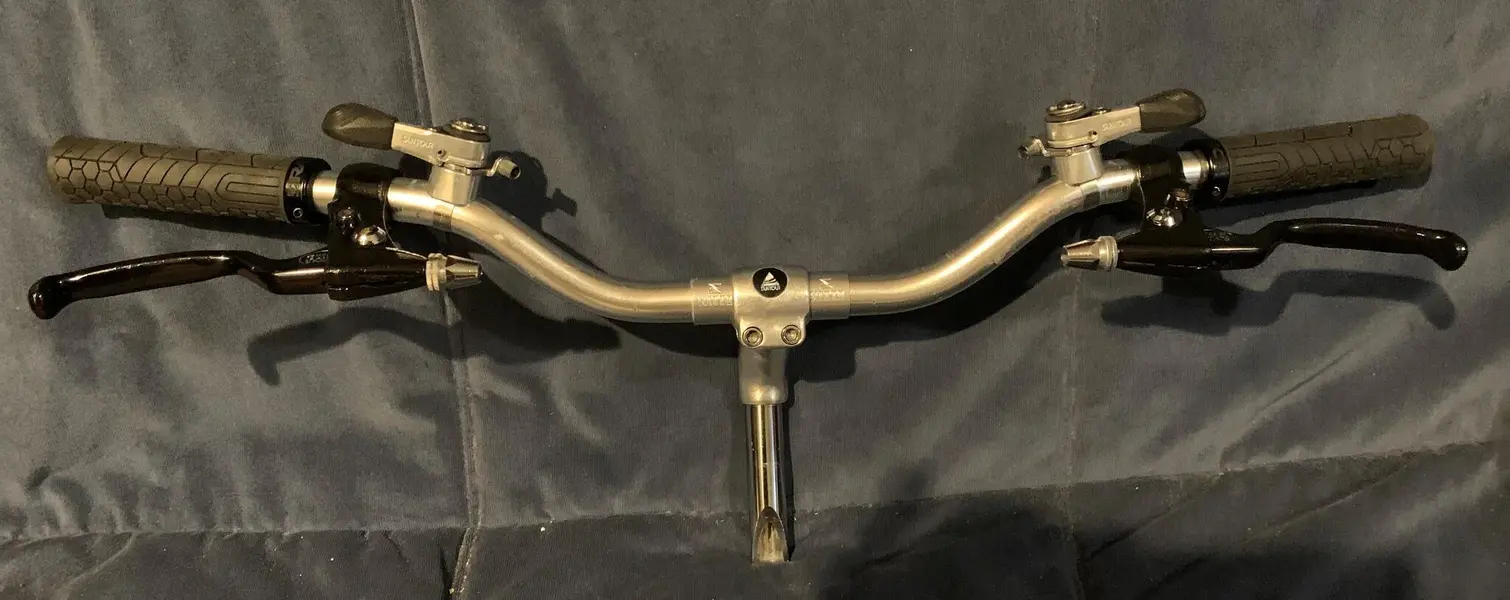

  • 7 Cockpit Assembled and touched up.jpg
    7 Cockpit Assembled and touched up.jpg
    279.5 KB · Views: 46

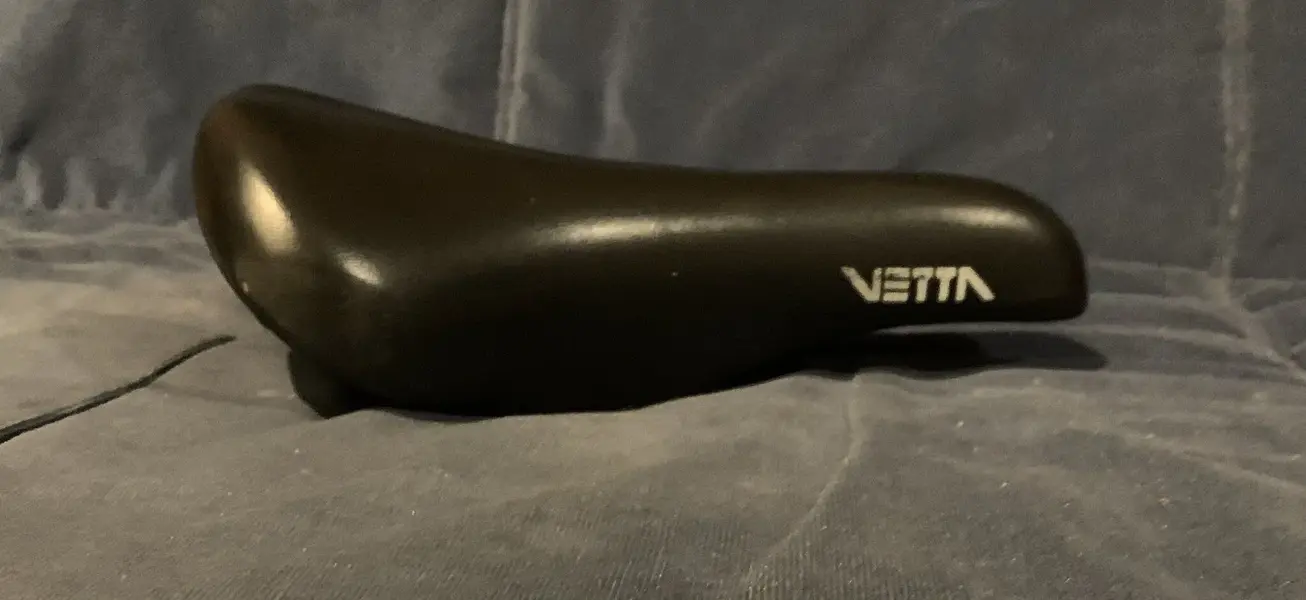

  • 9b Seat.jpg
    9b Seat.jpg
    255.8 KB · Views: 44

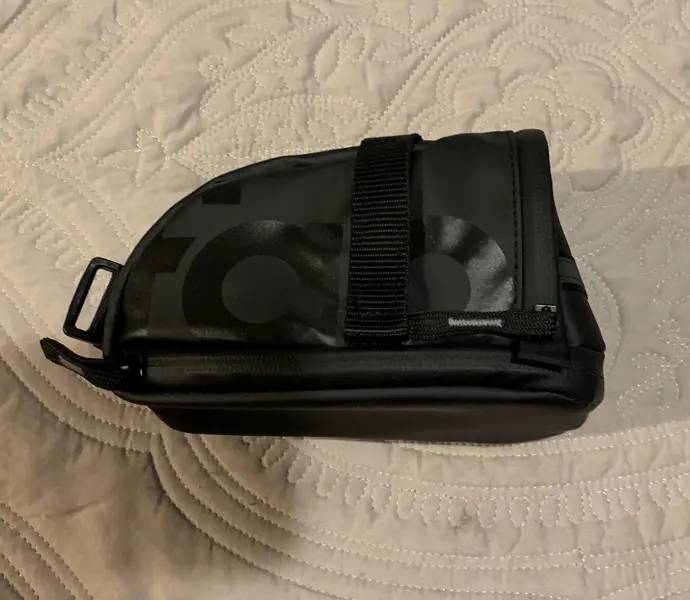

  • 10 Seatbag.jpg
    10 Seatbag.jpg
    413.8 KB · Views: 33

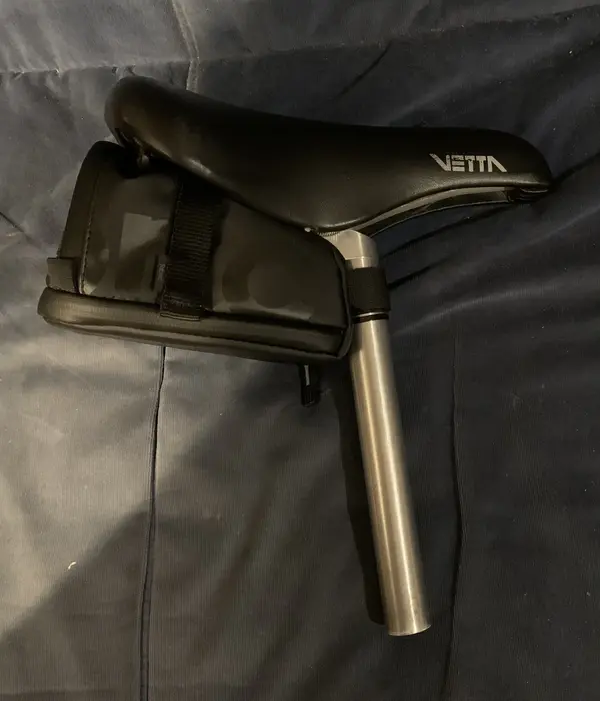

  • 11b Seat and Post Assembled.jpg
    11b Seat and Post Assembled.jpg
    488.7 KB · Views: 32

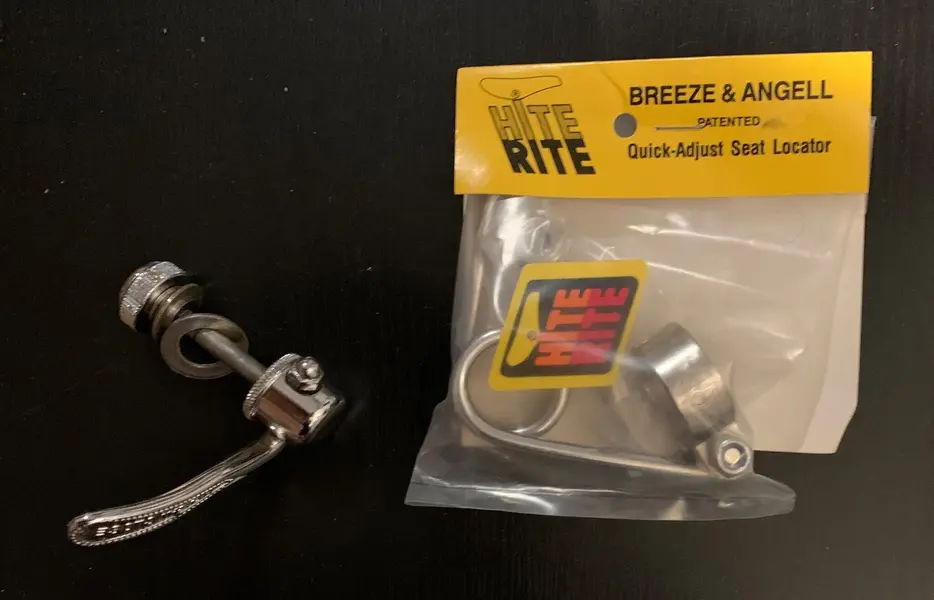

  • 12 Seatpost Clamp and Hiterite.jpg
    12 Seatpost Clamp and Hiterite.jpg
    372.3 KB · Views: 34

raidan73

Moderator
Retrobike Rider
BoTM Winner
Gold Trader
PoTM Winner
Kona Fan
Rocky Mountain Fan
Feedback
View
Really nice. Looking forward to seeing the progress. I have the pink one but, like yours, it’s likely a mid year as the spec is from the previous year to the colour


DrGooGoo

Devout Dirtbag

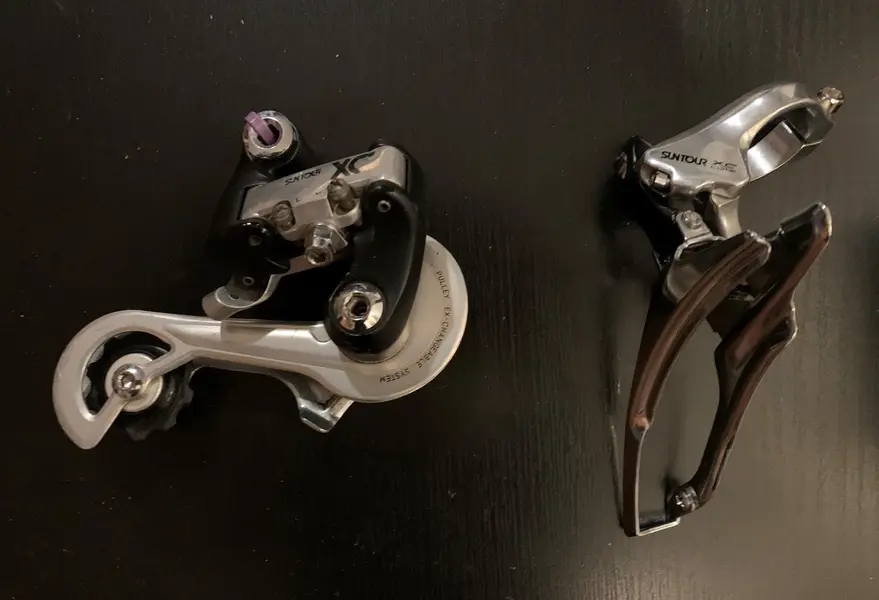

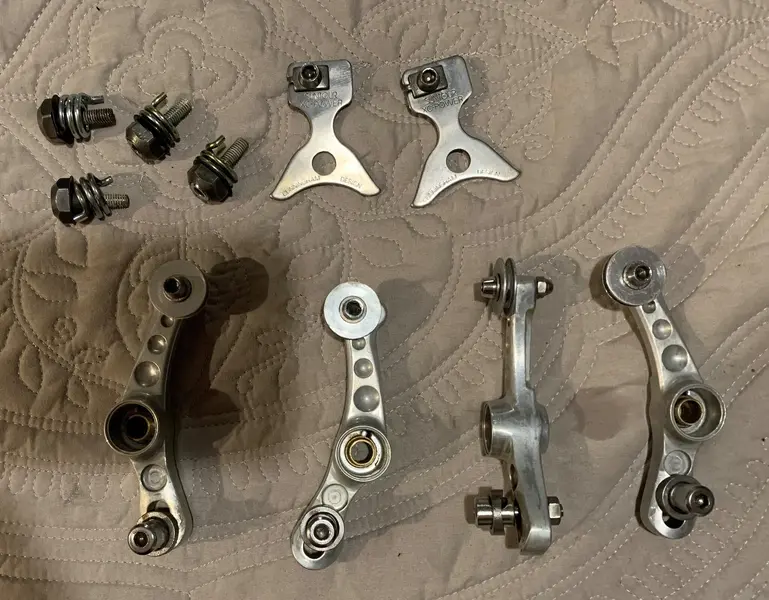

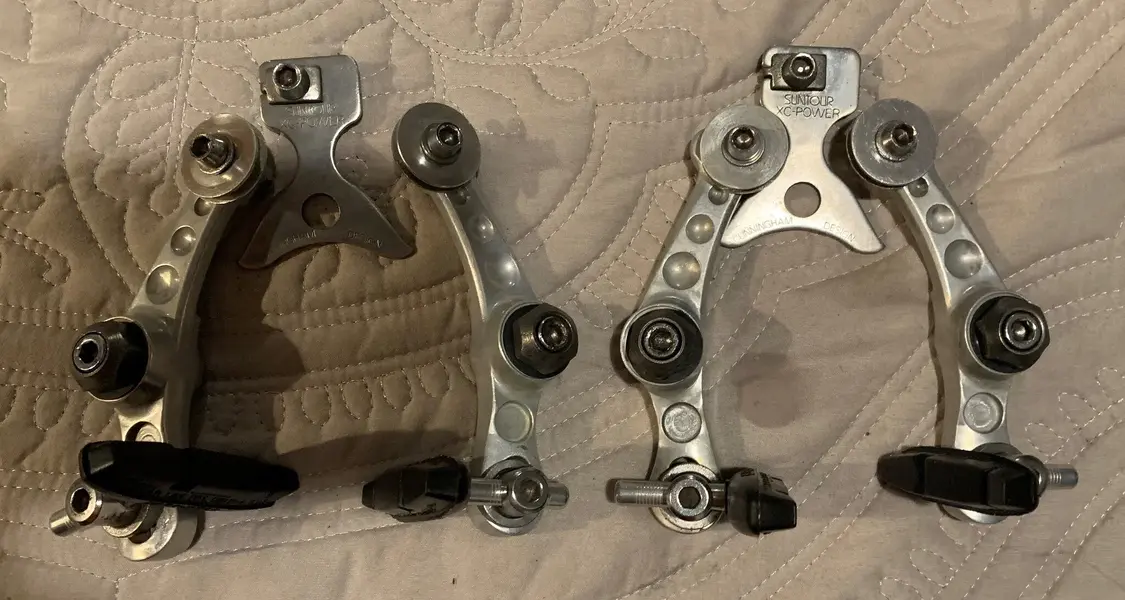

The Suntour XC Roller-Cam brake calipers that came with the frame cleaned up nicely. Also, I'm happy I have these Suntour XC derailleurs and generic cables that I purchased as extras from my previous build (the price was right at the time). The rear derailleur is an XC Pro and the front derailleur is an XC Comp.


Attachments

  • 13 Brakes Cleaned.jpg
    13 Brakes Cleaned.jpg
    648.6 KB · Views: 21
  • 14 Brake pads.jpg
    14 Brake pads.jpg
    595.5 KB · Views: 34
  • 15 Brakes Assembled.jpg
    15 Brakes Assembled.jpg
    442.3 KB · Views: 35
  • 17 Derailliurs.jpg
    17 Derailliurs.jpg
    350.5 KB · Views: 34

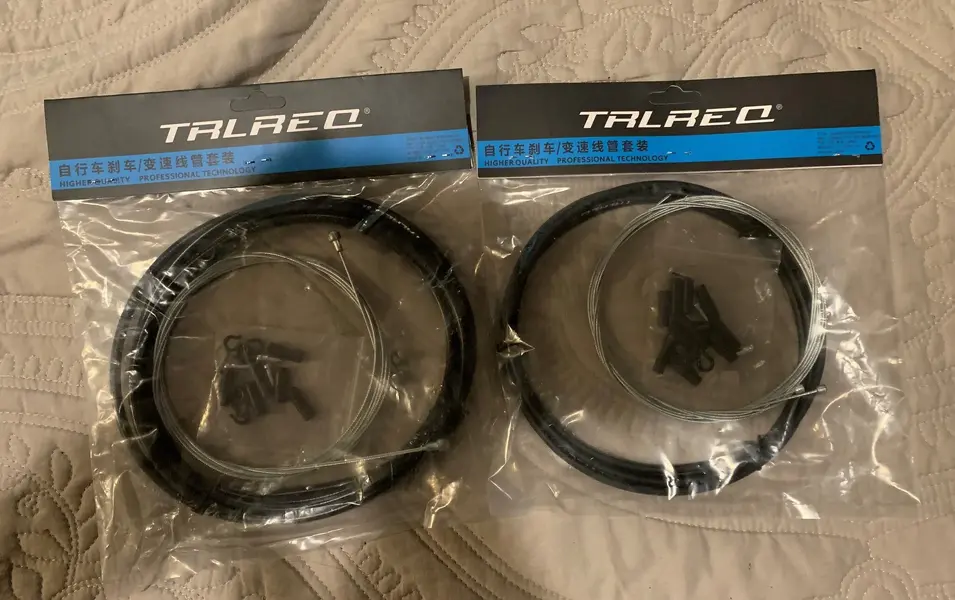

  • 16 Cables.jpg
    16 Cables.jpg
    393.5 KB · Views: 28

DrGooGoo

Devout Dirtbag
I was going to strip and repaint the frame myself with Spray.bike paint system, but decided to send it out for a professional paint job. I'm more mechanically inclined than artistic and want it done right. Also, if you for count larbor and buying strippers, primer, paint and topcoat I think it is a justified cost. Anyone who has painted a frame in their home shop will know the deal. The last frame I painted (years ago) took me three weeks.

Last edited:

DrGooGoo

Devout Dirtbag
More parts after polishing.

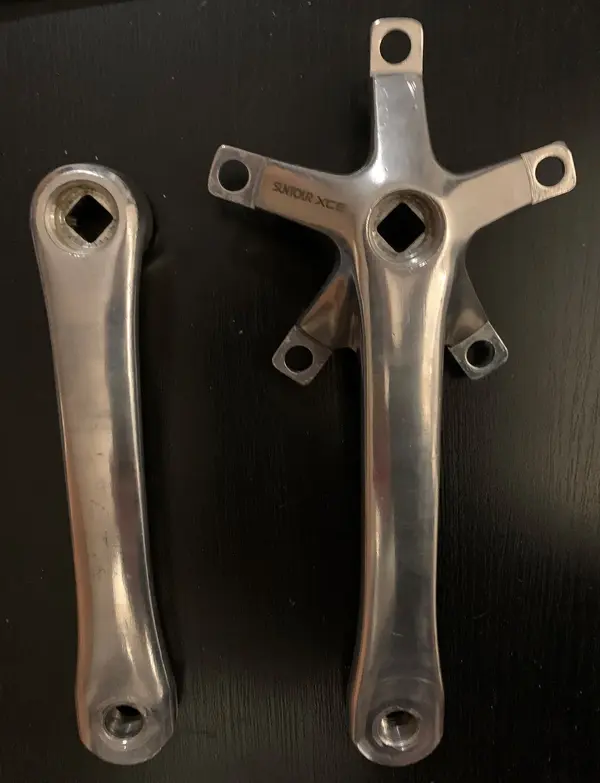

Suntour XC expert cranks and Suntour Power Rings!


Attachments

  • 18 Cranks.jpg
    18 Cranks.jpg
    398.4 KB · Views: 27

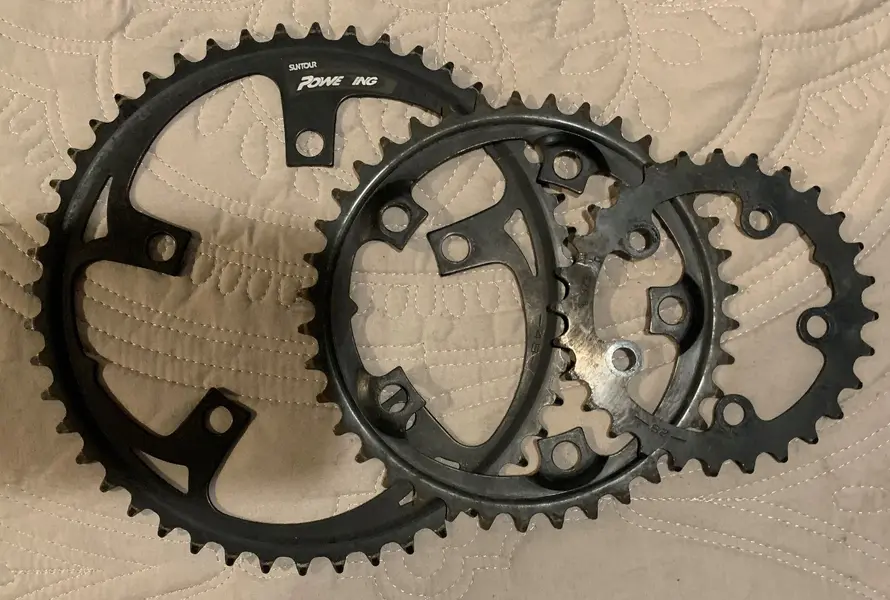

  • 19 Chainrings.jpg
    19 Chainrings.jpg
    488.5 KB · Views: 22

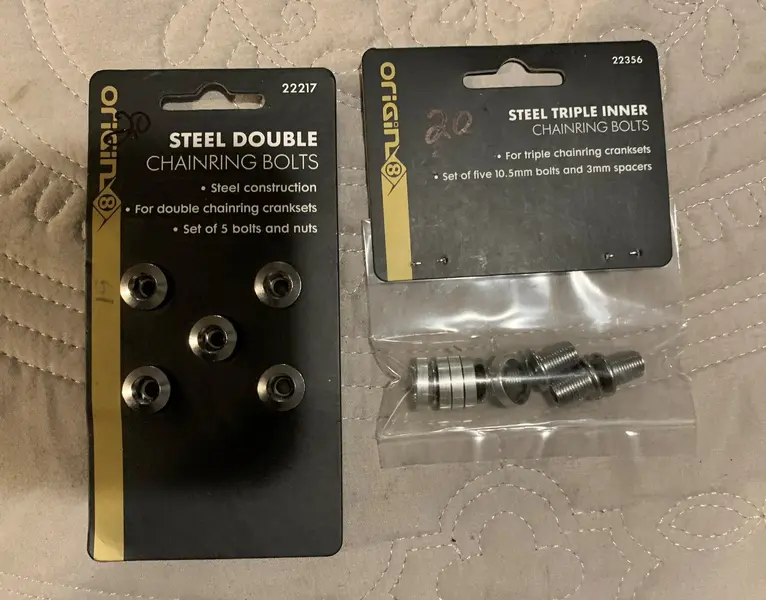

  • 20 Chainring bolts.jpg
    20 Chainring bolts.jpg
    511.1 KB · Views: 24
  • 21 Crankset Assembled.jpg
    21 Crankset Assembled.jpg
    628.8 KB · Views: 27

DrGooGoo

Devout Dirtbag
Small Bits!


Attachments

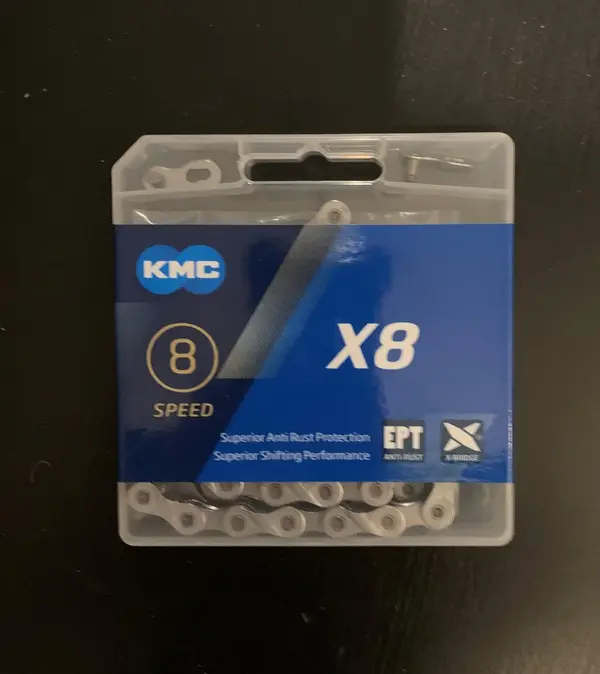

  • 17b Chain.jpg
    17b Chain.jpg
    441.2 KB · Views: 15
  • 22 Crank bolts and dust caps.jpg
    22 Crank bolts and dust caps.jpg
    756.8 KB · Views: 18
  • 23 Pedals.jpg
    23 Pedals.jpg
    539.6 KB · Views: 19
  • 24 Bottom Bracket.jpg
    24 Bottom Bracket.jpg
    471.6 KB · Views: 19

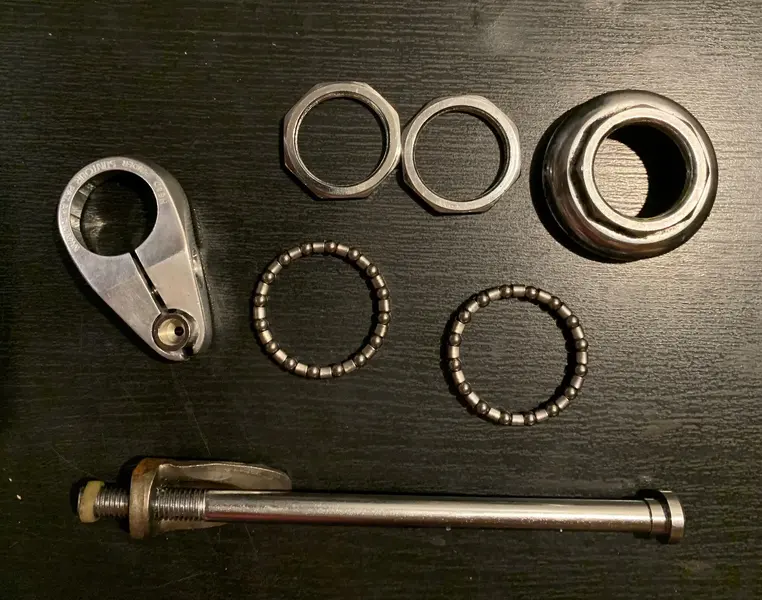

  • 25 Headset.jpg
    25 Headset.jpg
    654.1 KB · Views: 16
  • 3 frame cable router.jpg
    3 frame cable router.jpg
    730.7 KB · Views: 12

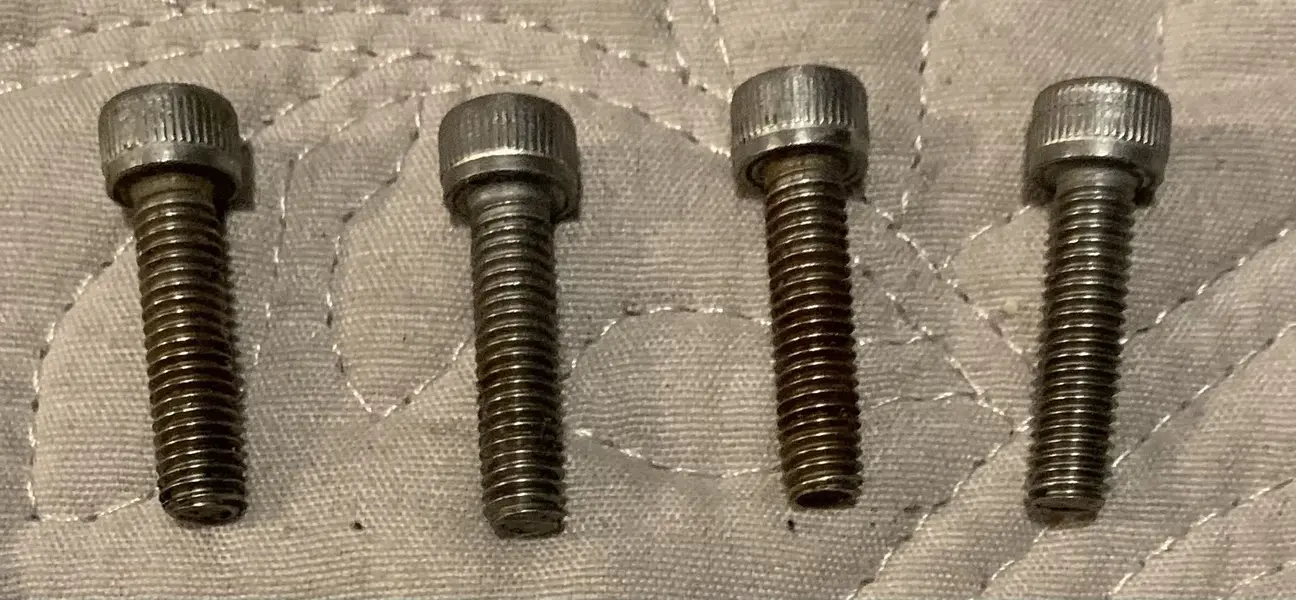

  • 36 Water Bottle Cage Bolts.jpg
    36 Water Bottle Cage Bolts.jpg
    509.4 KB · Views: 7

DrGooGoo

Devout Dirtbag

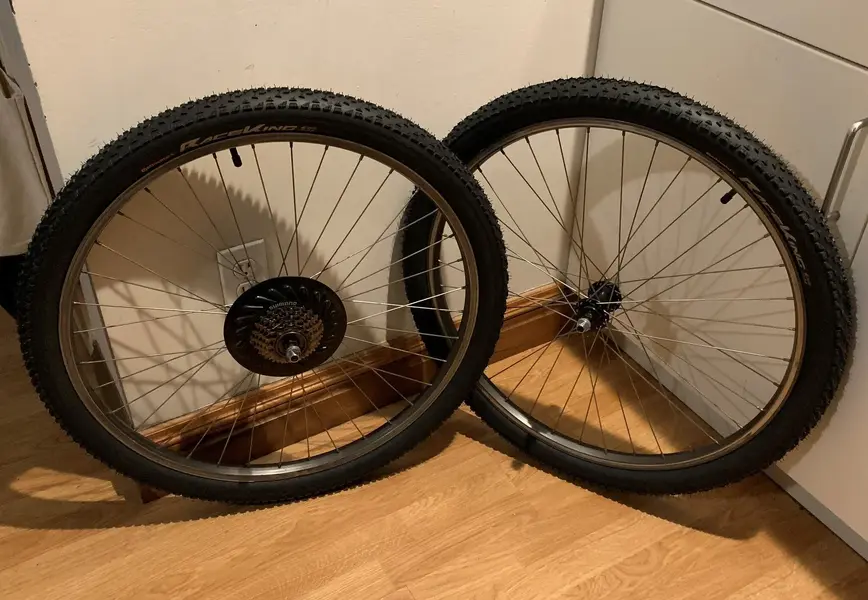

I had these Araya RX-7 wheels from another bike. They are a bit more narrow than the Araya RM-20's that this bike was originally spec'd with, but they are certainly stiffer and stronger. Hubs are Joytech from the early 90's from my parts bin. I had to decide between these or Shimano Deore DX, but I chose these because they were anodized black. Went with non-retro standard Shimano 7-speed freewheel for simplicity. Also, non-retro Continental Race King tires cause I like the way they ride on my other SM600 and I'm building this one to match.


Attachments

  • 33 Wheels preassembled.jpg
    33 Wheels preassembled.jpg
    681.6 KB · Views: 29
  • 34 Wheels Assembled.jpg
    34 Wheels Assembled.jpg
    462.2 KB · Views: 28

DrGooGoo

Devout Dirtbag
Accessories!
Just waiting for the frame and forks to come back from the paint shop.
I can't wait to assemble :) !


Attachments

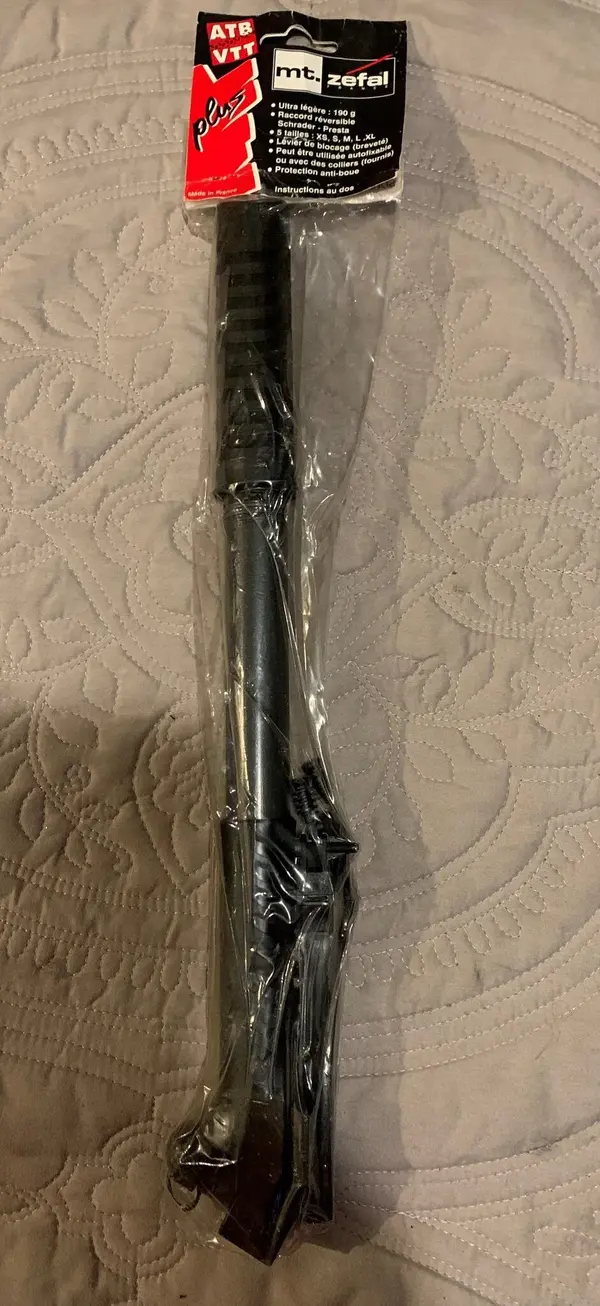

  • 35 Frame Pump.jpg
    35 Frame Pump.jpg
    363.4 KB · Views: 12
  • 38 Frame Wedge Bag.jpg
    38 Frame Wedge Bag.jpg
    529.5 KB · Views: 13
  • 39 Chainstay protector.jpg
    39 Chainstay protector.jpg
    525 KB · Views: 13

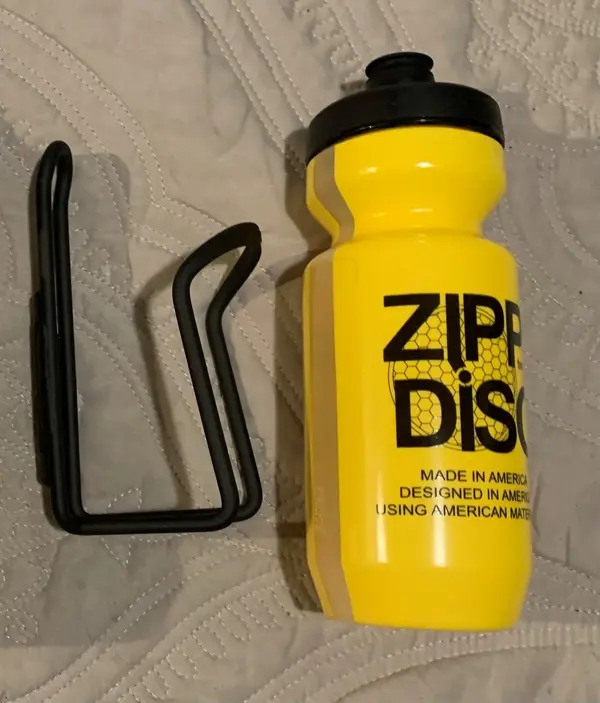

  • 37b Water Bottle and Cage.jpg
    37b Water Bottle and Cage.jpg
    382.5 KB · Views: 10
Last edited:

DrGooGoo

Devout Dirtbag

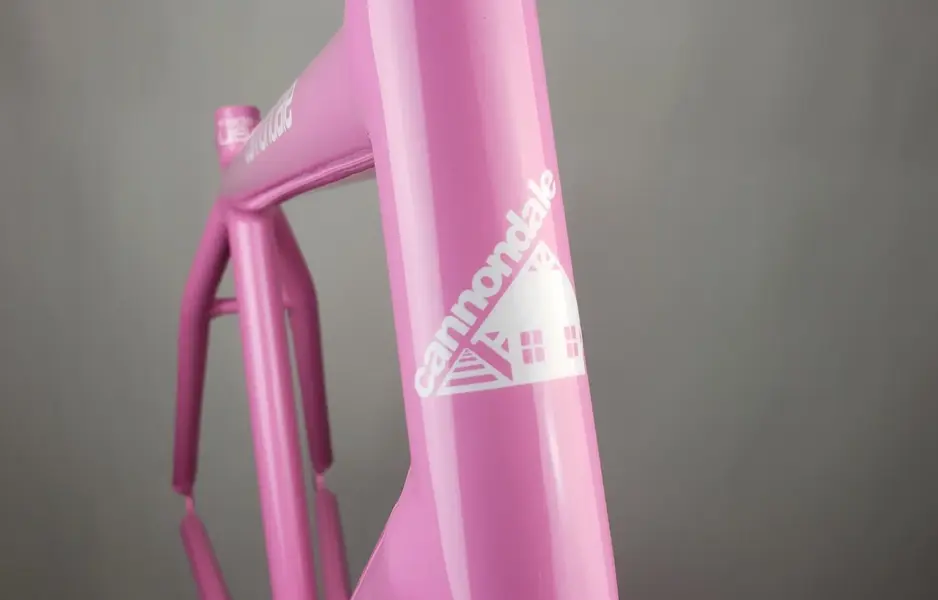

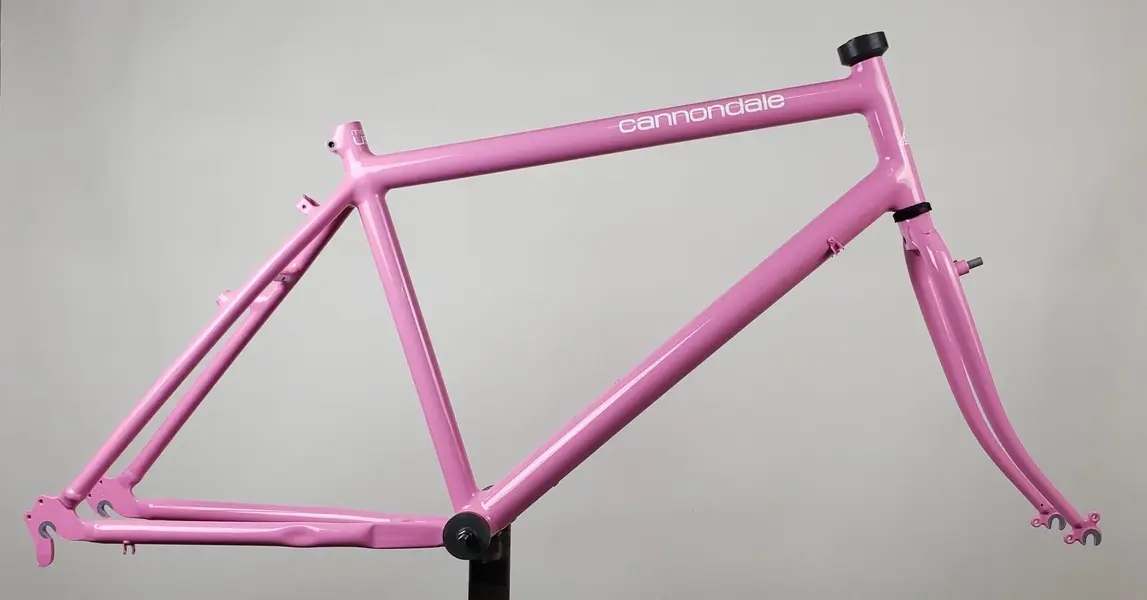

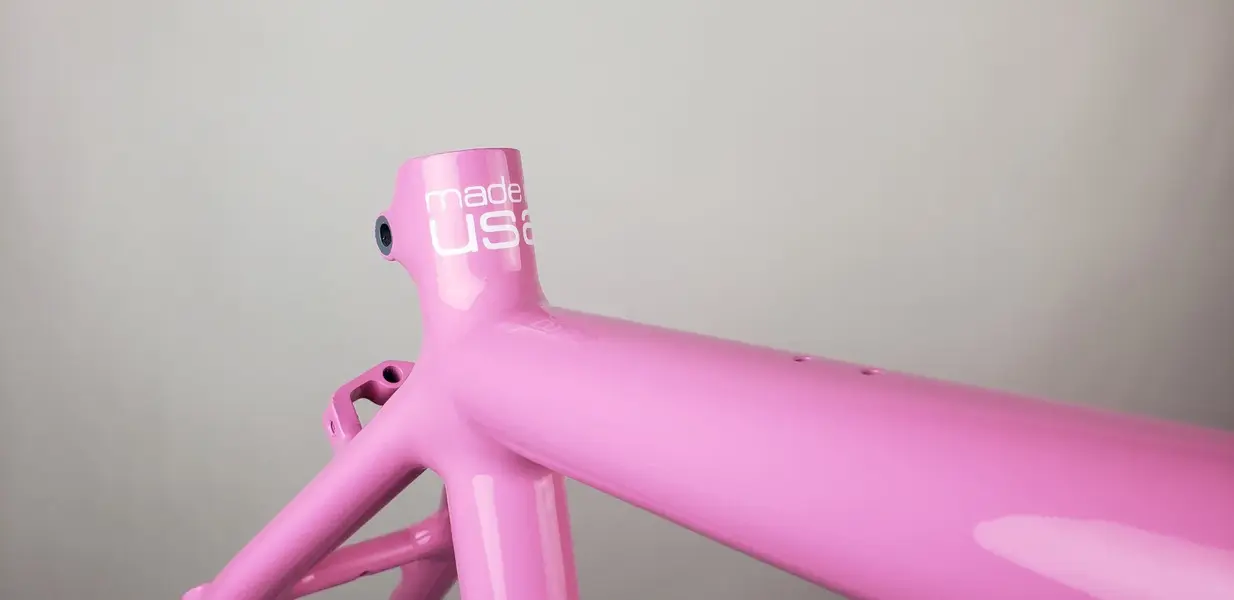

Pictures just arrived from the paint shop :)


Attachments

  • 20210528_155845-1.jpg
    142.7 KB · Views: 43
  • 20210528_140235.jpg
    103.9 KB · Views: 30
  • 20210528_140152.jpg
    114.8 KB · Views: 29
  • 20210528_140159.jpg
    89 KB · Views: 28
  • 20210528_155828.jpg
    176.7 KB · Views: 42
  • 20210528_155809.jpg
    132.3 KB · Views: 46
Last edited:
