Does anyone know the length and stroke of the rear shock on a 2006 Specialized Enduro Pro I'm sure it's a Fox DHX 5.0 air shock.

Cheers :)


ishaw

Gold Trader
GT Fan
Feedback
View
Re:

Have you got a pic of the frame? I've an s-works enduro from around that time that originally had a brain arrangement and spent a while looking for info on alternative shocks. Research suggested a non-standard stroke/i2i but alternative options were possible. The link on mine could be flipped which helped with the options.


RobMac

Moderator
Kona Fan
Feedback
View
Re:

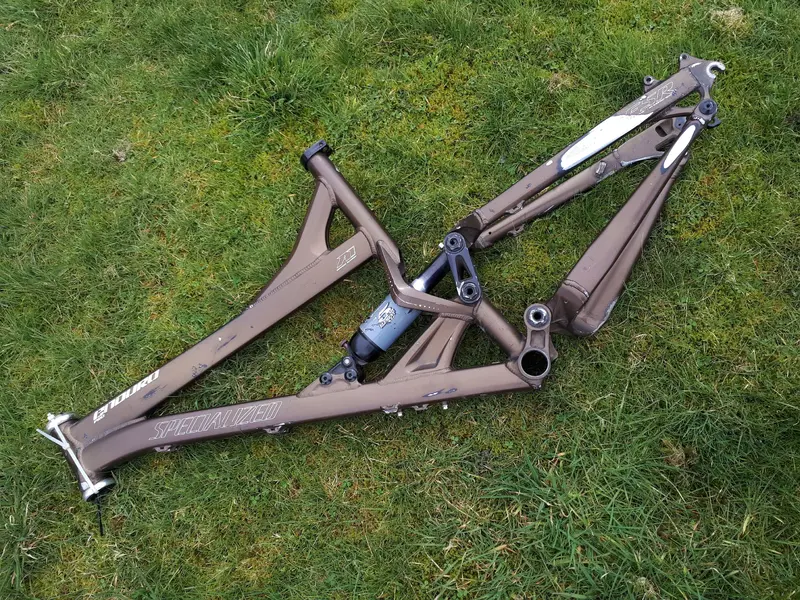

Here you go, its has a very worn Specialized shock on it at the moment.


Attachments

  • 20180407_123715.jpg
    10.3 MB · Views: 714

ishaw

Gold Trader
GT Fan
Feedback
View
Re:

That's a later version to mine so I can't help with exact measurements. I read somewhere that you measure stroke by letting the air out then measuring the shaft from can base to end. If you let me know what that is, plus the i2i I have a number of rear shocks so could have one that fits.


RobMac

Moderator
Kona Fan
Feedback
View
Re:

It's looking like 225mm iTi and 25mm stroke using that method.
But do keep in mind that's not the correct shock for the frame.
Are 5th Element shocks any Good?


ishaw

Gold Trader
GT Fan
Feedback
View
Re:

Maybe that method isn't right as 25mm stroke doesn't sound right to me.

I've not got anything in that i2i.

I don't think 5th element are too bad, not really used one in anger so no real experience.


Timoth27

Senior Retro Guru
Re:

Is the stroke not the amount the shock moves? If so measure it fully extended (i2i) then fully compressed, the difference = the stroke. I’m just guessing mind you so could be talking rubbish.


JonR

Retro Guru
Re:

8.5" shock with 2.5" stroke in specialized speak, or 215mm and 63mm in European.

I say that with absolute certainty but its not the case, I only remember those figures because I read a thread a few years back where a bloke was swearing at the design of his Enduro because he couldn't fit a shock with a reservoir in to the frame.


RobMac

Moderator
Kona Fan
Feedback
View
Re:

BTW the Fox DHX 5.0 air shock has a reservoir attached to it and that's the correct shock for the frame.
