PostPosted: Sun May 26, 2013 2:23 pm
retrobike rider
retrobike rider
User avatar

Joined: Sun Dec 18, 2011 10:42 pm
Posts: 2189
Location: milton keynes
Top job, this should be an inspiration to anyone whatever bike they like.


Top
 Profile

PostPosted: Sun May 26, 2013 3:10 pm
Gold Trader / PoTM Winner / RB Rider
Gold Trader / PoTM Winner / RB Rider
User avatar

Joined: Tue Feb 26, 2013 6:26 pm
Posts: 16943
Location: 54 Festive Road Winchcombe GLOUCS Yarp...
Time to get polishing mops for my lathe! Amazing to see how well you've done with those guards.


Top
 Profile

PostPosted: Mon May 27, 2013 11:21 am
Dirt Disciple
User avatar

Joined: Thu May 23, 2013 5:08 pm
Posts: 33
I got the frame up in the vice with soft jaws, using the rear forks to true the new wheel. this stage I was just going round all the nipples putting half turns on to tension them up slowly

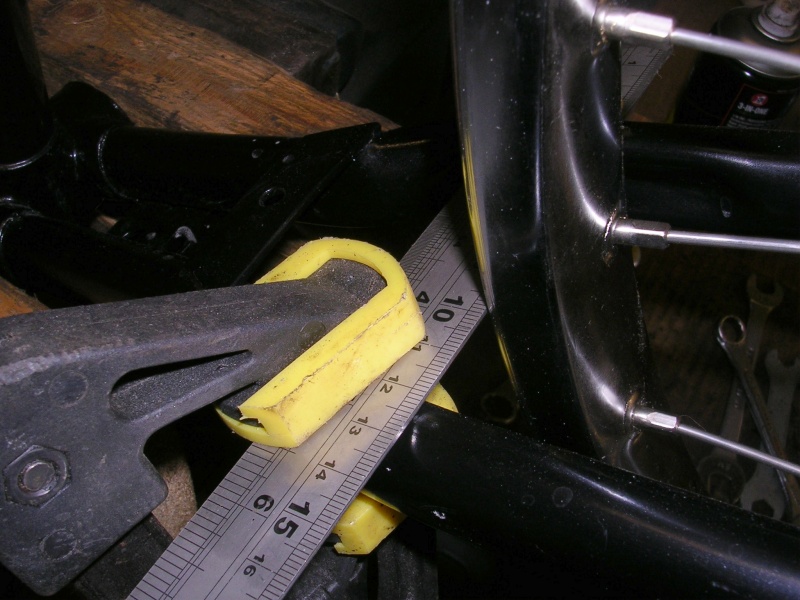

heres the asda value method I used to true the wheel, worked out that including the rim thickness it was bang on 20mm either side to the frame, so I clamped a straight edge across the gap and watch the wheel wander off of the 10mm mark, then tweak the nipples (fnar fnar) to pull the rim whichever way required

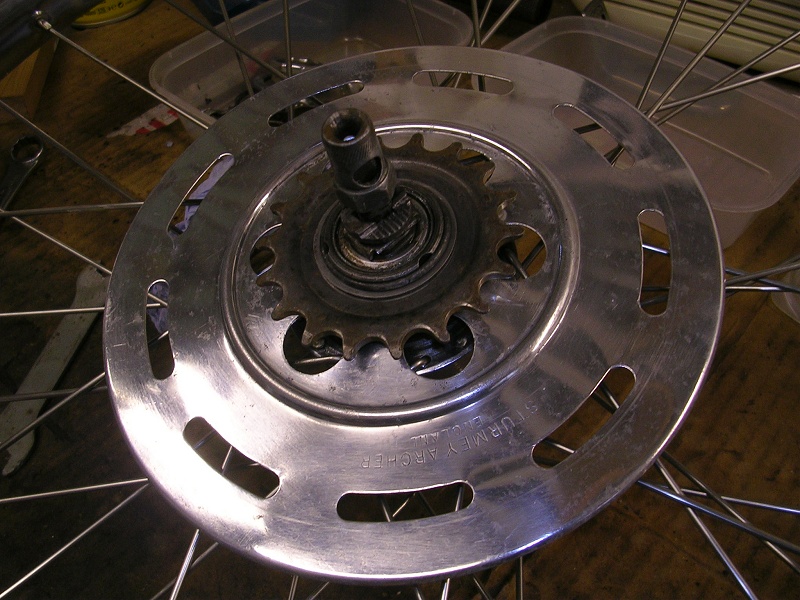

with that done I fitted the chain guard and sprocket back on. I noticed the sprocket is dome shaped, can anyone confirm the concave side points outward as in my picture? can anyone also confirm whether the thicker shim goes behind the sprocket or thinner ? anyway I tried the sprocket with the concave side pointing to the hub and the chain would be running on the guard.

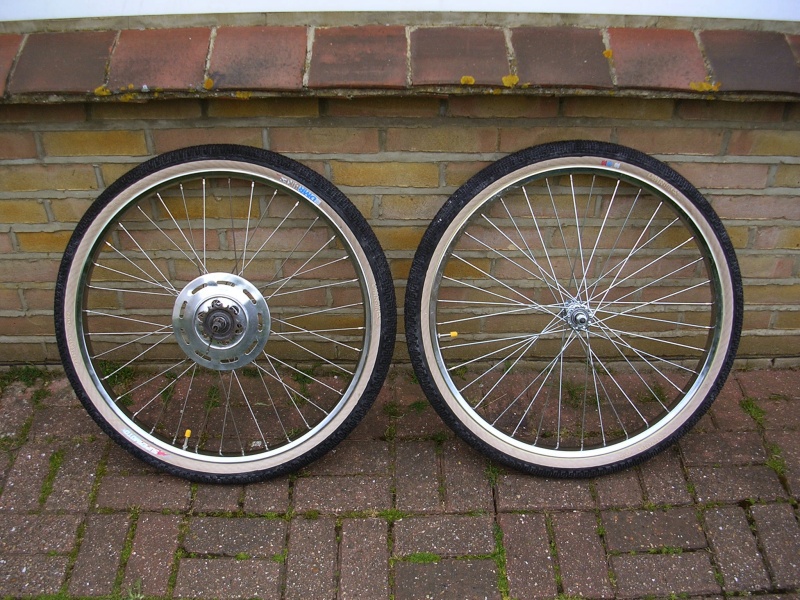

then checked the bearings on the untouched new front wheel, all nice and greased so set the bearings back up. then was able to dress the wheels up :D

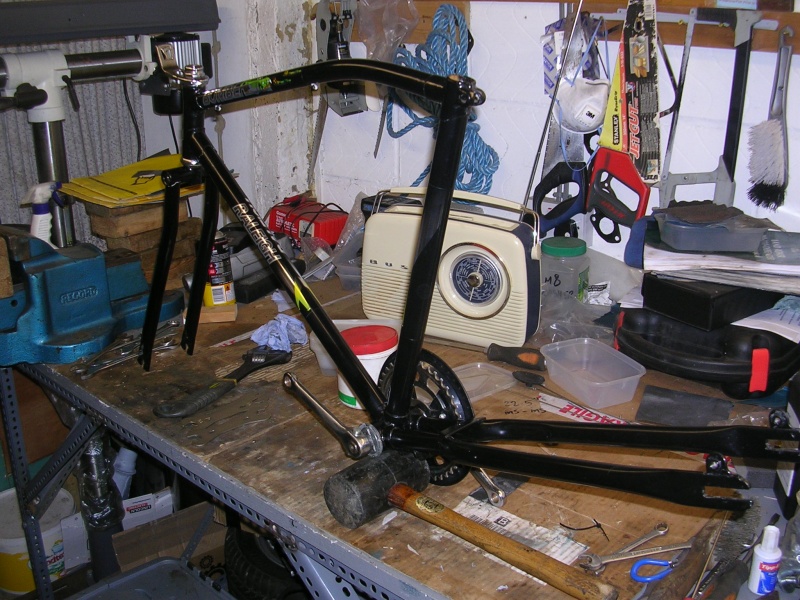

last picture here ive carefully reassembled the crank set (or bottom bracket I think you guys call it) and the head set, also fitted the crank arms and new cotter pins



Top
 Profile

PostPosted: Tue May 28, 2013 8:49 pm
Dirt Disciple
User avatar

Joined: Thu May 23, 2013 5:08 pm
Posts: 33
still dont have the new saddle cover (and brake blocks not fitted) but, drum roll and mini fanfare !




Top
 Profile

PostPosted: Tue May 28, 2013 8:52 pm
Gold Trader / PoTM Winner / RB Rider
Gold Trader / PoTM Winner / RB Rider
User avatar

Joined: Tue Feb 26, 2013 6:26 pm
Posts: 16943
Location: 54 Festive Road Winchcombe GLOUCS Yarp...
Can you hear applause !


Top
 Profile

PostPosted: Wed May 29, 2013 9:32 am
retrobike rider / Gold Trader
retrobike rider / Gold Trader
User avatar

Joined: Mon Apr 05, 2010 8:38 am
Posts: 2679
Location: Norfolkshire
Thats a beauty, but i fear the front stem is a tad to high? I seem to remember BITD us dropping them down so they didnt bend?

Great build thread and hatsoff to your efforts 8)


Top
 Profile

PostPosted: Wed May 29, 2013 10:38 am
Dirt Disciple

Joined: Tue Jan 08, 2013 3:37 am
Posts: 55
Location: Christchurch, New Zealand
Top marks, I wish I had your dedication with all the polishing.
I remember my mate had one of these, we thought it was ace. I think we painted it yellow with wood gloss.


Top
 Profile

PostPosted: Wed May 29, 2013 11:14 am
Dirt Disciple
User avatar

Joined: Thu May 23, 2013 5:08 pm
Posts: 33
lol thanks all :)

fair comment on the stem, think you've just answered how the top of the steering tube got bent on so many of these ! i just set it on the max line as i'm quite tall, mental note though thanks !


Top
 Profile

PostPosted: Wed May 29, 2013 6:19 pm
Gold Trader / MacRetro rider
Gold Trader / MacRetro rider

Joined: Sun Sep 04, 2011 11:33 am
Posts: 3098
Location: Riding my Woodsie.
Great work and great write up darren. 8)

It is interesting seeing the construction of this frame and forks compared to what was to come later. I'm not sure I would want to ride one with any gusto, but love the resto job you have done regardless. :mrgreen:


Top
 Profile

PostPosted: Wed May 29, 2013 8:31 pm
Dirt Disciple
User avatar

Joined: Thu May 23, 2013 5:08 pm
Posts: 33
i'm reading between the lines, are you saying 1/4" bolts holding slender seat stays to chain stay, horizontal drop outs, blades butt welded to the crown on the forks, might not be very durable :lol:


Top
