First bike posed for the New Year??? :D

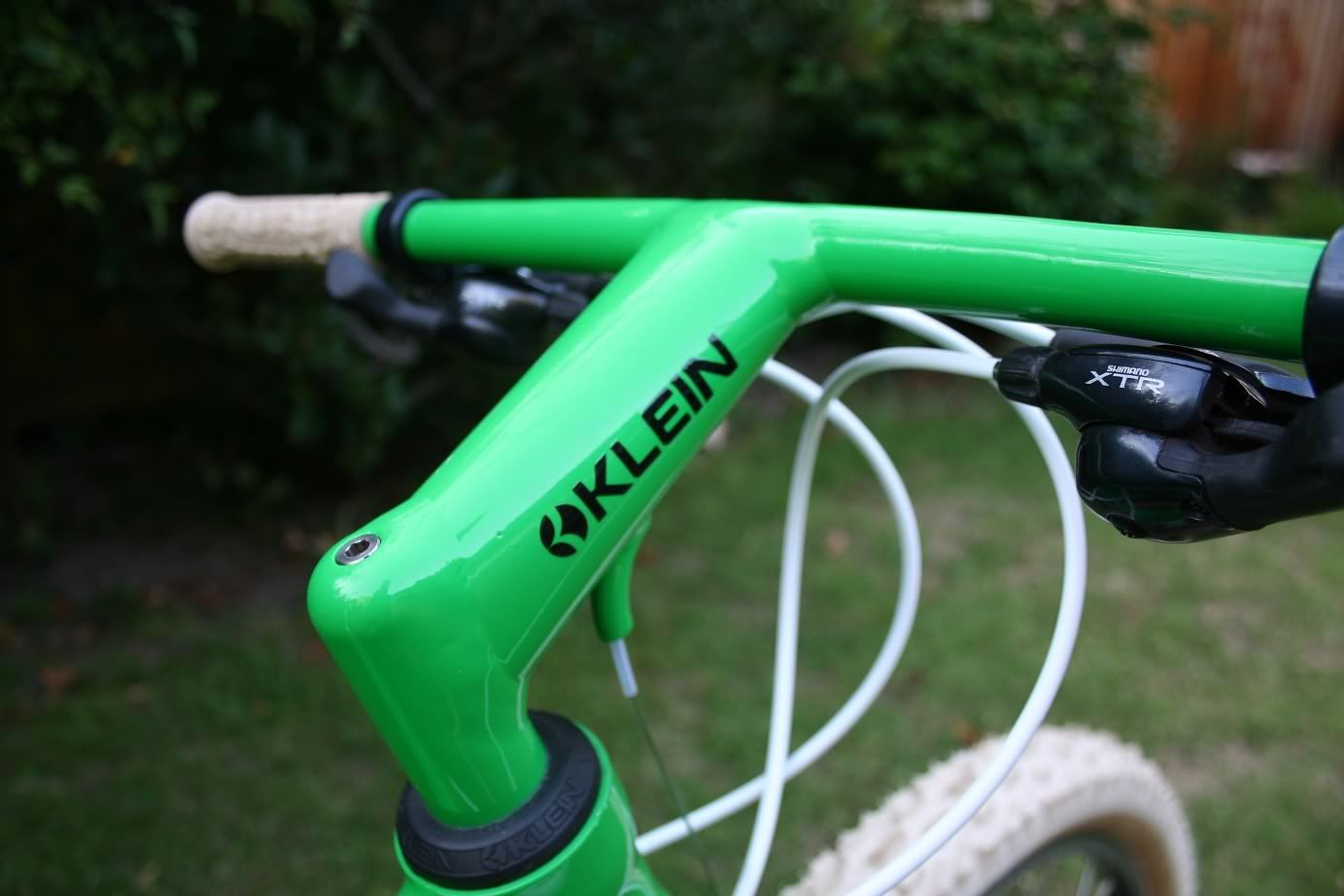

Got this little beast in pretty poor shape but now it's had a full professional restoration, resplendant with some nice Jonrock decals & a Paconi respray:


Frame: '90 (or was told maybe '91?) Klein Attitude, XS, Dolomite

Fork: Klein Attitude 1.5"

Headset: Cartridge bearing
Stem: Klein Mission Control 1.5"
Handlebar: Klein Mission Control 1.5"
Grips: Panaracer Magic (NOS)

Brakes: M900 XTR
Brake Pads: M900 XTR
Brake Cables: Shimano SLR
Cantilever cable hangers: Shimano Z-link
Brake Levers: M900 STI

Shifters: M900 STI
Front Derailleur: M900 31.8 down-pull
Rear Derailleur: M900
Derailleur Cables: Shimano XT SIS
Cassette: M900 12-32 (NOS)
Chain: Shimano HG-91 (NOS)
Cranks: Topline 175mm
Crank Bolts: Cr-mo withSRP anodized caps
Chainrings: M900 XTR 26, 36, 46
Chainring bolts: M900 XTR
Bottom Bracket: Cartridge bearing
Pedals: N/A

Hub Skewers: Roval Ti
Rims: Mavic M231 HA, 32h
Hubs: Nukeproof carbon (8s cassette rear), 32h
Nipples: DT Brass
Spokes: DT Competition 20./1.8/2.0
Tyres: Panaracer Magic 2.1 Rear & Magic 2.1 Front
Tubes: Kenda presta

Saddle: Vetta SL, leather cover, manganese rails
Seatpost: Kalloy 27.2 x 400 (NOS)
Seatpost Binder: Alloy QR

Weight:21.9lb! (w/o pedals)



Last edited by Arran on Mon Jan 02, 2012 3:11 am, edited 1 time in total.

Top
 Profile

 Post subject:
PostPosted: Sat Dec 31, 2011 2:25 pm
Retro Guru
User avatar

Joined: Mon Aug 01, 2011 7:17 am
Posts: 1219
Location: Northants
May i be the first to say that's a very nice bike, but i guess you already knew that 8) oh and happy new year though i have to wait a few more hours to crack open the bubbly :lol:


Top
 Profile

 Post subject:
PostPosted: Sat Dec 31, 2011 2:46 pm
retrobike rider
retrobike rider
User avatar

Joined: Tue Aug 23, 2011 3:35 pm
Posts: 434
Location: Derby, UK
Very nice bike, looks lovely 8)


Top
 Profile

 Post subject:
PostPosted: Sat Dec 31, 2011 3:41 pm
Dirt Disciple

Joined: Fri Dec 30, 2011 1:50 pm
Posts: 20
Location: Minnesota
A great looking bike. It looks too pretty to ride. Love the paint job and perhaps looks better than new.


Top
 Profile

 Post subject:
PostPosted: Sat Dec 31, 2011 4:12 pm
retrobike rider / Gold Trader
retrobike rider / Gold Trader

Joined: Sat Oct 11, 2008 11:34 am
Posts: 3818
Location: Sussex
Thats an amazing transformation if its the one with the multiple cracks in and massive sunfade, good job 8)


Top
 Profile

 Post subject: klein
PostPosted: Sat Dec 31, 2011 8:10 pm
Retro Guru
User avatar

Joined: Wed Dec 30, 2009 9:19 am
Posts: 461
Location: The Netherlands
Stunning 8) !

But as it is a restoration do you have a before pic? Just always interested in the work that's been done..

Cheers,
Renzo


Top
 Profile

 Post subject:
PostPosted: Sat Dec 31, 2011 9:19 pm
MacRetro rider
MacRetro rider
User avatar

Joined: Sat Jan 05, 2008 11:58 pm
Posts: 4434
Location: Third stone from the sun.
Superb 8) , bet it looks even more stunning in the flesh than in the pics.


Top
 Profile

 Post subject:
PostPosted: Sat Dec 31, 2011 9:25 pm
Dirt Disciple

Joined: Fri Dec 30, 2011 1:50 pm
Posts: 20
Location: Minnesota
There must be a way to paint the bike without making it look too modern so that retro look is preserved. The powder coating method may solicit that look.


Top
 Profile

 Post subject: Re: klein
PostPosted: Sat Dec 31, 2011 11:17 pm
Retro Guru
User avatar

Joined: Sat Sep 09, 2006 6:00 am
Posts: 920
Location: Melbourne, Australia
kleinrenzo wrote:
Stunning 8) !

But as it is a restoration do you have a before pic? Just always interested in the work that's been done..

Cheers,
Renzo


Thanks for the kind words Fellas. The resto has been quite a labour of love. I picked up the frameset (incl. MC) in quite a poor state. It was as faded as i've seen an Attitude, with a crack at the keyhole on the rear of the seat tube & 4 suspected cracks on the mitres of the fork.

I had a go at removing the paint from the frame, fork & MC myself but it was so ridiculously hard that I ended up sending it off for a chemical peel. There was no solid evidence of any cracking once the paint on the fork was removed, just discolouration of the alloy but I had a bead of weld run over the areas as a precautionary measure. The parts received a light sand blast to better adhere the paint & to take away any scratches etc. Then I sanded & 'bogged' the welds on the fork & keyhole before the frame was resprayed. I added the decals before the clear coating process. Very happy with the end result.

Here's a 'before' pic:


Top
 Profile

 Post subject: klein
PostPosted: Sat Dec 31, 2011 11:30 pm
Retro Guru
User avatar

Joined: Wed Dec 30, 2009 9:19 am
Posts: 461
Location: The Netherlands
Was indeed wondering if it was that Attitude.. :wink:

But indeed some very serious restoration and the result is top!!
