Ever since my daughter keeled over on the Peugeot earlier this year (blame the clipless pedals) the gear changes have not been the same. I tried a few times to rectify the problem but the SIS gear changes were never quite as crisp as they used to be so I decided that apart from a buckled wheel which I had repaired, something must have gotten bent.

I decided to purchase a couple of tools to assist in my plight for perfectly smooth Shimano 105'ness gear changes

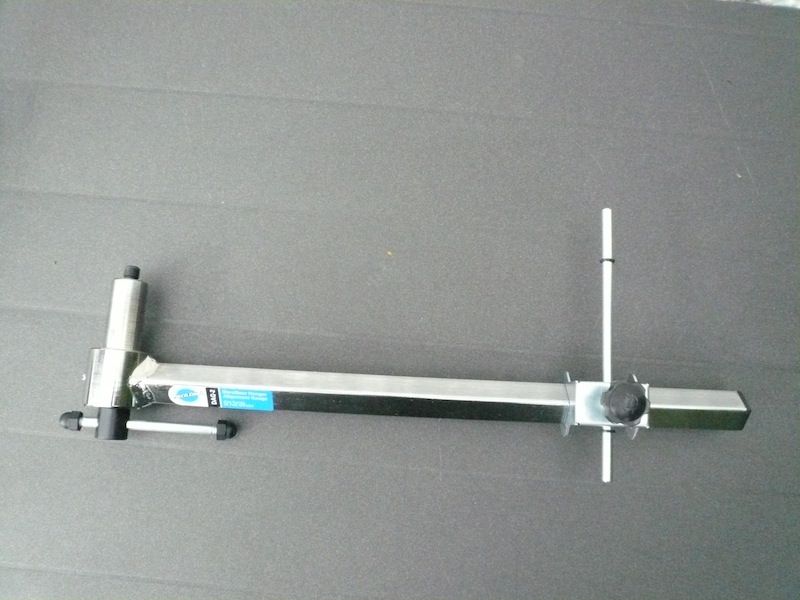

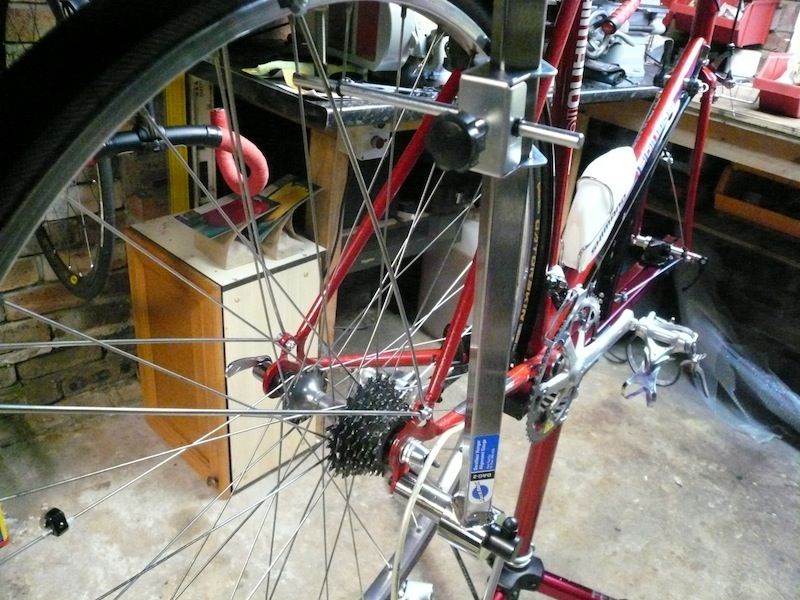

Firstly I bought a Park Tools derailleur hanger alignment gauge (DAG-2), this was set up and showed the hanger to be out by quite a bit, so after resetting the hanger things improved but it still wasn't perfect

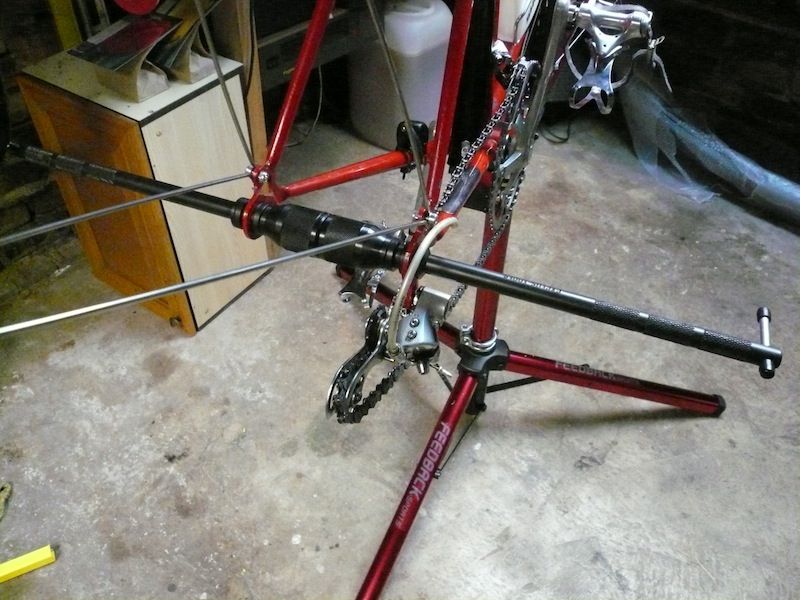

I then bought a Cyclus Drop Out Alignment tool (less than half the price of the equivalent Park Tools FFG-2)

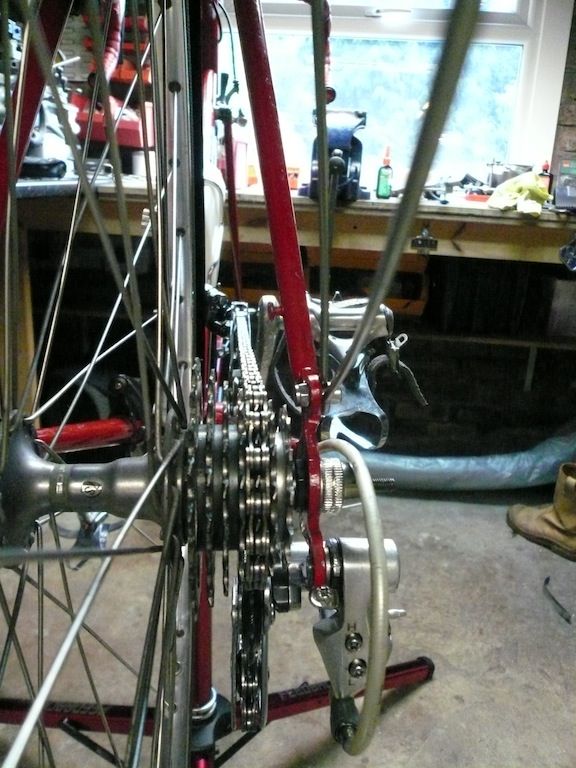

So this morning I set up the Cyclus and it showed the rear dropouts were indeed out by a few mm, after a bit of frame bending it was looking much better

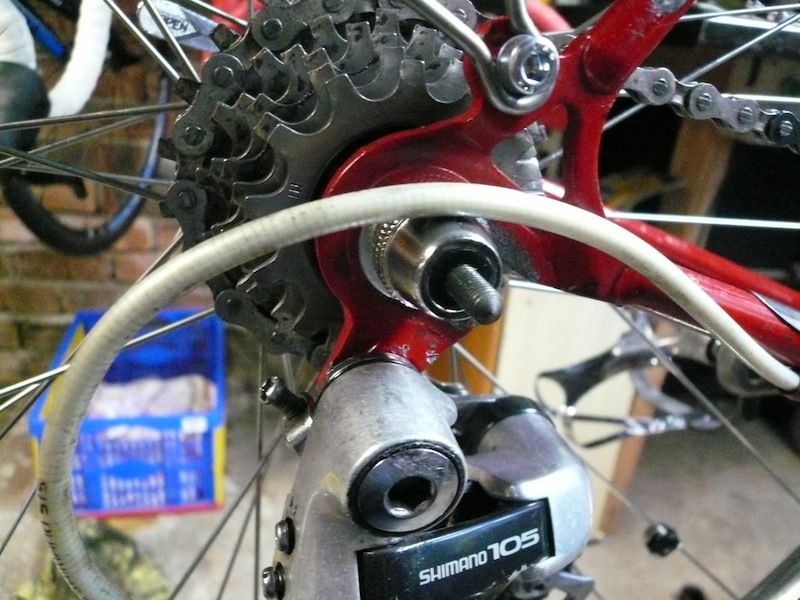

So I refitted the wheel and reset the hanger again


I adjusted the derailleur and it is now working as it should, so I will have the Peugeot for a while longer


Top
 Profile

PostPosted: Thu Oct 17, 2013 2:21 pm
Retro Guru
User avatar

Joined: Wed Apr 25, 2012 2:08 pm
Posts: 2185
Location: Shrewsbury
As my wife always says, you've got to have the right tool for the job :)


Top
 Profile

PostPosted: Thu Oct 17, 2013 5:49 pm
Retro Guru
User avatar

Joined: Tue Jul 20, 2010 8:22 am
Posts: 2075
Location: Warks
Robbied196 wrote:
As my wife always says, you've got to have the right tool for the job :)

:oops:


Top
 Profile

PostPosted: Sat Oct 19, 2013 12:18 am
Retro Guru
User avatar

Joined: Tue Mar 23, 2010 11:24 am
Posts: 335
Location: Denmark
You will be gutted if you ever try the Drop out tools on a modern carbon frame, they are never in line. A while back I did that to a McLaren Venge from specialized, 5mm out of alignment...


Top
 Profile

PostPosted: Sat Oct 19, 2013 10:26 pm
Retro Guru
User avatar

Joined: Fri Mar 12, 2010 11:24 am
Posts: 354
Location: London
Now I am intrigued, can a modern carbon frame actually be realigned in the same way ? I assume not , or am I wrong ?


Top
 Profile

PostPosted: Sat Oct 19, 2013 11:06 pm
Old School Grand Master
User avatar

Joined: Fri Oct 14, 2011 8:41 pm
Posts: 8226
Location: Cumbria
Not as far as I am aware.........how it comes out of the oven, that's it !

The Cycling mags give a score to the geometry when they test them.

Shaun


Top
 Profile

PostPosted: Mon Oct 21, 2013 1:32 am
Old School Grand Master
User avatar

Joined: Sat Oct 06, 2012 5:17 pm
Posts: 3775
Location: Norn Iron
Very interesting Mr Bond,

So to carry out the checks and modification - both tools are required - and in your case, the hanger was out of alignment, as were the dropouts. Does the Park tool adjust the hanger alignment? How did you 'reset' it?

And a further nosey question - can the dropout alignment tool be used to increase/decrease rear spacing ie spread 126mm to 130mm etc?

Thanks,

Richard
